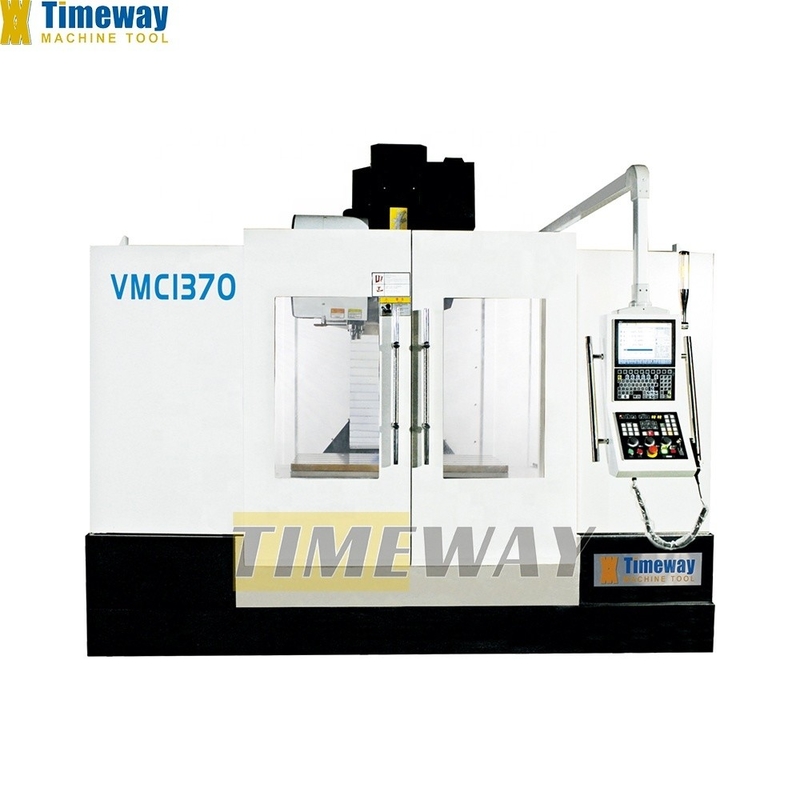

Metal Milling VMC1370 Vertical Machine Center with 5 T-Slots and Spindle Bore
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2600x3100 Mm | Weight (T): | 10000 KG |
| Table Size (mm): | 1360x700 | CNC Control System: | FANUC |
| Table Travel (X) (mm): | 1300 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 700 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Range Of Spindle Speed(r.p.m): | 1 - 6000 R.p.m |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 1 - 1000 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | Other |
| Cutting Torque: | 11.5 N.m | Rapid Feed Speed(mm/min): | 1 - 15000 Mm/min |
| Worktable Size (LxW): | 1360x700 Mm | T-slot (No./width/pitch): | 5/18/152.5 Mm |
| Loading Capacity: | 1200 Kg | Longitudinal Travel (X): | 1300 Mm |
| Cross Travel (Y): | 700 Mm | Vertical Travel (Z): | 700 Mm |
| Distance From Spindle Nose To Table: | 140 Mm | Distance From Spindle Center To Column: | 785 Mm |
| Spindle Speed: | 6000 Rpm | ||
Product Description
Product Description
Specification
Specification | VMC1370 |

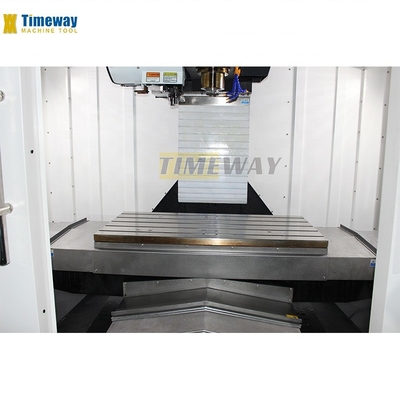

Worktable size (LxW) | 1360x700 mm |
T-slot (No./width/pitch) | 5-18-152.5 mm |
Loading capacity | 1200 kg |
Longitudinal travel (X) | 1300 mm |
Cross travel (Y) | 700 mm |
Vertical travel (Z) | 700 mm |
Distance from spindle nose to table | 140-840 mm |
Distance from spindle center to column | 785 mm |
Spindle taper | BT-50(155) |
Spindle speed | 6000 rpm |
X/Y/Z-axis rapid feed speed | 15/15/15 m/min |
X/Y/Z-axis servo motor (FANUC) | β22/β22/β30 |
X/Y/Z-axis positioning accuracy | ±0.01 mm |
X/Y/Z-axis repositioning accuracy | ±0.008 mm |
Main motor power | 15/18.5 kw |
Air pressure source | 6-8 kg/cm2 |
Power capacity | 30 Kva |

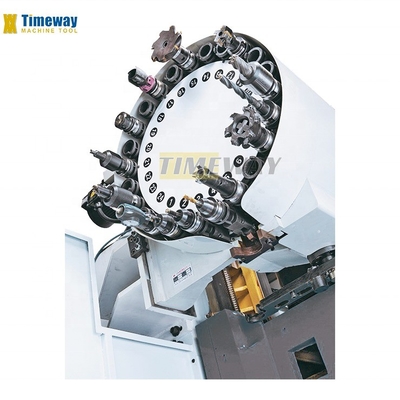

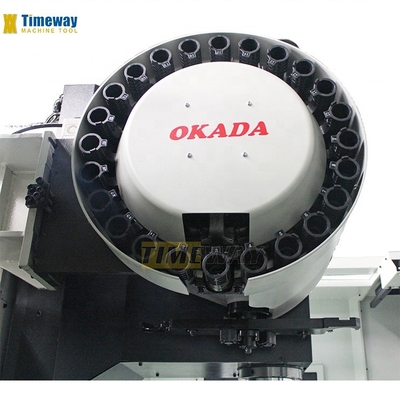

Tool magazine capacity | 24 disc |
Guideway type | Sliding |
Machine weight | 10000 kg |
Machine dimensions (LxWxH) | 3820×2600×3100 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
