Steel Production Vertical Machining Center with GSK Controller and 450mm Vertical Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,980.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2400*1900*2400 Mm | Weight (T): | 3500 KG |
| Table Size (mm): | 1000x420 | CNC Control System: | GSK |
| Table Travel (X) (mm): | 700 | Table Travel (Y) (mm): | 450 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | ±0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m |
| Max. Table Load(kg): | 400 Kg | Feed Speed(mm/min): | 0 - 15 Mm/min |
| Min. Time Of Tool Change(s): | 0.6 | Tool Magazine Capacity: | 12 |
| Key Selling Points: | Multifunctional, Competitive Price, High Safety Level, High-accuracy | Warranty: | 1 Year |
| Voltage: | 220/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 80 | Cutting Torque: | 456 N.m |
| Rapid Feed Speed(mm/min): | 0 - 15 Mm/min | Product Name: | CNC Vertical Machining Center |
| Machine Type: | Vertical CNC Milling Machine | CNC Or Not: | Normal |
| Processing: | Metal Cutting | Control System: | GSK/FANUC/SIEMENS |
| Longitudinal Travel (X): | 700mm | Cross Travel (Y): | 450mm |
| Vertical Travel (Z): | 450mm | Loading Capacity: | 400kg |
| Worktable Size (LxW): | 1000*420mm | ||
Product Description
Products Description

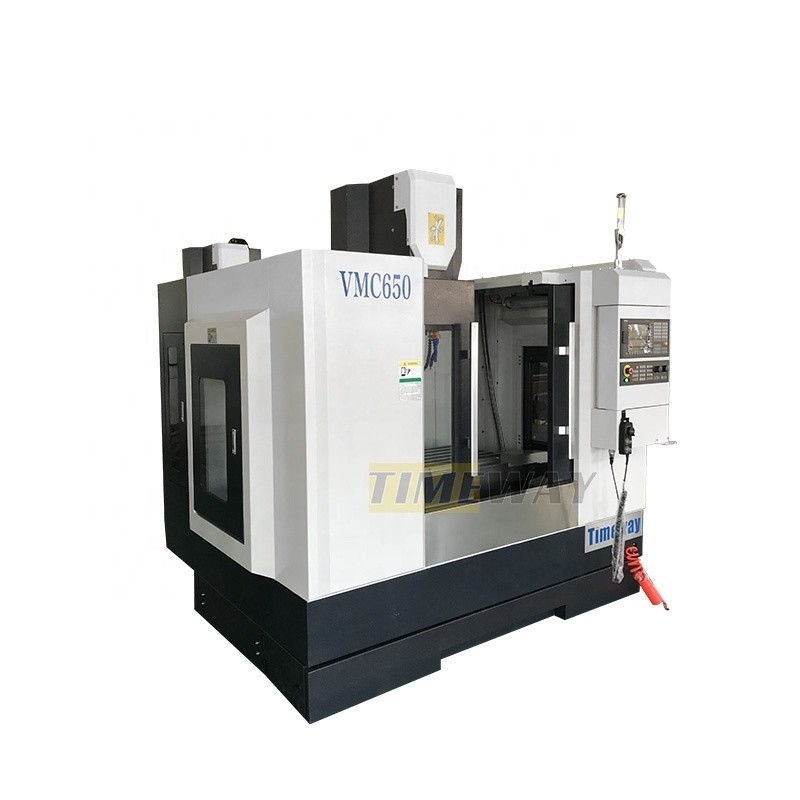

Vertical Machining Center VMC650,VMC850,VMC1060
Specification | Unit | VMC650 | VMC850 | VMC1060 |

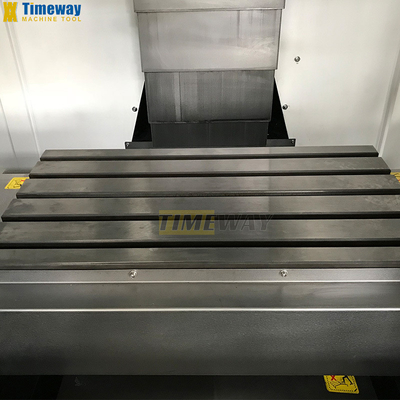

Worktable size (LxW) | mm | 1000×420 | 1000×500 | 1200×600 |
T-slot (No./width/pitch) | mm | 5-18-80 | 5-18-90 | 5-18-110 |
Loading capacity | kg | 400 | 600 | 800 |
Longitudinal travel (X) | mm | 700 | 800 | 1000 |
Cross travel (Y) | mm | 450 | 500 | 600 |
Vertical travel (Z) | mm | 450 | 500 | 600 |
Distance from spindle nose to table | mm | 130-630 | 110-610 | 120-720 |
Distance from spindle center to column | mm | 495 | 550 | 655 |
Spindle taper | - | BT-40 | BT-40 | BT-40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 | 15/15/15 | 15/15/15 |
X/Y/Z-axis servo motor (FANUC) | - | β12/β12/β22 | β12/β12/β22 | β22/β22/β22 |
X/Y/Z-axis positioning accuracy | mm | ±0.01 | ±0.01 | ±0.01 |
X/Y/Z-axis repositioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 |
Main motor power | kw | 7.5/11 | 7.5/11 | 11/15 |
Air pressure source | kg/cm2 | 6-8 | 6-8 | 6-8 |
Power capacity | Kva | 18 | 20 | 25 |

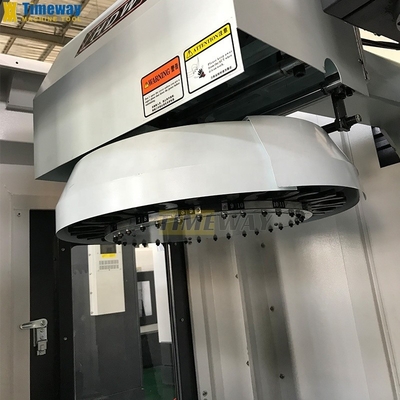

Tool magazine capacity | T | 12 (Crousel) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Sliding | Sliding | Sliding |
Machine weight | kg | 3500 | 4600 | 6300 |
Machine dimensions (LxWxH) | mm | 2400×1900×2400 | 2800×2350×2600 | 3200×2560×2960 |

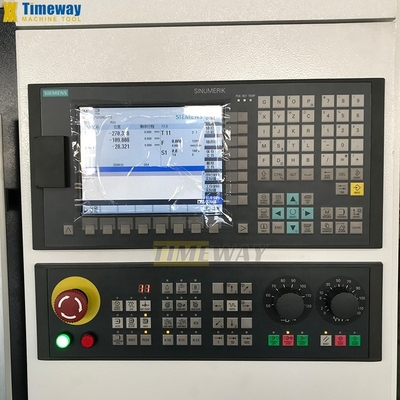

1. Resin sand casting; 2. X, Y, Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement systems; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |
Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

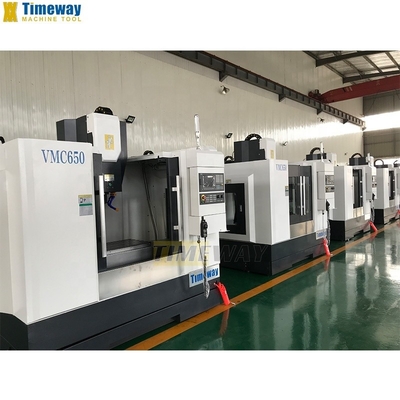

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
