1 Worktable Horizontal Milling Machine with CNC Control and Table Travel Y 2500mm Made
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | ISO40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 4285x3120x3280 | Weight (T): | 8800 KG |
| Table Size (mm): | 1200x600 | CNC Control System: | MITSUBISHI |
| Table Travel (X) (mm): | 3000 | Table Travel (Y) (mm): | 2500 |
| Table Travel (Z) (mm): | 900 | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Range Of Spindle Speed(r.p.m): | 10 - 6000 R.p.m |
| Max. Table Load(kg): | 800 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 6, 3 | Tool Magazine Capacity: | 16, 40 |
| Key Selling Points: | Competitive Price, Energy Saving, Sustainable, Remote Monitoring | Warranty: | 1 Year |
| Voltage: | 380/220v | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Heavy Duty |
| Spindle Bore(mm): | 120 | Cutting Torque: | 25 N.m |
| Rapid Feed Speed(mm/min): | 15 - 30 Mm/min | Wortable Size: | 630x630 |
| Worktable Number: | 1 | Worktable Indexing: | 1 |
| T-slot Of Worktable (No.-sizexdistance): | 6/18/100 | Worktable Rotation Speed: | 11.1 |
| Worktable Loading Capacity: | 800 | Locking Force (35kg/cm2): | 5000 |
| X Axis Travel: | 1050 | Y Axis Travel: | 800 |
| Z Axis Travel: | 700 | ||
Product Description
Products Description

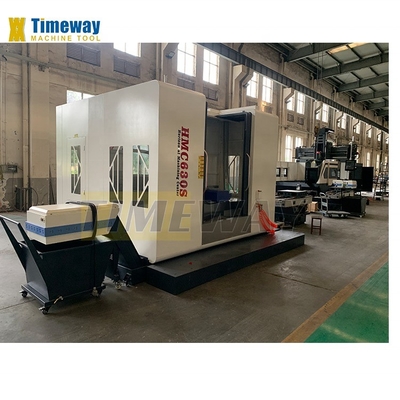

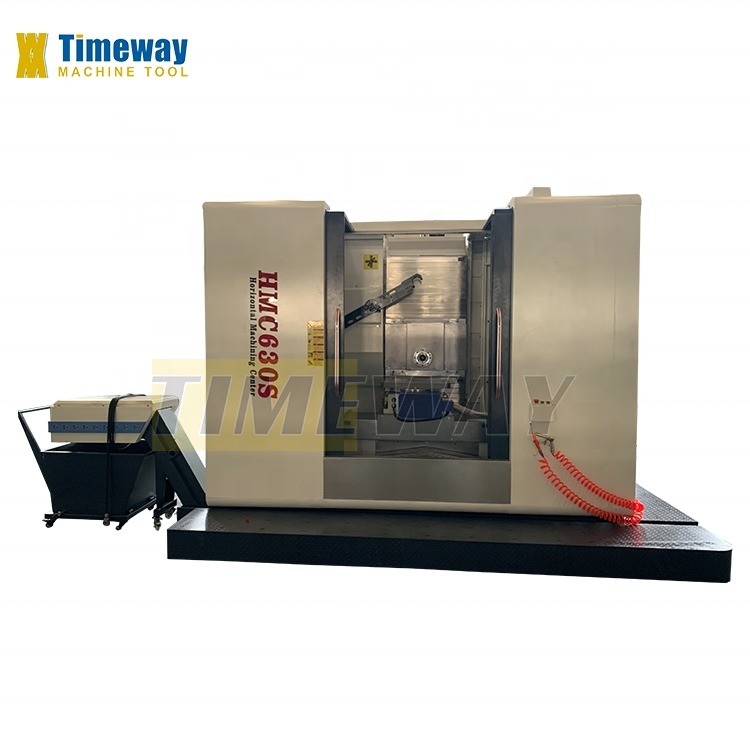

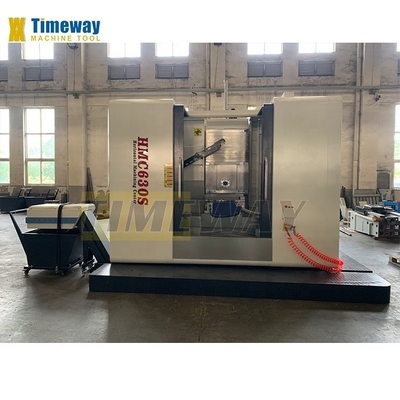

Specification | Unit | HMC630S |

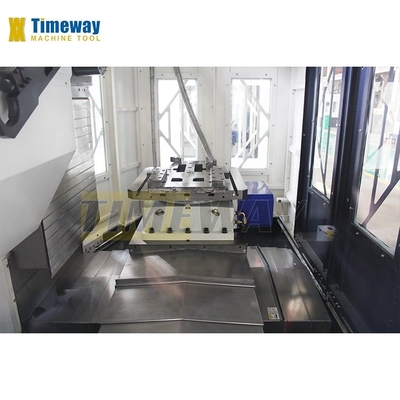

Wortable size | mm | 630x630 |
Worktable number | pcs | 1 |
Worktable indexing | ° | 1° |
T-slot of worktable (No.-sizexdistance) | - | 6/18/100 |
Worktable rotation speed | rpm | 11.1 |
Worktable loading capacity | kg | 800 |
Locking force (35kg/cm2) | kg/m | 5000 |
X axis travel | mm | 1050 |
Y axis travel | mm | 800 |
Z axis travel | mm | 700 |
Distance from spindle center to worktable | mm | 150-750 |
Distance from spindle nose to wortable center | mm | 150-700 |
Spindle taper | - | BT50 |
Max. spindle speed | rpm | 6000 |

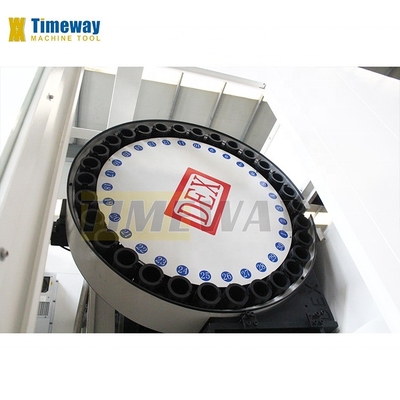

ATC style/station | - | 24 (Disc) |
Max. tool diameter | mm | Φ78/Φ125 |
Max. tool length | mm | 300 |
Max. tool weight | kg | 8 |
Tool change time | sec | 7 |
X/Y/Z-axis feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 30/15/30 |
X/Y/Z-axis guideway type | - | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.006 |
B-axis positioning accuracy | " | 10" |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis feed motor torque | NM | 15/28/22 |
B-axis feed motor torque | NM | 11 |
Power capacity | kva | 50 |
Air pressure | kg/cm2 | 8 |
CNC system | - | FANUC 0i-MF |
Machine weight | kg | 8800 |
Machine dimensions (LxWxH) | mm | 4285x3120x3280 |
· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
