Rapid Feed Speed mm/min 0 12000 mm/min VMC650 VMC850 CNC Milling Machine for Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2350x2100x2300 | Weight (T): | 12000 KG |
| Table Size (mm): | 320x800 | CNC Control System: | Other |
| Table Travel (X) (mm): | 550 | Table Travel (Y) (mm): | 340 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | 0.0075 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m |
| Max. Table Load(kg): | 350 Kg | Feed Speed(mm/min): | 0 - 12000 Mm/min |
| Min. Time Of Tool Change(s): | 9 | Tool Magazine Capacity: | 16, 20 |
| Key Selling Points: | Multifunctional, Automatic, High-accuracy, Sustainable, Easy To Operate | Warranty: | 1 Year |
| Voltage: | 380V/220V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | Other | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 12000 Mm/min | Worktable Size (WxL): | 420x800mm |
| T-slot (No./width/pitch): | 5/18/80mm | Loading Capacity: | 500kg |
| Longitudinal Travel (X): | 600mm | Cross Travel (Y): | 450mm |
| Vertical Travel (Z): | 500mm | Distance From Spindle Nose To Table: | 100-600mm |
| Distance From Spindle Center To Column: | 470mm | Spindle Speed: | 8000rpm |
Product Description
Product Description

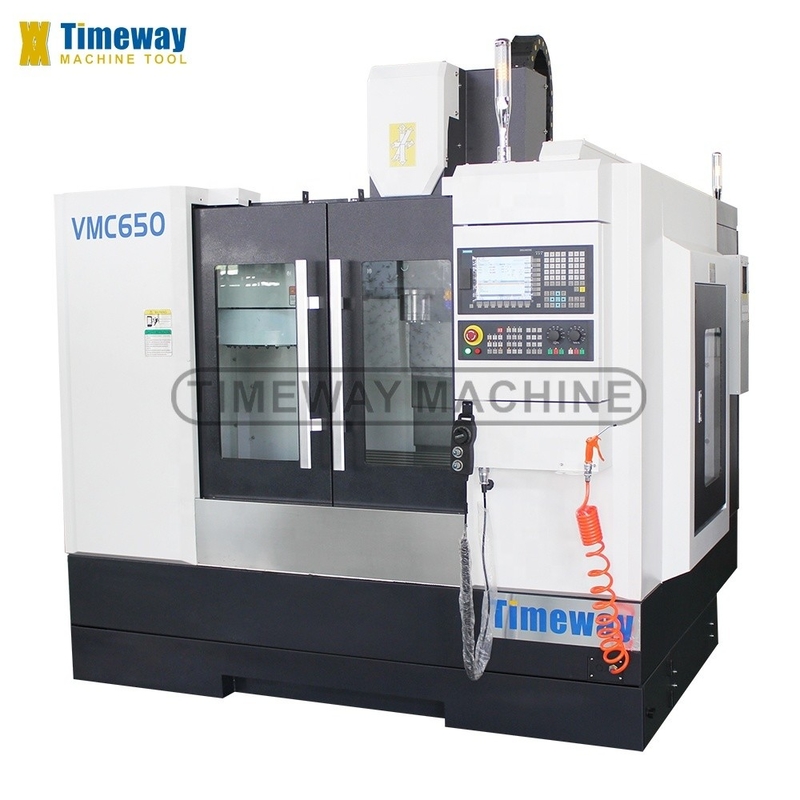

Vertical Machining Center
Main configurations & accessories:
1. Resin sand casting;
2. X, Y,Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
Main configurations & accessories:
1. Resin sand casting;
2. X, Y,Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
Specification
SPECIFICATION | UNIT | VMC550 | VMC650 | VMC745 | VMC850 | |||

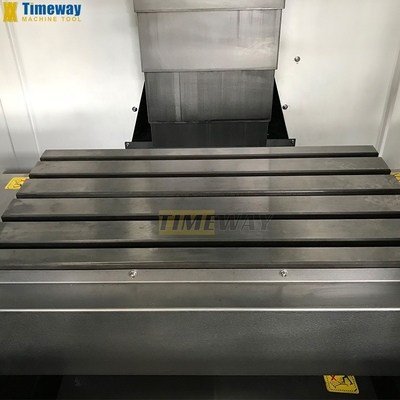

Worktable size (WxL) | mm | 320x800 | 420x800 | 420x1000 | 500x1000 | |||
T-slot (No./width/pitch) | mm | 3/14/110 | 5/18/80 | 3/18/150 | ||||
Loading capacity | kg | 350 | 500 | 600 | ||||
Longitudinal travel (X) | mm | 550 | 600 | 700 | 800 | |||
Cross travel (Y) | mm | 340 | 450 | 500 | ||||
Vertical travel (Z) | mm | 500 | ||||||
Distance from spindle nose to table | mm | 100-600 | 150-650 | |||||
Distance from spindle center to column | mm | 390 | 470 | 550 | ||||
Spindle taper | BT40 | |||||||
Spindle speed | rpm | 8000 | ||||||
Main motor power | kw | 5.5/7.5 | 7.5/11 | |||||
Machine weight | kg | 3000 | 3500 | 4000 | 5000 | |||
Detail Images

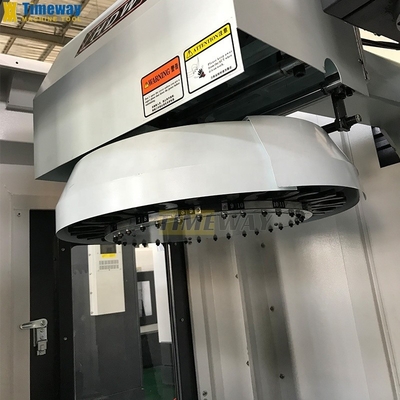

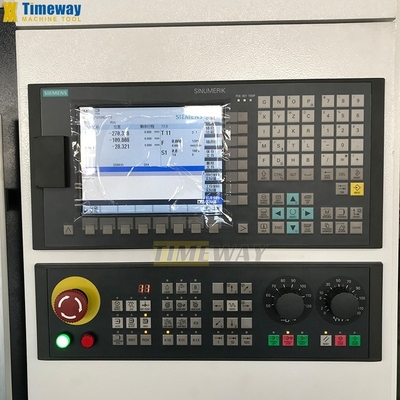

This is the tool magazine and digital display of the machine for your reference. Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

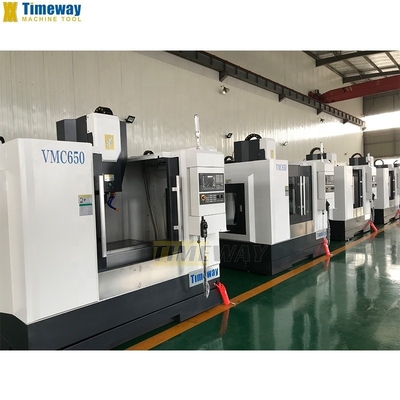

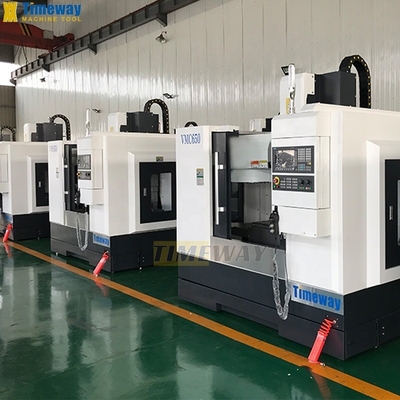

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
