Rotary Table Vertical Milling VMC850G 5-Axis CNC Machining Center with High Accuracy
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40, BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 4200 KG | Table Size (mm): | 1000x500 |
| CNC Control System: | FANUC | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Max. Table Load(kg): | 500 Kg |
| Feed Speed(mm/min): | 0 - 4800 Mm/min | Min. Time Of Tool Change(s): | 0.5 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic, Competitive Price, High-accuracy, Easy To Operate |
| Warranty: | 1 Year | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 0 | Cutting Torque: | 12 N.m |
| Rapid Feed Speed(mm/min): | 0 - 2400 Mm/min | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical Machining Center | Model: | VMC850G |
| Color: | Customers' Request | Control System: | SIEMENS GSK FANUC (optional) |
| Spindle Speed: | 8000rpm | Worktable Size: | 1000*500mm |
| After-sales Service Provided: | 1 Year | Guideway Type: | X/Y:Linear;Z:Sliding |
| Loading Capacity: | 500kg | ||
Product Description
Products Description
5-Axis Cnc Machining Center With Rotary Table
Vertical Machining Center Milling Cnc Machines
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise,small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Technical Parameter
Specification | Unit | VMC850G |
X/Y/Z-axis guideway type | / | Linear guide rail |
Capacity | ||
X-axis travel | mm | 800 |
Y-axis travel | mm | 500 |
Z-axis travel | mm | 500 |
Table | ||
Table size | mm | 1000×500 |
Loading capacity | kg | 500 |
T-slots (No./width/pitch) | mm | 5-18-100 |
Distance spindle nose to table center | mm | 110-610 |
Spindle | ||
Distance spindle center to column | mm | 524 |
Spindle taper | / | BT-40 |
Spindle speed | r/min | 8000 |
Main motor power | kw | 7.5/11 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 2/2/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β12/β12/β22 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/48 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.003/300 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.003/300 |
Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 1.4 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ120 (Empty) |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 20 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | no |
Machine weight | kg | 4200 |
Overall dimension (LxWxH) | mm | 2800×2250×2600 |
CNC system | / | FANUC/MITSUBISHI |
Detailed Images

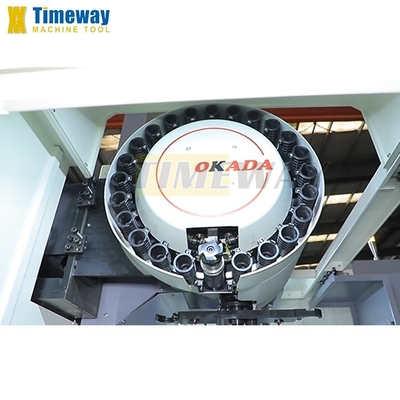

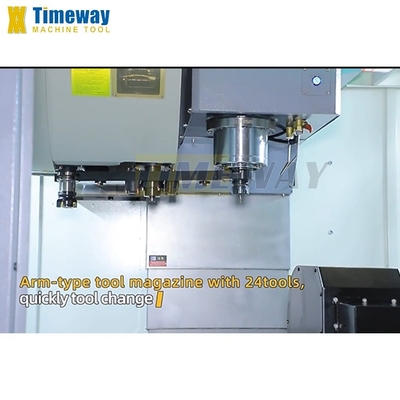

TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 tools magazine, double arm clamping to make a fast exchange.
tool change time only 3 seconds.
2. Brand: OKADA
CONTROL SYSTEM
CNC controller: KND,GSK, HNC(China),SIEMENS, FANUC;
Different CNC systems for customers to choose.
TAIWAN PRECISION SPINDLE
Smaller vibration, stronger combination
1. Spindle taper is BT50; 2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm;
WORKTABLE
The material of the machine tool casting is high-quality high-strength cast iron HT300, with strong tensile strength and high dimensional accuracy High frequency hardening; increase rigidity and stiffness Good wear resis tance and long service life.

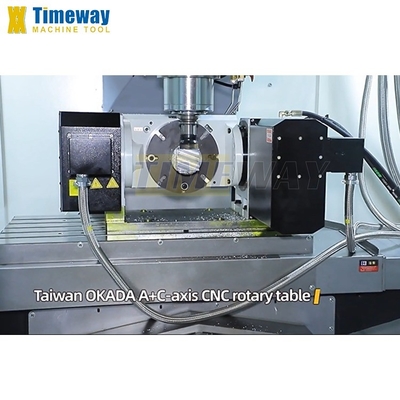

4 AXIS WRING+CNC ROTARY TABLE
4th axis wring and NC rotary table are optional.
5 AXIS WRING+CNC ROTARY TABLE
The specific configuration can be customized according to customer requirements.
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
2. Brand: HIWIN or PMI
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
FULL ENCLOSURE
Full enclosure is standard.
CHAIN TYPE CHIP CONVEYOR
Chain type chip conveyor is optional.
Accessories
*CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC; *24 tool ATC(disc type); *Full enclosure; *Spindle center air blast; *Work lamp; *Pilot lamp; *USB and LAN interface; *Manual pulse generator(MPG); *Centralized automatic lubrication system.; *Cooling system.; *Heat exchanger for electrical cabinet ; *Leveling blocks & bolts; *Toolbox and tools; *HIWIN leadscrew; *Operation manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
