BT40 Spindle Taper Timeway VMC550 3-axis Linear Guideway Vertical Machining Center CNC Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/acres >=1 acres |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2100x1800x2150mm | Weight (T): | 3000 KG |
| Table Size (mm): | 320*800 | CNC Control System: | FANUC |
| Table Travel (X) (mm): | 550 | Table Travel (Y) (mm): | 340 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | ±0.005 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m |
| Max. Table Load(kg): | 350 Kg | Feed Speed(mm/min): | 0 - 24000 Mm/min |
| Min. Time Of Tool Change(s): | 7 | Tool Magazine Capacity: | 12 |
| Key Selling Points: | Multifunctional, Automatic, Competitive Price, Sustainable, Easy To Operate | Warranty: | 1 Year |
| Voltage: | 380V/220V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | Other | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 24000 Mm/min | Worktable Size(LxWxH): | 800x320mm |
| Max. Weight Of Worktable: | 350kg | X-axis Travel: | 550mm |
| Y-axis Travel: | 340mm | Z-axis Travel: | 500mm |
| Distance Spindle Center To Column: | 390mm | Distance Spindle Nose To Worktable: | 100-600mm |
| Spindle Taper: | BT40/120 | Overall Dimension (LxWxH): | 2100x1800x2150mm |
| Machine Weight: | 3000kg | ||
Product Description
Summary

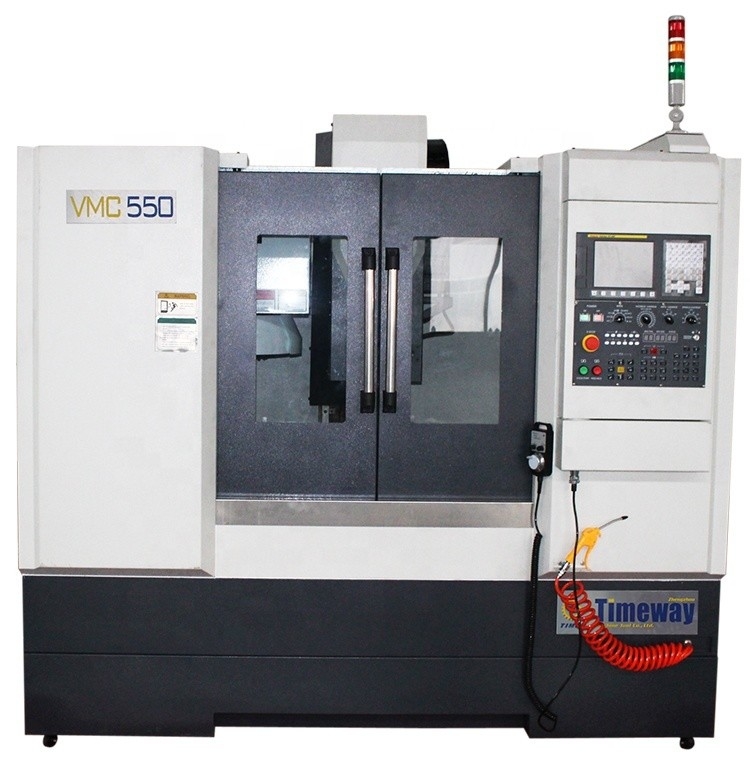

3-axis Linear Rail Vertical Machining Center CNC Machine VMC550
Features:
• At all stages from foundation design to guarantee of high-speed and high-precision continuous machining, the structure of the machine tool is analyzed with ANSYS.
• To ensure excellent bending rigidity of the machine tool, we take a simulation test for deformation produced when the center of machine tool bears load is conducted.
• Large precision preloaded ballscrews, direct servo-motor drive to ensure max. Reliability and precision. Premium linear
guideways on all axes.
• Pneumatic tool clamping for easy and quick tool changes.
• Optimal extension ratio of spindle box realizes the optimal machining rigidity, and design of large-span herringbone columns guarantees strong rigidity of columns.
• Automatic central lubrication for low-maintenance operation.
• Powerful headstock motor, enough power in continuous operation.
• Effective coolant system ensures optimum use of tools and excellent chip conveyor.
• Enclosed work space ensures safe and contamination-free work.
• Superior mechanical properties of the total component package ensure longer tool life.
• Easy accessibility of work table for easy setup and tooling.
• To ensure excellent bending rigidity of the machine tool, we take a simulation test for deformation produced when the center of machine tool bears load is conducted.
• Large precision preloaded ballscrews, direct servo-motor drive to ensure max. Reliability and precision. Premium linear
guideways on all axes.
• Pneumatic tool clamping for easy and quick tool changes.
• Optimal extension ratio of spindle box realizes the optimal machining rigidity, and design of large-span herringbone columns guarantees strong rigidity of columns.
• Automatic central lubrication for low-maintenance operation.
• Powerful headstock motor, enough power in continuous operation.
• Effective coolant system ensures optimum use of tools and excellent chip conveyor.
• Enclosed work space ensures safe and contamination-free work.
• Superior mechanical properties of the total component package ensure longer tool life.
• Easy accessibility of work table for easy setup and tooling.
Product Overview

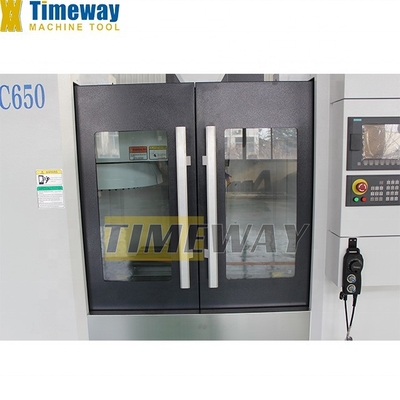

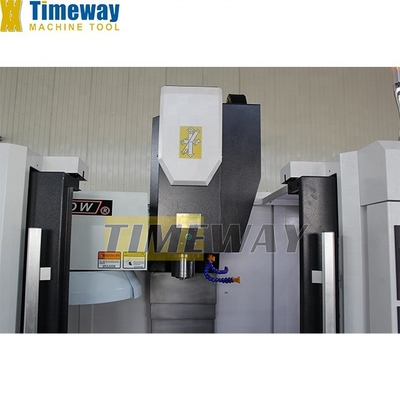

Here are the detailed photos of the worktable, digital display, etc. for your reference.
Accessories
Standard Configuration:
* CNC controller: Siemens SINUMERIK
* X/Y/Z-axis servo feed motor: Siemens
* X/Y/Z-axis linear type guideway
* BT40 spindle unit with 8000r.p.m
* 12 tools Carousel type ATC
* Full-closed protection guard
* Electric parts: Schneider
* Automatic lubrication
* Coolant system
* Operating tools
* Operating manual in English
* X/Y/Z-axis servo feed motor: Siemens
* X/Y/Z-axis linear type guideway
* BT40 spindle unit with 8000r.p.m
* 12 tools Carousel type ATC
* Full-closed protection guard
* Electric parts: Schneider
* Automatic lubrication
* Coolant system
* Operating tools
* Operating manual in English
Technical Parameter
Specification | Unit | VMC550 |
Worktable size(LxWxH) | mm | 800x320 |
T-slot(Number/width/distance) | mm | 3-14-110 |
Max. weight of worktable | kg | 350 |
X-axis travel | mm | 550 |
Y-axis travel | mm | 340 |
Z-axis travel | mm | 500 |
Distance spindle center to column | mm | 390 |
Distance spindle nose to worktable | mm | 100-600 |
Spindle taper | - | BT40/120 |
Spindle speed | rpm | 8000 |
X-axis rapid feed speed | mm/min | 24000 |
Y-axis rapid feed speed | mm/min | 24000 |
Z-axis rapid feed speed | mm/min | 24000 |
ATC Type | - | carousel |
ATC Station | pcs | 12 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | 90 |
Max. tool length | mm | 300 |
Tool change time | sec | 7/60HZ |
Spindle motor power | kw | 5.5 |
X-axis servo motor power | Nm | 6 |
Y-axis servo motor power | Nm | 7.7 |
Z-axis servo motor power | Nm | 10 |
Positioning accuracy | mm | ±0.005/300 |
Re-positioning accuracy | mm | ±0.003 |
Overall dimension (LxWxH) | mm | 2100x1800x2150 |
Machine weight | kg | 3000 |
One-Stop Shopping
You can click on the picture to view the products you are interested in
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
