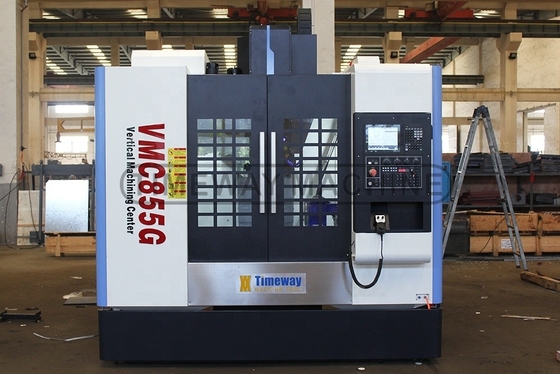

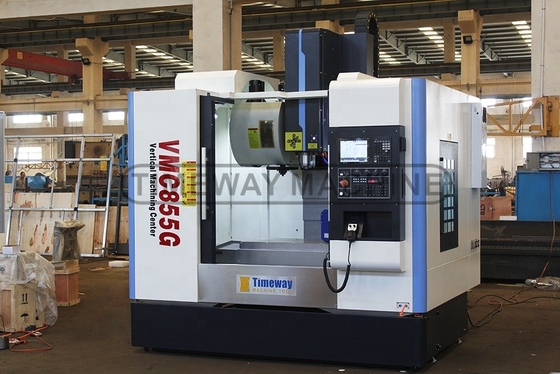

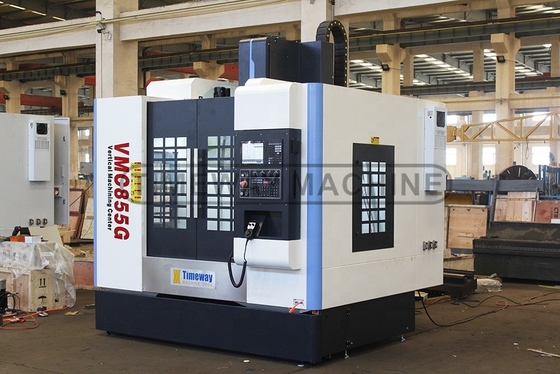

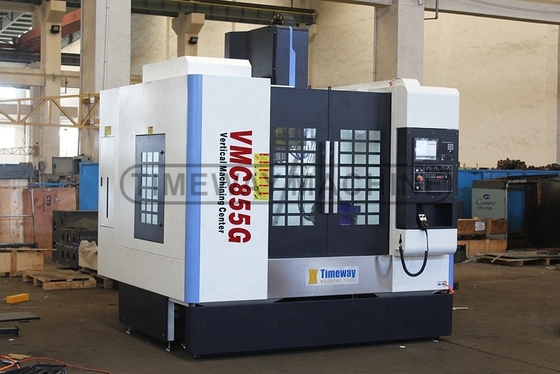

High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | EAC, ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2800x2350x2800mm | Weight (T): | 5.2 T |
| Table Size (mm): | 550x1000mm | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 550 | Table Travel (Z) (mm): | 550 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0.1 - 8000 R.p.m | Spindle Motor Power(kW): | 11 |
| Max. Table Load(kg): | 500 Kg | Feed Speed(mm/min): | 0.1 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 1 | Tool Magazine Capacity: | 24, Other |
| Key Selling Points: | Long Service Life | Warranty: | 12 Months |
| Voltage: | 200-480V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Control System: | FANUC 0i- MF Or SIEMENS 808D |
| Machine Type: | Vertical CNC Milling Machine Foe Metal | Working Accuracy: | IT6 |
| 4th-axis: | Optional | Tool Magazine: | Disc-type ATC |
| ATC Tool Capacity: | 24 Tools | Tool Weight: | 8kg |
| Tool Length: | 300mm | After Warranty Service: | Online Support |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Morocco, Argentina, Colombia, Algeria, Romania, Uzbekistan, Australia |
| Rapid Feed Speed(m/min): | 48 | Core Components: | FANUC Or SIEMENS CNC System |
Product Description
Products Description
Applications of the vertical machining center:
The VMC-G series vertical machining center is a vertical milling machine controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC850G | VMC855G |
X/Y/Z-axis guideway type | / | Linear guide rail | Linear guide rail |
Capacity | |||
X-axis travel | mm | 800 | 800 |
Y-axis travel | mm | 500 | 550 |
Z-axis travel | mm | 500 | 550 |
Table | |||
Table size | mm | 1000×500 | 1000×550 |
Loading capacity | kg | 500 | 500 |
T-slots (No./width/pitch) | mm | 5-18-100 | 5-18-100 |
Distance spindle nose to table center | mm | 110-610 | 110-660 |
Spindle | |||
Distance spindle center to column | mm | 524 | 600 |
Spindle taper | / | BT-40 | BT-40 |
Spindle speed | r/min | 8000 | 8000 |
Main motor power | kw | 7.5/11 | 7.5/11 |
3-axis (X/Y/Z) | |||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 2/2/3 | 2/2/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β12/β12/β22 | β12/β12/β22 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/48 | 48/48/48 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 | 0-10000 |
Accuracy | |||
X/Y/Z-axis positioning accuracy | mm | ±0.003/300 | ±0.003/300 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.003/300 | ±0.003/300 |
Tool magazine (ATC) | |||
ATC style | / | Disc | Disc |
ATC capacity | tools | 24 | 24 |
Tool change time (tool to tool) | sec | 1.4 | 1.4 |
Max. tool weight | kg | 8 | 8 |
Max. tool diameter | mm | Φ78/Φ120 (Empty) | Φ78/Φ120 (Empty) |
Max. tool length | mm | 300 | 300 |
Others | |||
Power supply | KVA | 20 | 20 |
Air pressure require | kg/cm2 | 6-8 | 6-8 |
Z-axis balancing system | / | no | no |
Machine weight | kg | 4200 | 5200 |
Overall dimension (LxWxH) | mm | 2800×2250×2600 | 2800×2350×2800 |
CNC system | / | FANUC/MITSUBISHI | FANUC/MITSUBISHI |
√ FANUC 0i MF CNC system √ X/Y/Z: Linear guide rails √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================
>> Taiwan high rigid precision spindle, belt-driven by servo motor, large torque, high spindle speed and low noise.
========================
>> Hardened and fine ground worktable surface make sure high rigidity.

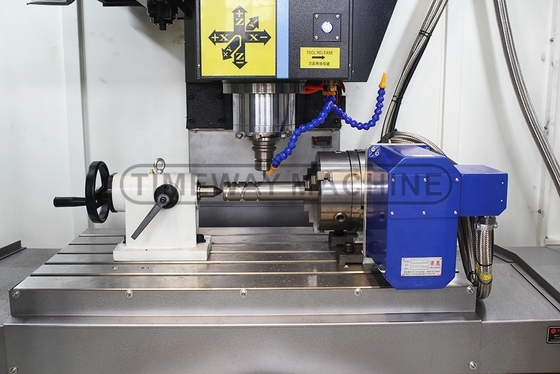

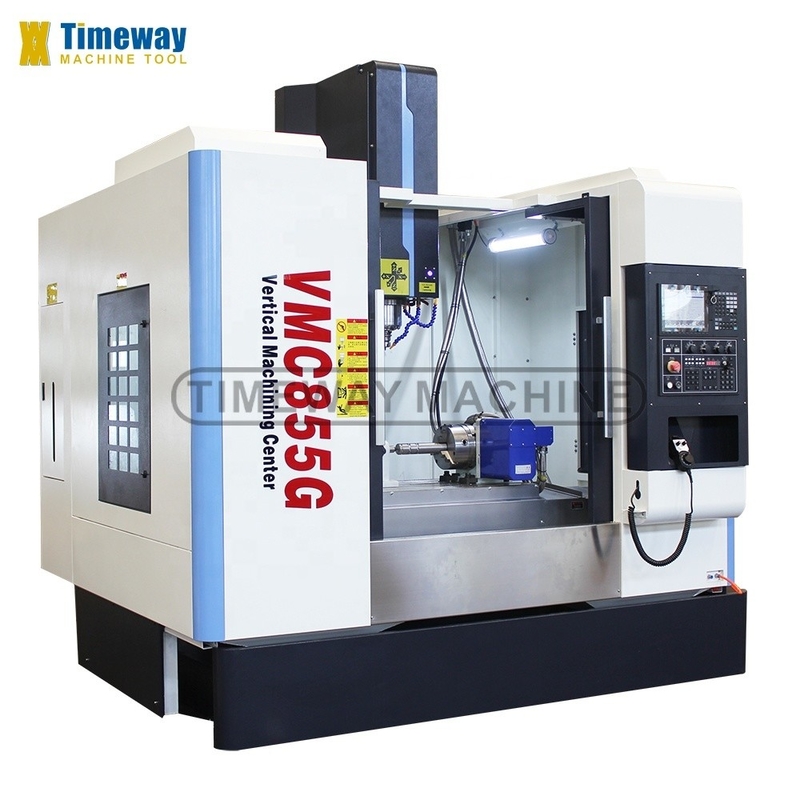

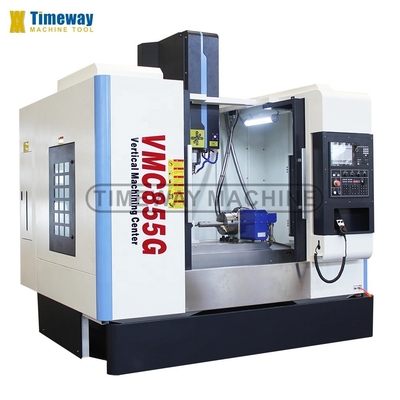

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
