SIEMENS CNC System Vertical Machining Center for metal milling within TIMEWAY 3 axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,999.00/sets >=1 sets |
| Packaging Details: | WOODEN CASE |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2400x1900x2400mm | Weight (T): | 3.5 T |
| Table Size (mm): | 1000x420 | CNC Control System: | Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 450 | Table Travel (Z) (mm): | 450 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 400 Kg | Feed Speed(mm/min): | 1 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 12 Months |
| Voltage: | As Customers' Request | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | TableSize: | 1000x420mm |
| Number Of Axis: | 3 | X-axis Travel: | 700mm |
| Y-axis Travel: | 450mm | Machine Type: | Vertical CNC Milling Machine |
| Machine Color: | Optional | Controlling Mode: | Automatic Cnc Control |
| Control System: | SIMENS 808D CNC System | Product Name: | Vertical Machining Center |
| Keywords: | Cnc Vertical Machining Center | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail |
| Showroom Location: | Canada, Italy, France, Germany, Brazil, Peru, Russia, Spain, Chile, UAE, Romania, Ukraine, Uzbekistan, Australia | Rapid Feed Speed(m/min): | 15/15/15 |
| Core Components: | SIEMENS CNC System | Port: | China Ports |
Product Description

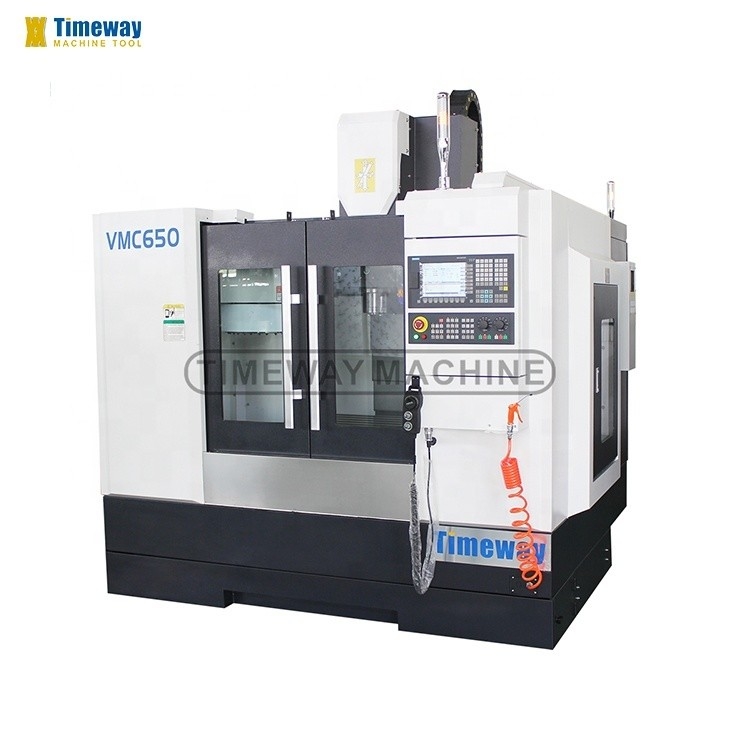

Vertical Machining Center
Products Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Technical Parameter：
Specification | Unit | VMC650 |
X/Y/Z-axis guideway type | / | Sliding guide rail |
Loading capacity | kg | 400 |
T-slots (No./width/pitch) | mm | 5-18-80 |
Distance spindle nose to table center | mm | 130-630 |
Distance spindle center to column | mm | 495 |
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 2/2/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β12/β12/β22 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ120 (Empty) |
Max. tool length | mm | 300 |
Power supply | KVA | 18 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | Heavy casting |
standard accessories：
optional accessories：
√ FANUC 0i MF CNC system √ X/Y/Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

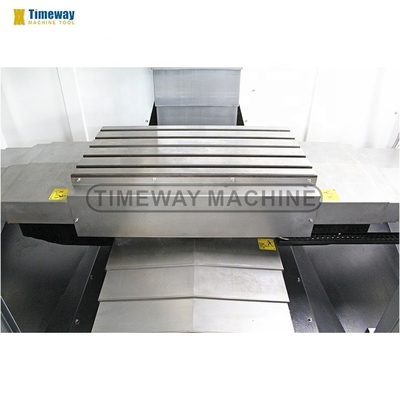

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

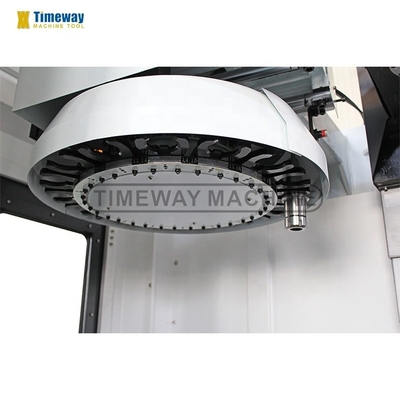

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

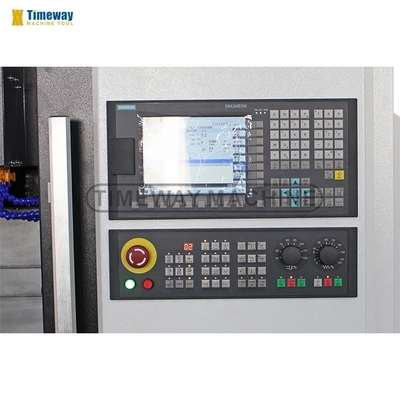

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
