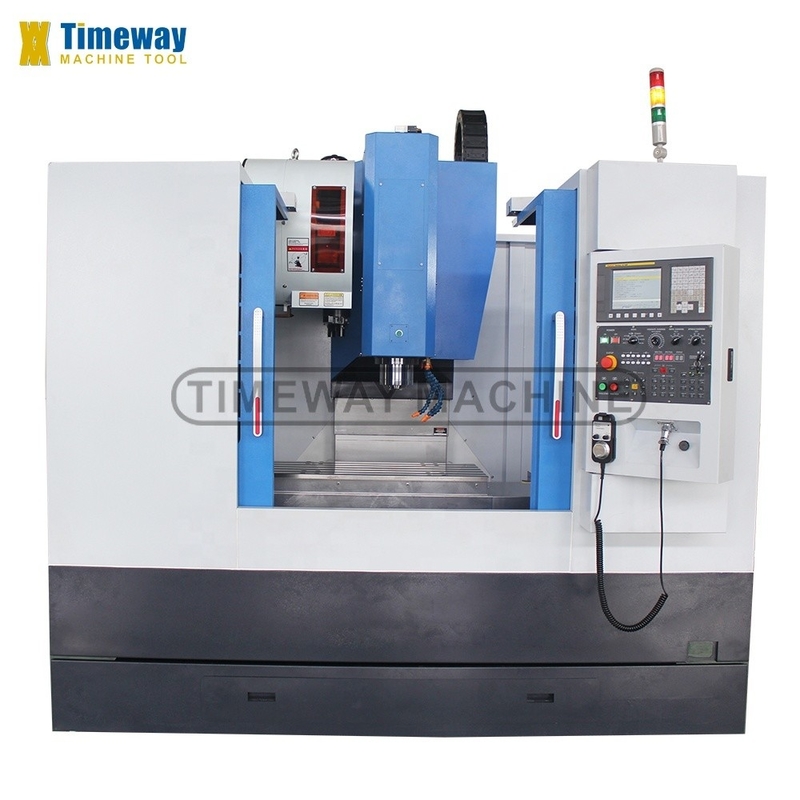

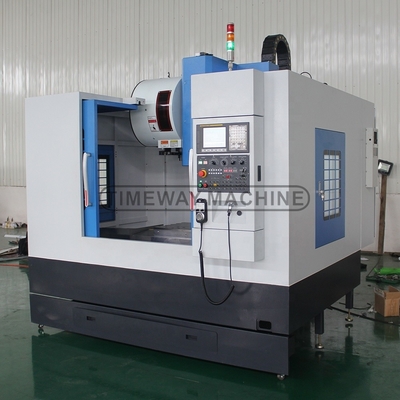

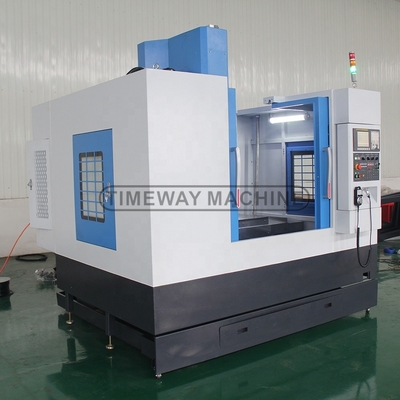

Full Closed 3-axis CNC Machining Center VMC850 CNC Milling Machine for CNC by Timeway
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | VMC850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets >=1 sets |
| Packaging Details: | Wood case(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 1 - 8000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 500 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Voltage: | Customer Requirement |
| Dimension(L*W*H): | 2800x2350x2600mm | CNC Control System: | FANUC |
| Key Selling Points: | High Rigidity | Weight (KG): | 4600 |
| Spindle Motor Power(kW): | 7.5/11 | Warranty: | 12 Months |
| Max. Table Load(kg): | 600 Kg | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CNC Or Not: | CNC | Color: | Blue-white |
| Machine Type: | Cnc Vertical Milling Machine With ATC | Worktable Size(LxW): | 1000x500mm |
| T-slots: | 5-18-90 | X, Y, Z Axes Travel: | 800/500/500mm |
| Spindle Speed: | 8000rpm | ATC Style: | Disc-type |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Home Use, Printing Shops, Construction Works |
| Showroom Location: | Canada, Italy, France, Mexico, Russia, Spain, Chile, Romania, Uzbekistan, Australia | Table Travel (mm): | 1000x500 |
| Year: | 2021 | Core Components: | FANUC CNC System |
| Port: | China Ports | ||
Product Description
Vertical Machining Center
Products Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC850 |
X-axis travel | mm | 800 |
Y-axis travel | mm | 500 |
Z-axis travel | mm | 500 |
Table size | mm | 1000×500 |
Loading capacity | kg | 600 |
Spindle taper | / | BT-40 |
Spindle speed | r/min | 8000 |
Main motor power | kw | 7.5/11 |
X/Y/Z-axis positioning accuracy | mm | ±0.01 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.008 |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 1.4 |
Machine weight | kg | 4600 |
CNC system | / | FANUC/MITSUBISHI |
√ FANUC 0i MF CNC system √ X/Y/Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

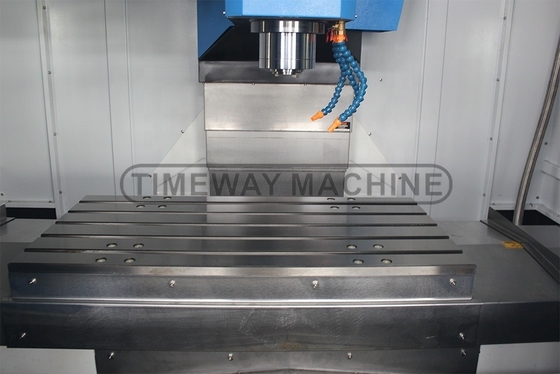

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.

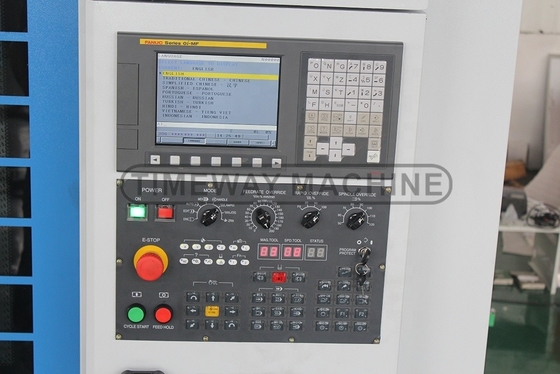

>> FANUC CNC system comes standard.
========================
>> Chain-type chip conveyor comes optional.
