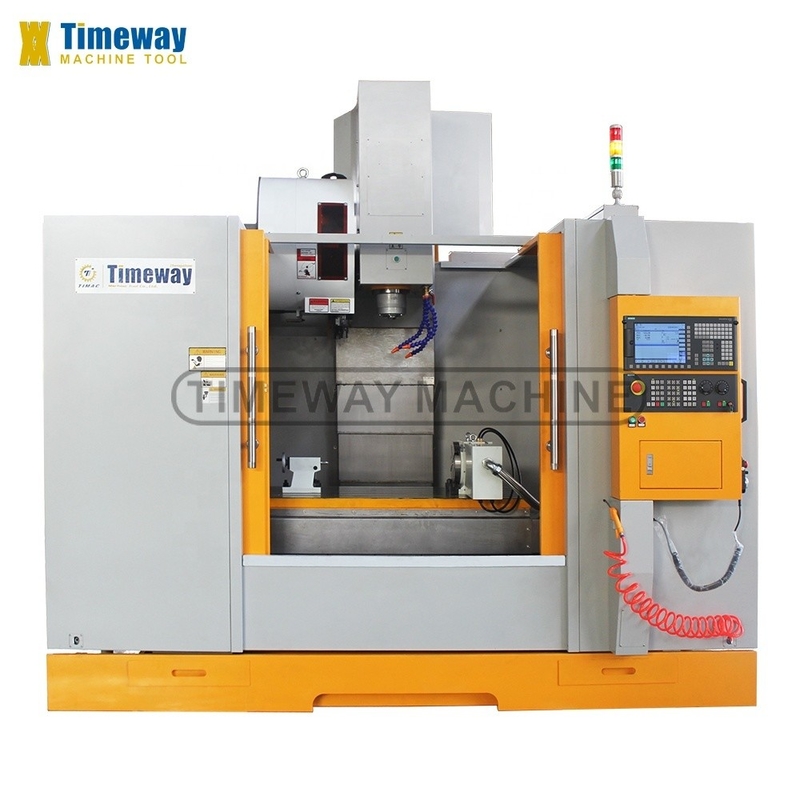

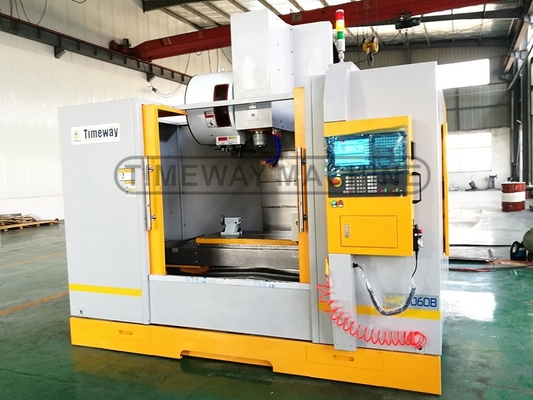

24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3200x2560x2960mm | Weight (T): | 6.3 T |
| Table Size (mm): | 1200x600 | CNC Control System: | Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 |
| Max. Table Load(kg): | 800 Kg | Feed Speed(mm/min): | 1 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 12 Months |
| Voltage: | 380V/50Hz | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Custom-made | X/Y-axis Guideway: | Linear-rail |
| Z-axis Guideway: | Sliding-rail | Z-axis Balancing Device: | Heavy Casting |
| Tool Magazine Type: | Arm-type ATC | ATC Capacity: | 24tools |
| Tool Diameter: | 78/120mm | Tool Length: | 300mm |
| Tool Weight: | 8kg | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, Italy, France, Brazil, Peru, India, Mexico, Russia, Spain, Japan, Colombia, Algeria, Romania, South Africa, Ukraine | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | Canada, United States, Italy, France, Brazil, Peru, India, Mexico, Russia, Spain, Chile, Algeria, Uzbekistan, Australia | Core Components: | SIEMENS CNC System |
| Rapid Feed Speed(m/min): | 36/36/15 | Port: | China Port |
Product Description
Products Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC1060L |
X/Y/Z-axis guideway type | / | X/Y: Linear guide rail, Z: Sliding guide rail |
Capacity | ||
X-axis travel | mm | 1000 |
Y-axis travel | mm | 600 |
Z-axis travel | mm | 600 |
Table | ||
Table size | mm | 1200×600 |
Loading capacity | kg | 800 |
T-slots (No./width/pitch) | mm | 5-18-110 |
Distance spindle nose to table center | mm | 120-720 |
Spindle | ||
Distance spindle center to column | mm | 655 |
Spindle taper | / | BT-40 (150) |
Spindle speed | r/min | 8000 |
Main motor power | kw | 11/15 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 3/3/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β22/β22/β22 |
X/Y/Z-axis rapid feed speed | m/min | 36/36/15 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 |
Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 1.4 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ120 (Empty) |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 25 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | Heavy casting |
Machine weight | kg | 6300 |
Overall dimension (LxWxH) | mm | 3200×2560×2960 |
CNC system | / | FANUC/MITSUBISHI |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |

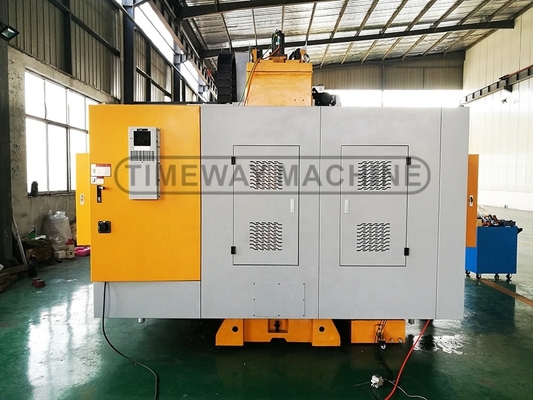

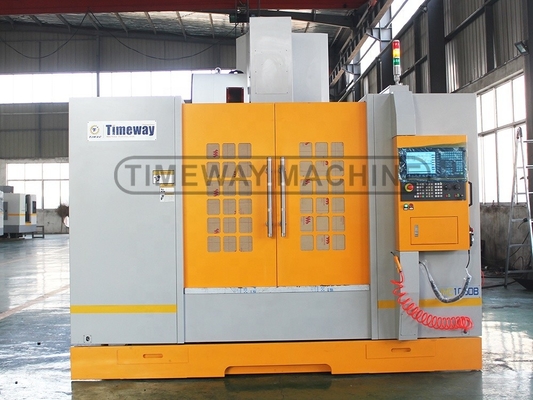

Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.

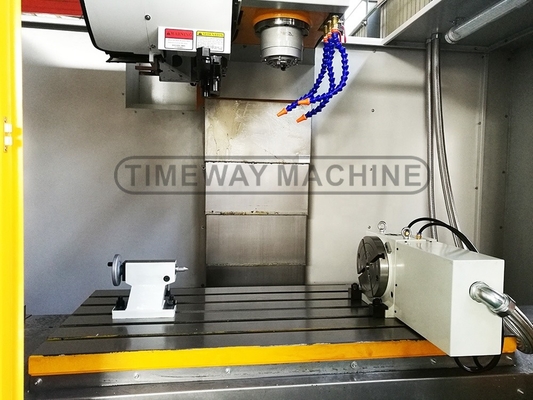

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

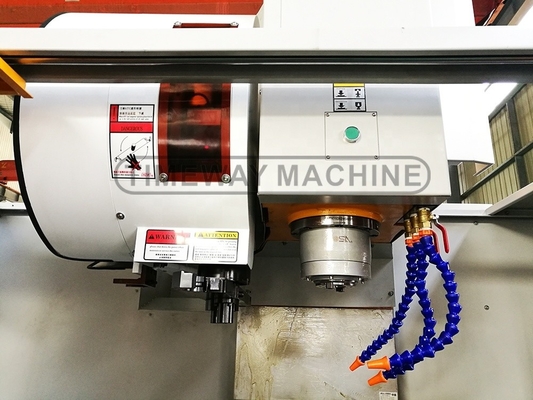

>> Choose Taiwan BT40 disc-type tool magazine, standard 24tools, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> SIEMENS CNC system comes standard.
========================
>> Chain-type chip conveyor comes optional.
