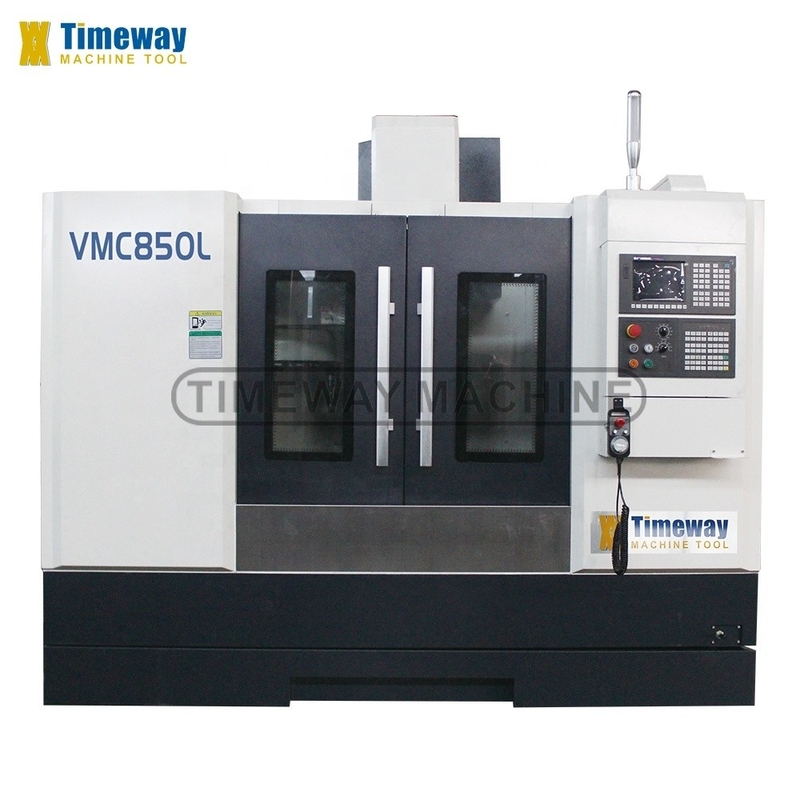

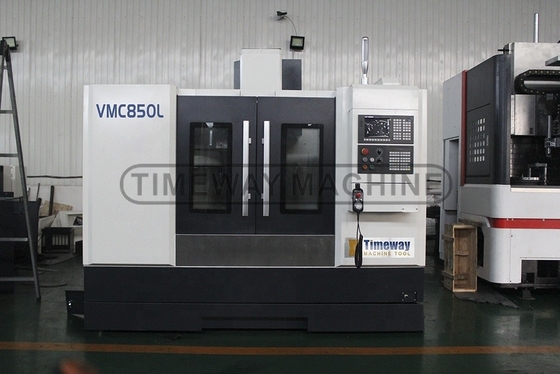

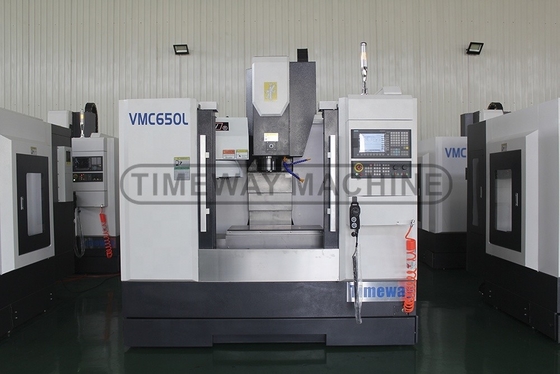

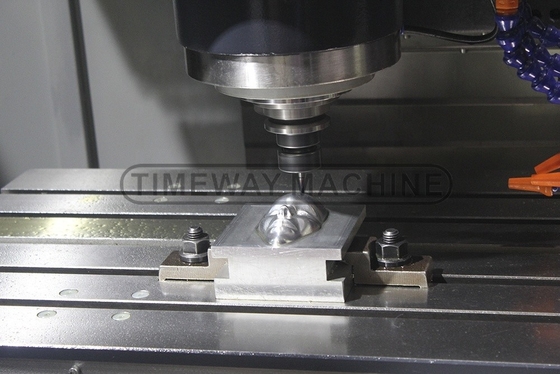

Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3400x2460x2960mm | Weight (T): | 4.6 T |
| Table Size (mm): | 1000x500 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 500 Kg | Feed Speed(mm/min): | 1 - 100000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 12 Months |
| Voltage: | 380V/50Hz | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Custom-made | Spindle Speed: | 8000rpm |
| Spindle Taper: | BT40/150 | Tool Magazine: | Disc Type 24 Tools |
| T-slots: | 5-18-100 | X/Y Guideways Type: | Linear Rails |
| Z Guideways Type: | Sliding Rails | Balancing Way: | Heavy Casting |
| Linear Rails And Ball Screw: | Taiwan HIWIN | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Canada, United States, Italy, France, Brazil, Mexico, Russia, Spain, Chile, Ukraine, Uzbekistan | Applicable Industries: | Machinery Repair Shops, Restaurant, Home Use, Energy & Mining |
| Showroom Location: | Canada, United States, France, Germany, Brazil, Mexico, Russia, Spain | Core Components: | CNC System |
| Rapid Feed Speed(m/min): | 48/48/15 | Port: | China Ports |
Product Description
Products Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC850L |
X/Y/Z-axis guideway type | / | X/Y: Linear guide rail, Z: Sliding guide rail |
Capacity | ||
X-axis travel | mm | 800 |
Y-axis travel | mm | 500 |
Z-axis travel | mm | 500 |
Table | ||
Table size | mm | 1000×500 |
Loading capacity | kg | 500 |
T-slots (No./width/pitch) | mm | 5-18-100 |
Distance spindle nose to table center | mm | 110-610 |
Spindle | ||
Distance spindle center to column | mm | 524 |
Spindle taper | / | BT-40 (150) |
Spindle speed | r/min | 8000 |
Main motor power | kw | 7.5/11 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 2/2/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β12/β12/β22 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/15 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 |
Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 1.4 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ120 (Empty) |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 20 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | Heavy casting |
Machine weight | kg | 4600 |
Overall dimension (LxWxH) | mm | 2800×2350×2600 |
CNC system | / | FANUC/MITSUBISHI |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |

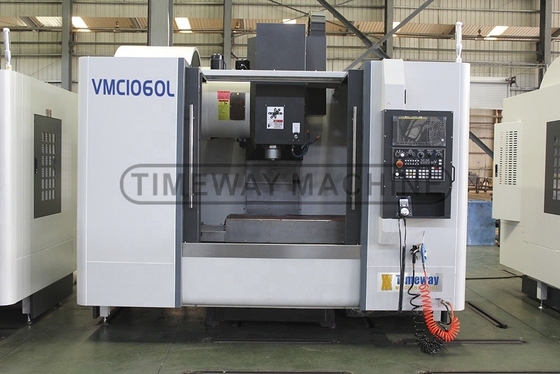

Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.

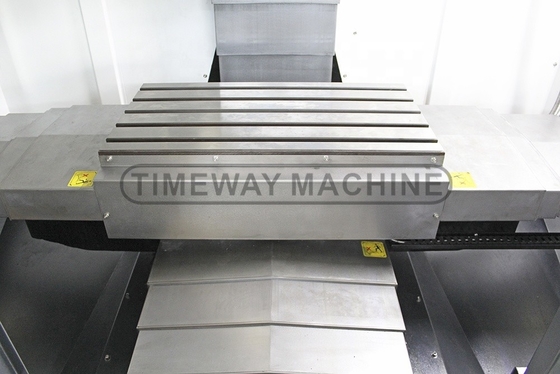

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
