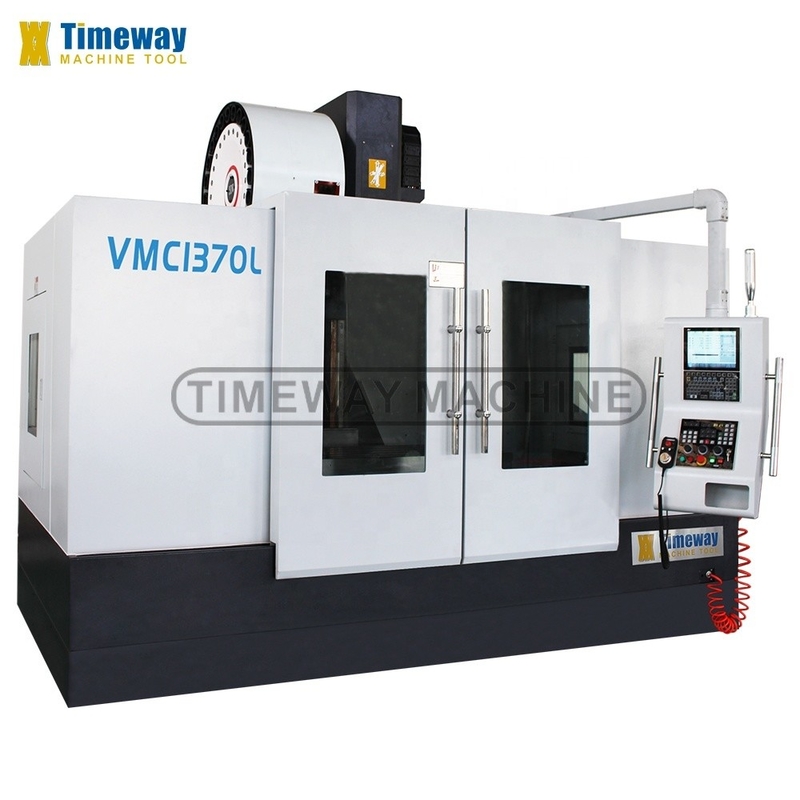

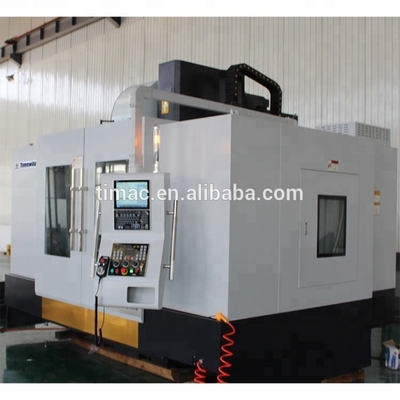

Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $120,000.00/sets 1-2 sets |
| Packaging Details: | Pallet or wooden case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2600x3100mm | Weight (T): | 10 T |
| Table Size (mm): | 1360x700 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 1 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 1 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 3 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Flexible Manufacturing | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Color: | As Contract |
| Machine T-slots: | 5-18-152.5 | X/Y-axis Rails: | Roller Linear Rails |
| Z-axis Rail: | Sliding Rail | Machine Type: | Big Scale CNC Machining Center |
| Controlling Mode: | CNC System | ATC Style: | Disc-type |
| ATC Capacity: | 24tools | Z-axis Balancing System: | Heavy Casting |
| After-sales Service Provided: | Online Support | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Ukraine, Uzbekistan, Australia | Rapid Feed Speed(m/min): | 24/24/15 |
| Core Components: | FANUC CNC System | Port: | China Port |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Applications of the CNC vertical machining center:
The VMC series vertical milling machine is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC1370L |
X/Y/Z-axis guideway type | / | X/Y: Linear guide rail, Z: Sliding guide rail |
Capacity | ||
X-axis travel | mm | 1300 |
Y-axis travel | mm | 700 |
Z-axis travel | mm | 700 |
Table | ||
Table size | mm | 1360×700 |
Loading capacity | kg | 1200 |
T-slots (No./width/pitch) | mm | 5-18-152.5 |
Distance spindle nose to table center | mm | 140-840 |
Spindle | ||
Distance spindle center to column | mm | 785 |
Spindle taper | / | BT-50 (155) |
Spindle speed | r/min | 6000 |
Main motor power | kw | 15/18.5 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 3/3/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β22/β22/β30 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/15 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 |
Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 2.4 |
Max. tool weight | kg | 18 |
Max. tool diameter | mm | Φ112/Φ200 (Empty) |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 30 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | Heavy casting |
Machine weight | kg | 10000 |
Overall dimension (LxWxH) | mm | 3820×2600×3100 |
CNC system | / | FANUC/MITSUBISHI |

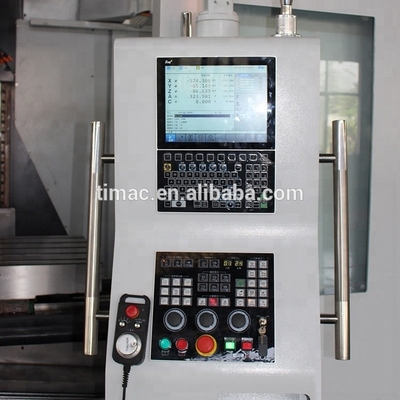

√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT50 spindle, 6000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

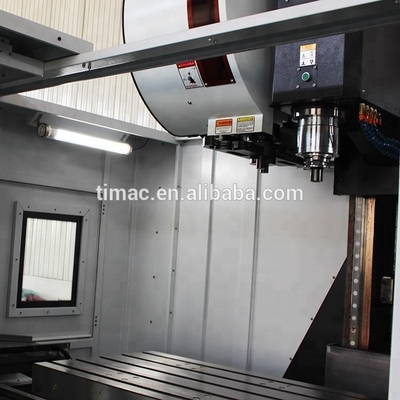

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.

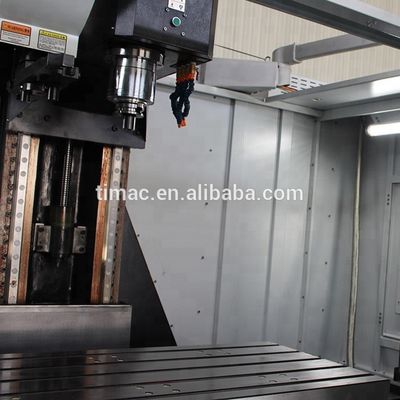

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Y-axis adopts 4-rails support and 4pcs. roller linear guide rails, large loading capacity.
========================

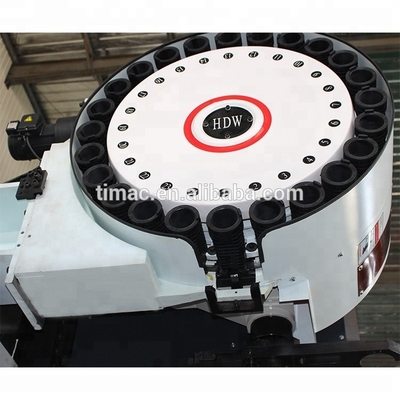

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> FANUC CNC system comes standard for Export abroad.
========================
>> Chain-type chip conveyor comes optional.
