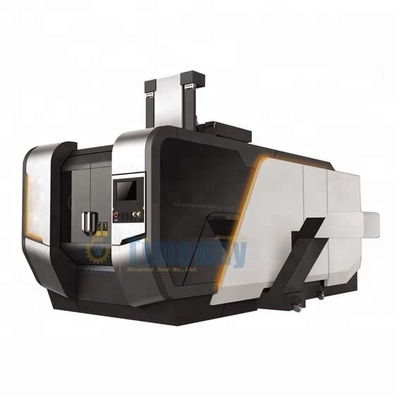

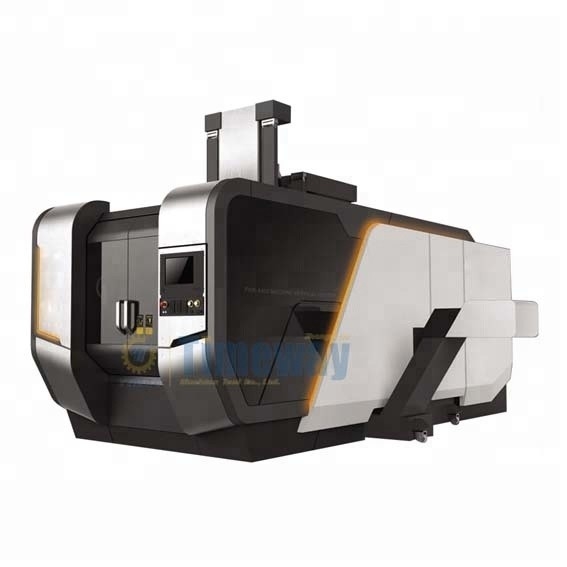

precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE, ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $167,000.00/sets 1-2 sets |
| Packaging Details: | Wooden box |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | VERTICAL | Dimension(L*W*H): | TALK MORE |
| Weight (T): | 0 T | Table Size (mm): | Other |
| CNC Control System: | GSK, FANUC, Siemens | Number Of Axes: | 5 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 1400 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | ±0.006 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 0 - 18000 R.p.m |
| Spindle Motor Power(kW): | 34 | Max. Table Load(kg): | 800 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 40 |
| Key Selling Points: | Long Service Life | Warranty: | One Year |
| Voltage: | Customized | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Color: | Customized |
| Number Of Axis: | 5 | Table Size: | 660*660mm |
| X-axis Travel: | 1000mm | Y-axis Travel: | 1400mm |
| Product Name: | 5-axis Cnc Milling Machine | Product Type: | 5-axis Vertical Machining Center |
| Weight: | As Actual Situation | Power: | 34Kw |
| Showroom Location: | France, Germany, Viet Nam, Mexico, UAE, Colombia, Algeria, Romania, Ukraine | Core Components: | Engine |
| Applicable Industries: | Machinery Repair Shops, Other | Port: | China Port |
Product Description
Product Description

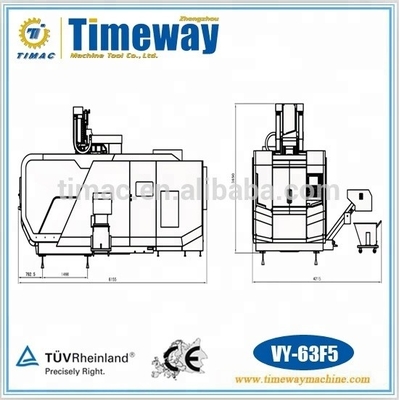

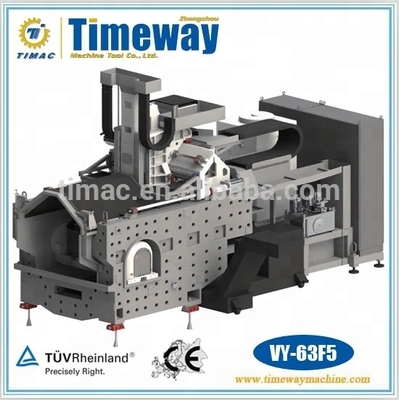

VY Series Vertical 5-Axis Machining Center
Summary：

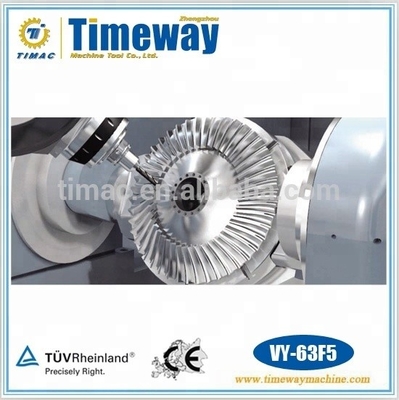

Being developed by the European technology jointly,MC-VYseries Vertical 5-axis Machining Center possesses the srtong processing ability of complicated parts and the axcellent handing .It is in accordance with the technical standards and ergonomics principles of Europe ,One time of loading and clamping can realize the precision processing of complicated and irregular parts.It is particularly applicable for industries of aviation,medicine,mold,automobile and electricity.
Specification
Specifications | Units | VY-80F5 | VY-63F5 | VY-50F5 | ||
Travel | X-axis travel | mm | 1000 | 800 | 600 | |
Y-axis travel | mm | 1400 | 1200 | 800 | ||
Z-axis travel | mm | 600 | 600 | 400 | ||
A-axis travel | deg. | ±135° | ±135° | ±135° | ||
C-axis travel | deg. | Continuous 360 | Continuous 360 | Continuous 360 | ||
Table | Table dimension | mm | Φ800 | Φ660 | Φ500 | |
T-slot (Dimension*Distance*Quantity) | mm | 18*6*125 | 18*5*125 | 18*4*100 | ||
Max.load | kg | 1200 | 800 | 500 | ||
Spindle | Spindle type | HSK-A63 | HSK-A63 | HSK-A63 | ||
Spindle speed | rpm | 18000 | 18000 | 18000 | ||
Main motor power | kw | 34 | 34 | 34 | ||
Precision | Location precision X/Y/Z | mm | 0.008 | 0.006 | 0.005 | |
Repeated location precision X/Y/Z | mm | 0.005 | 0.003 | 0.002 | ||
A/C | ″ | ±5 | ±5 | ±5 | ||
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
