| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package or As customer's requirement |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 4860x3600x3460mm | Weight (T): | 12 T |
| Table Size (mm): | 630x630 | CNC Control System: | FANUC |
| Number Of Axes: | 4 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 800 | Table Travel (Z) (mm): | 1100 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 1 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1500 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Flexible Manufacturing | Warranty: | One Year |
| Voltage: | 380V/50Hz Or Order | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Custom-made | Worktable Size: | 630x630mm |
| Rotary Worktable: | 1° Or 0.001° | T-slots: | 5-18-100 |
| Tool Magazine Capacity: | 24tools | ATC Tool Diameter: | 112/200mm |
| ATC Tool Length: | 300 | ATC Tool Weight: | 18kg |
| ATC Tool Change Time: | 5sec | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Advertising Company |
| Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Uzbekistan, Australia | Core Components: | FANUC |
| Rapid Feed Speed(m/min): | 24/24/24 | Port: | China Ports |
Specification | Unit | HMC630 |

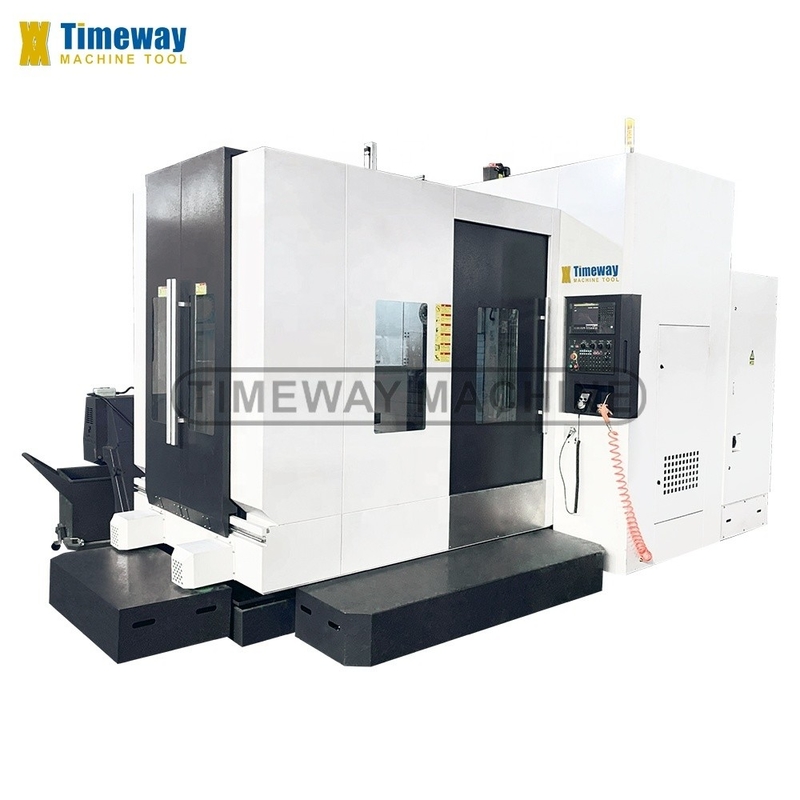

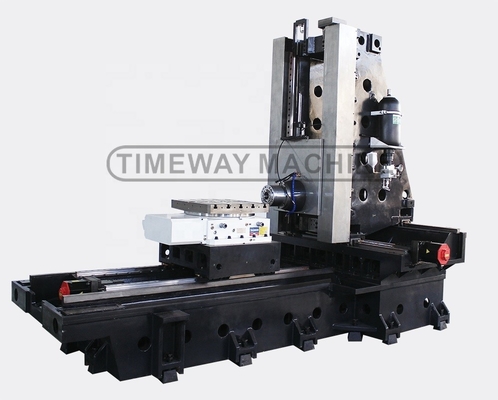

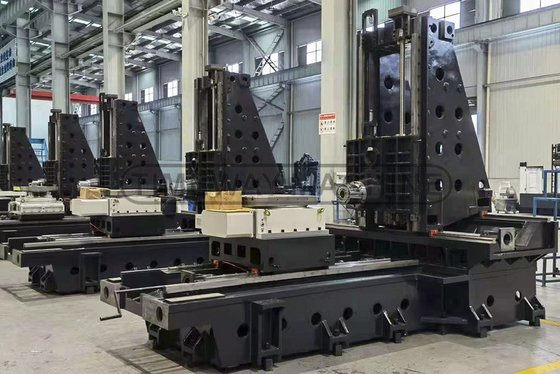

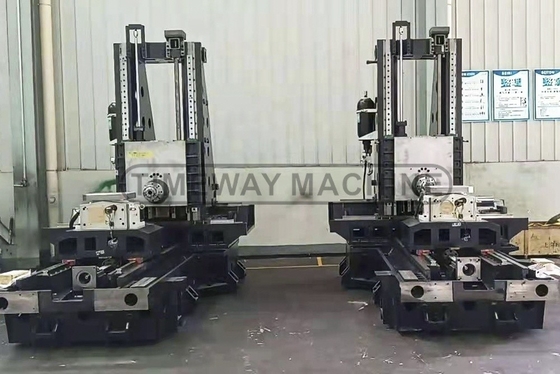

Machine structure | / | Positive T-type |
Capacity | ||
X-axis travel | mm | 1100 |
Y-axis travel | mm | 800 |
Z-axis travel | mm | 1100 |

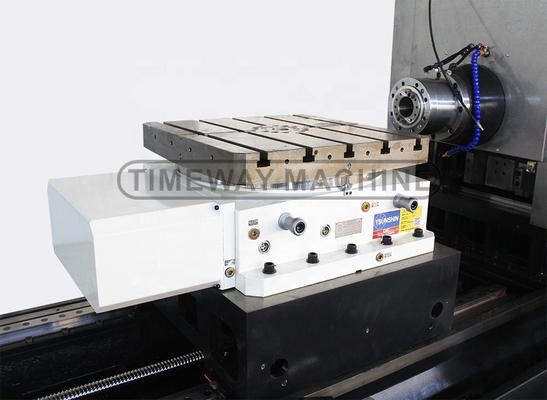

Table (B-axis) | ||
B-axis servo motor torque (FANUC) | / | Bis22 |
Table size | mm | 630×630 |
Table number | pcs | 1 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | / | 5-18-100 |
Table rotation speed | rpm | 16.6 |
Loading capacity | kg | 1500 |
Locking force (35kg / cm2) | kg/m | 5000 |
Spindle | ||
Distance spindle center to table | mm | 50-850 |
Distance spindle nose to table center | mm | 125-1225 |
Spindle taper | / | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor (FANUC) | / | bis30/bis30/bis30 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 |
X/Y/Z-axis rails type | - | X/Z: Linear/Y: sliding |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | " | ±10" |

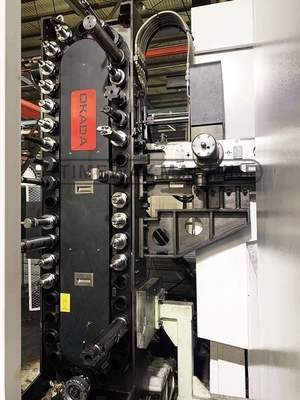

Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 5 |
Max. tool weight | kg | 18 |
Max. tool diameter | mm | Φ112/Φ200 |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 40 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 12000 |
Overall dimension (LxWxH) | mm | 4860×3600×3460 |
CNC system | / | FANUC |
√ FANUC 0i MF CNC system √ X/Z: Linear guide rails, Y: Sliding guide rail √ Taiwan BT50 spindle, 6000rpm √ Taiwan NC rotary table (B-axis) √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
