820x1300 Table Size Double Column Gantry CNC Milling Machine for Heavy-Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $200,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package or As customer's requirement |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 3500x2400x3200 Mm | Weight (T): | 10 T |
| Table Size (mm): | 820x1300 | CNC Control System: | FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 12500 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 5999 - 6000 R.p.m | Spindle Motor Power(kW): | 15 Kw |
| Max. Table Load(kg): | 10 Kg | Feed Speed(mm/min): | 15 - 20 Mm/min |
| Min. Time Of Tool Change(s): | 3 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | One Year |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Color: | Custom-made | X/Y/Z-axis Travel: | 1000mm/1200/600mm |
| Worktable Size: | 1300x820mm | Model: | GMC1000 |
| Product Name: | Gantry CNC Machining Center | Machine Type: | Gantry CNC Milling Machine |
| Name: | Cnc Gantry Machining Center | Number Of Axis: | 3 |
| Keywords: | Gantry Cnc Milling Machine | CNC System: | FANUC CNC System |
| Showroom Location: | Egypt, Italy, France, Peru, India, Mexico, Thailand, South Africa, Malaysia, Australia | Core Components: | Motor |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Port: | China Port |
Product Description

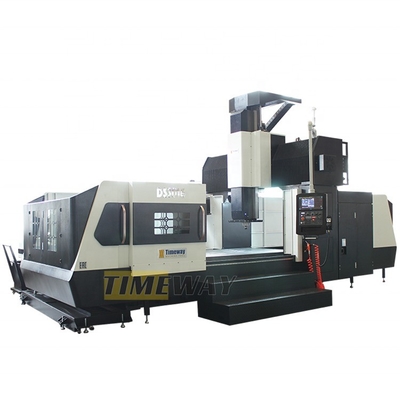

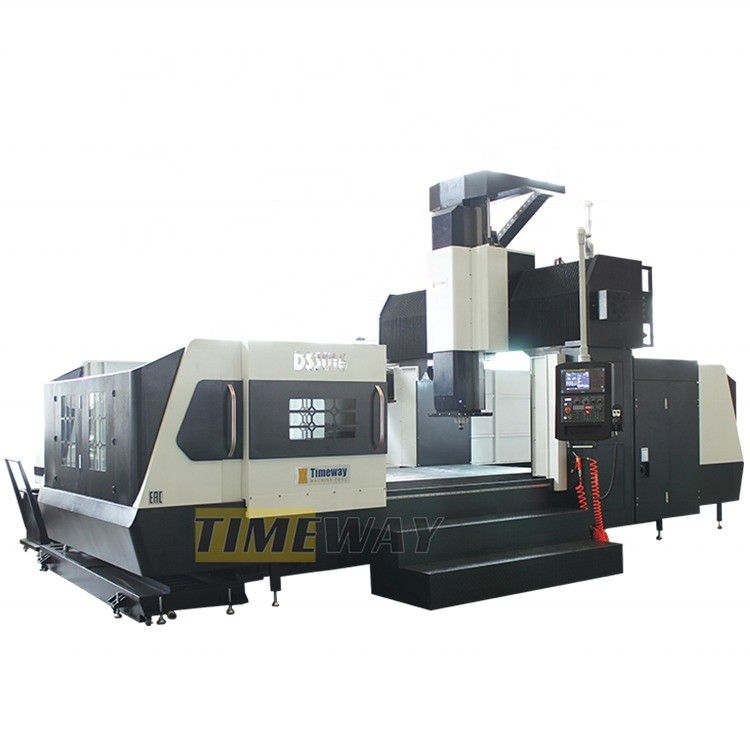

Gantry Machining Center
Products Description
The machine is widely suitable for general machinery, automobilem, aerospace, printing and
packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process.
packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process.
Feature：

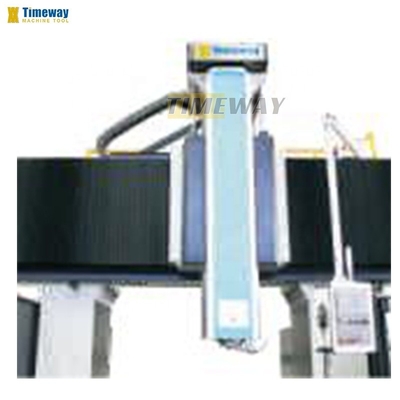

Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Technical Parameter：
Specification | Unit | GMC1000 |
X-axis travel | mm | 1000 |
Y/Z-axis travel | mm | 1250/600 |
Loading capacity | kg | 800 |
Gantry width | mm | 1050 |
Table width | mm | 820 |
Table length | mm | 1300 |
Main motor power | kw | 11/15 |

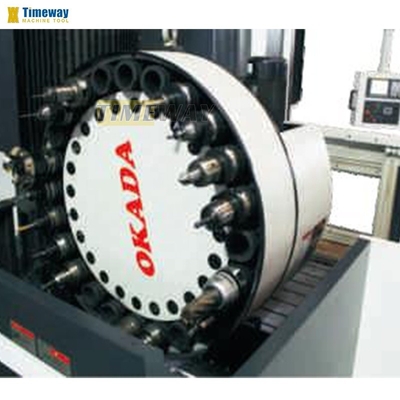

ATC capacity (style) | tools | 24（Disc） |
Machine weight | tons | 10 |
Standard Accessories：
Optional Accessories：
1. Resin sand casting
2. X, Y rails adopts imported linear guideway,Z rail is quenching -plastic sliding guide rail pair
3. Imported rolling screw, rack, gear box
4. X rail adopt stainless steel telescopic cover,
Y rail adopts plastic accordion cover
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
6. Taiwan production pneumatic cylinder
7. Taiwan ATC, carousel type, disc type,chain type are available as option
8. Imported bearings for leadscrews
9. Famous brand coupling
10. Headstock balancing system is Nitrogen balance system as option
11. Work lamp
12. Pilot lamp
13. USB and LAN interface
14. Manual pulse generator (MPG)
15. Centralized automatic lubrication system
16. Cooling system
17. Heat exchanger for electrical cabinet
18. Leveling blocks & bolts
19. Toolbox and tools
20. Double spiral chip conveyor

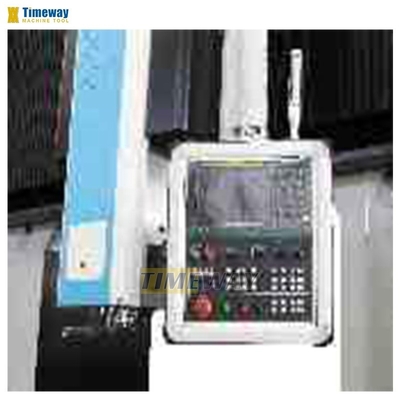

21. CNC controller: KND,GSK, HNC (China) SIEMENS, FANUC,MITSUBISHI, FAGOR,etc
2. X, Y rails adopts imported linear guideway,Z rail is quenching -plastic sliding guide rail pair
3. Imported rolling screw, rack, gear box
4. X rail adopt stainless steel telescopic cover,
Y rail adopts plastic accordion cover
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
6. Taiwan production pneumatic cylinder
7. Taiwan ATC, carousel type, disc type,chain type are available as option
8. Imported bearings for leadscrews
9. Famous brand coupling
10. Headstock balancing system is Nitrogen balance system as option
11. Work lamp
12. Pilot lamp
13. USB and LAN interface
14. Manual pulse generator (MPG)
15. Centralized automatic lubrication system
16. Cooling system
17. Heat exchanger for electrical cabinet
18. Leveling blocks & bolts
19. Toolbox and tools
20. Double spiral chip conveyor
21. CNC controller: KND,GSK, HNC (China) SIEMENS, FANUC,MITSUBISHI, FAGOR,etc
1. Special milling head: Lengthen milling head, right angle milling head, universal milling head
2. Circular Coolant Nozzle
3. Coolant through spindle (CTS)
4. Spindle oil cooler
5. Air conditioner (A/C) for electrical cabinet
6. Auto. Tool length measurement system
7. Auto. Workpiece measurement systems
8. Chain type chip conveyor
2. Circular Coolant Nozzle
3. Coolant through spindle (CTS)
4. Spindle oil cooler
5. Air conditioner (A/C) for electrical cabinet
6. Auto. Tool length measurement system
7. Auto. Workpiece measurement systems
8. Chain type chip conveyor
