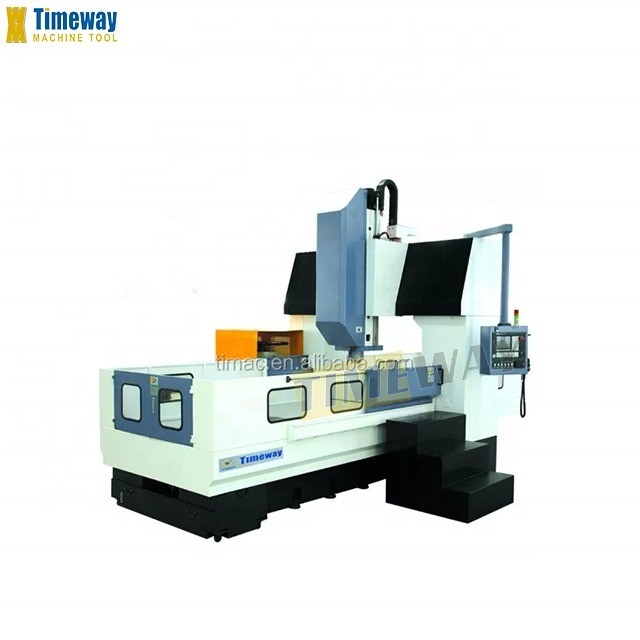

Double Column CNC Vertical Gantry Machining Center with 24-Tool Magazine Capacity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $200,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package or as customer's requirement |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 5800x4000x4000 Mm | Weight (T): | 20 T |
| Table Size (mm): | 1250x2000 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 2200 |
| Table Travel (Y) (mm): | 1600 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.022 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Range Of Spindle Speed(r.p.m): | 50 - 3000 R.p.m | Spindle Motor Power(kW): | 18.5 Kw |
| Max. Table Load(kg): | 5000 Kg | Feed Speed(mm/min): | 1 - 4000 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 380V/50Hz | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Y-axis Travel: | 1600 Mm |
| X-axis Travel: | 2200 Mm | Worktable Size: | 1250x2000 Mm |
| Number Of Axis: | 3 | Product Name: | Double Column Gantry Type Cnc Machining Center |
| Machine Type: | Cnc Gantry Machining Center | Keywords: | Gantry Machining Center |
| CNC System: | FANUC CNC System | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Italy, Philippines, Peru, Indonesia, Mexico, Russia, Thailand, South Africa | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15 | Port: | China Port |
Product Description
Products Description

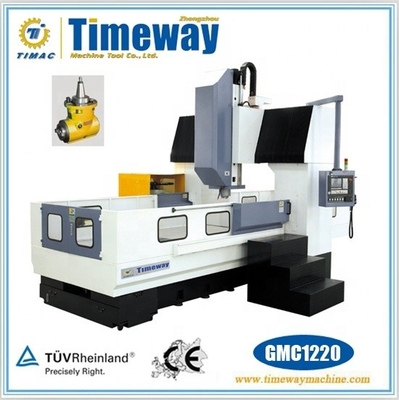

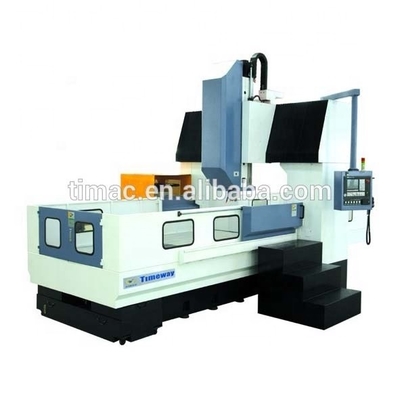

Double Column CNC Vertical Gantry Machining Center
The machine is widely suitable for general machinery, automobile, aerospace, printing and packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process.
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term.
X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; high-precision, high-speed, strong cutting and high rigid.
Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool.
For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term.
X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; high-precision, high-speed, strong cutting and high rigid.
Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool.
For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Specification | Unit | GMC1220 | GMC1430 |
Worktable size | mm | 1250x2000 | 1400x3000 |
T-slot (Number/Width/Distance) | mm | 7-22-180 | 7-22-180 |
X/Y-axis rapid feeding speed | m/min | 15 | 15 |
Z-axis rapid feeding speed | m/min | 10 | 12 |
X/Y/Z-axis repositioning accuracy | mm | 0.012/0.012/0.012 | 0.012/0.012/0.012 |
Max.diameter/length of tool | mm | Φ130/300 | Φ127/300 |
Max. weight of tool | kg | 15 | 15 |
Overall dimension | mm | 5800x4000x4000 | 8000x4000x4000 |
Standard Accessories:
Optional Accessories:
FANUC 0i MD control system Round plate type magazine The highest spindle speed 3000rpm(gear transmission, hydraulic two shifts, suitable for low speed heavy cutting) Hydraulic driving Z-axis automatic balancing system The base protection | Chain tool magazine with 30 tools Chain tool magazine with 42 tools Double helix chip conveyor and chain chip conveyor Semi-protection guard Technical Parameter Fixed Beam Gantry Frame-type Series |
