24-Tool Magazine Capacity G-Series CNC Fixed Beam Machining Center for Speed Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $650,000.00/sets 1-2 sets |
| Packaging Details: | Iron Frame |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | Gantry | Dimension(L*W*H): | 9300x5300x6000 Mm |
| Weight (T): | 38 T | Table Size (mm): | 2500x1200 |
| CNC Control System: | FANUC | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 3000 | Table Travel (Y) (mm): | 1800 |
| Table Travel (Z) (mm): | 1000 | Positioning Accuracy (mm): | ±0.025 |
| Repeatability (X/Y/Z) (mm): | ±0.012 | Range Of Spindle Speed(r.p.m): | 0 - 3000 R.p.m |
| Spindle Motor Power(kW): | 22 KW | Max. Table Load(kg): | 38000 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | According To Customers' Need | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC System: | FANUC Or SIEMENS Or Others |
| Control Type: | Automatic | Struceture Type: | Fixed Beam And Column |
| Guideway Type: | Hard Guideway And Static Pressure Guide | Number Of Axis: | 3 |
| X-axis Travel: | 3000 | Accuracy: | High Precision |
| Y-axis Travel: | 1800 | Product Name: | Portal Milling Machine |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Italy, Philippines, Peru, Indonesia, India, Russia, Thailand, Chile, South Africa |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 10 |
| Port: | China Port | ||
Product Description
Products Description

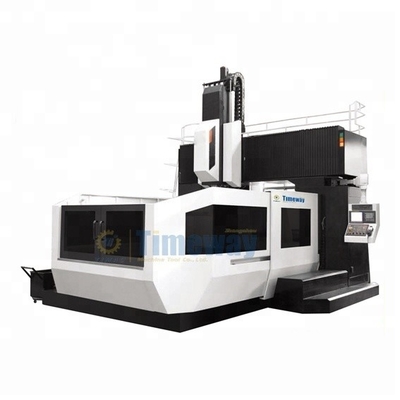

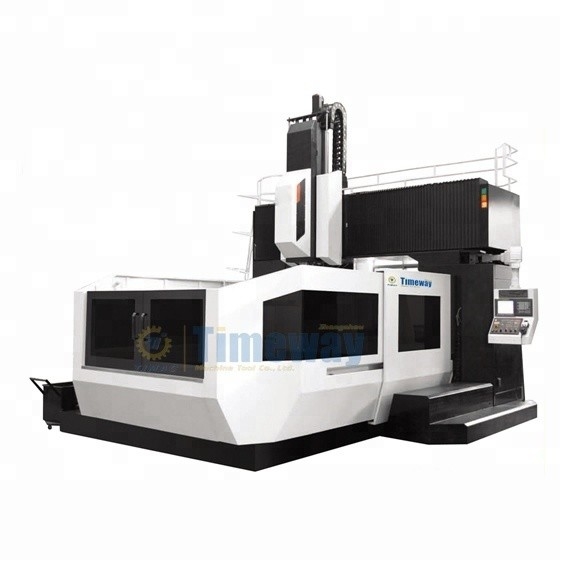

G-Series CNC Fixed Beam Gantry Frame-type Machining Center

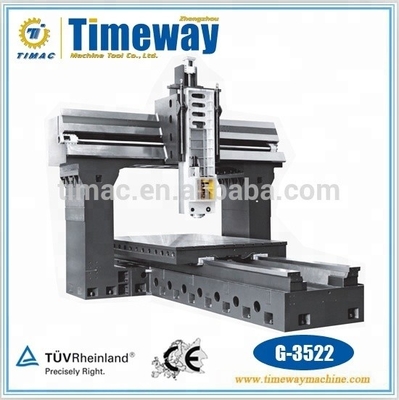

G-series gantry machining center adopts the closed gantry frame structure consisting of bed ,column and beam ,with features of high rididity and high stability.The machine tool can finish the processing of milling ,boring ,drilling ,tapping and sinking.It is mainly designed for the processing of automobile sheet metal mold,plastic mold ,precision machinery parts and aerospace and shipbuilding. Equipped with the accessory milling head ,it can realize the five-face processing at one time of clamping ,serving several purposes.It can effectively enhance
the processing precision and processing efficiency.
The casting of the machine tool is made of high strength inoculated cast iron and high quality resin bonded sand,which is treated by multiple aging techniques to ensure the rigidity and stability of the machine tool.
Three axis are all equipped with the sliding guide treated by the high-frequency quenching to enhance the whole bearing capacity and durability.
the processing precision and processing efficiency.
The casting of the machine tool is made of high strength inoculated cast iron and high quality resin bonded sand,which is treated by multiple aging techniques to ensure the rigidity and stability of the machine tool.
Three axis are all equipped with the sliding guide treated by the high-frequency quenching to enhance the whole bearing capacity and durability.
Specification | Unit | G-3016/G-3516 |
Interval of two columns | mm | 1600 |
Spindle speed | rpm | 3000 |
Max.output torque | Nm | 560/662 |
Guide type X/Y/Z | Hard guide | |
Cutting and feeding speed | mm/min | 5-8000 |
Max.length of tool | mm | 300 |
Tool exchange time | sec. | 3.5/5.5 |

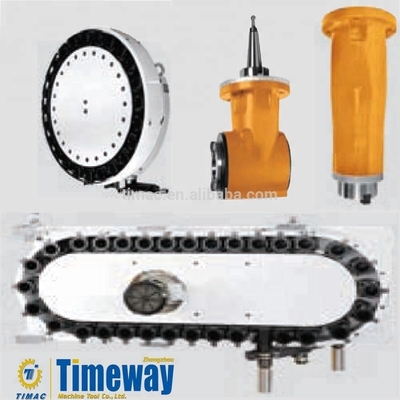

FANUC CNC system Direct-connected spindle speed is 3000rpm Both sides of screw chip removal device Spindle with two-stage speed change box Electric tank with air condition Air filtration purification device Spindle oil cooler Cooling device Hydraulic system Air curtian protection Air gun Machine protection shield Linghting system Three color light alarm Cutting blow Communication interface Handheld electronic hand wheel Tools and tool box Horizontal adjustment bolts and shim Technical documents | SIEMENS CNC system Gear-type spindle speed is 6000rpm Belt-type spindle speed is 6000rpm Disc-type tool magazine Chain-type tool magazine Vertical and Horizontal tool magazine CNC rotary table Grating scale Water gun Accessory head grabbed automatically Attachment head loss prevention system Fully-auto. 90 degree milling head Semi-auto. 90 degree milling head Manual 90 degree milling head Extended milling head Side milling head Flat right-angle milling head Column heightening Z-axis travel is 1250mm/1500mm Specifications List |
Positive Comments From Customers
Company Introduction

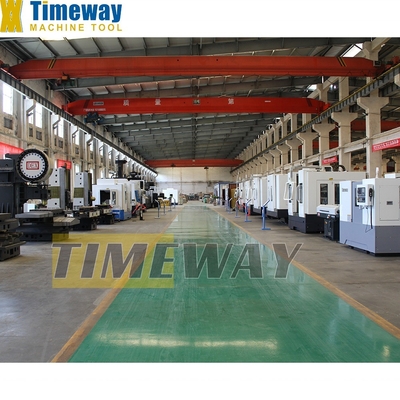

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
