Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
 |

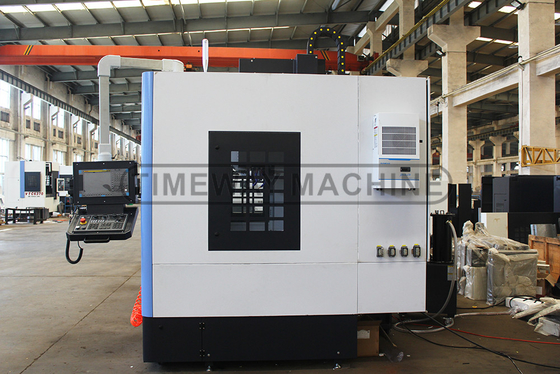

Timeway Machine Center 4-Axis VERTICAL CNC Milling Machine with FANUC or SIEMENS CNC Syste
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 150 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2600x3100mm | Weight (T): | 10 T |
| Table Size (mm): | 1360x700 | CNC Control System: | FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1200 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 1 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 1 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Flexible Manufacturing | Warranty: | One Year |
| Voltage: | 380V/50Hz | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Color: | According To Customer's Requirement |
| Table Size: | 1360x700mm | Number Of Axis: | 5 |
| X-axis Travel: | 1200 | Y-axis Travel: | 700 |
| Product Name: | 5 Axis Cnc Milling Machine | Machine Type: | Vertical CNC Milling Machine |
| Product Type: | Cnc Milling Machines | Keywords: | Cnc Milling Machine 5 Axis |
| Name: | Cnc Milling Machine For Metal | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | Canada, Italy, France, Brazil, Mexico, Russia, Romania, Australia | Rapid Feed Speed(m/min): | 24/24/15 |
| Core Components: | CNC System | ||
Product Description

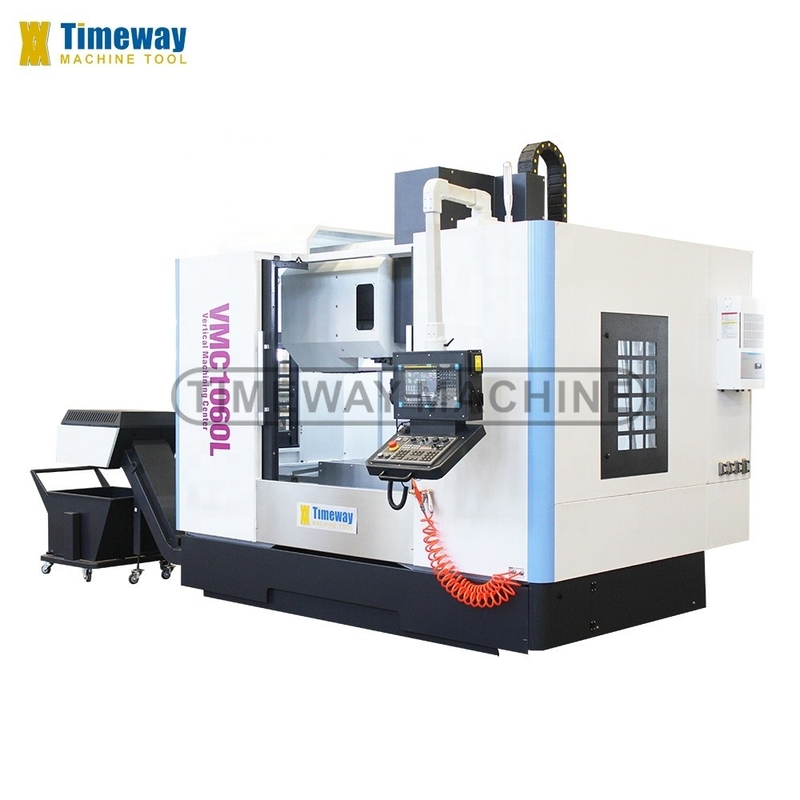

CNC Vertical Machining Center
Products Description
Applications of the vertical machining center:
The VMC series vertical machining milling center is a vertical machining center controlled by CNC FANUC or SIEMENS (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC1270L |
X/Y/Z-axis guideway type | / | X/Y: Linear guide rail, Z: Sliding guide rail |
Capacity | ||
X-axis travel | mm | 1200 |
Y-axis travel | mm | 700 |
Z-axis travel | mm | 700 |
Table | ||
Table size | mm | 1360×700 |
Loading capacity | kg | 1200 |
T-slots (No./width/pitch) | mm | 5-18-152.5 |
Distance spindle nose to table center | mm | 140-840 |
Spindle | ||
Distance spindle center to column | mm | 785 |
Spindle taper | / | BT-50 (155) |
Spindle speed | r/min | 6000 |
Main motor power | kw | 15/18.5 |
3-axis (X/Y/Z) | ||
X/Y/Z-axis servo motor power (MITSUBISHI) | kw | 3/3/3 |
X/Y/Z-axis servo motor (FANUC) | Nm | β22/β22/β30 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/15 |
X/Y/Z-axis cutting feed speed | mm/min | 0-10000 |
Accuracy | ||
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 |
Tool magazine (ATC) | ||
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 2.4 |
Max. tool weight | kg | 18 |
Max. tool diameter | mm | Φ112/Φ200 (Empty) |
Max. tool length | mm | 300 |
Others | ||
Power supply | KVA | 30 |
Air pressure require | kg/cm2 | 6-8 |
Z-axis balancing system | / | Heavy casting |
Machine weight | kg | 10000 |
Overall dimension (LxWxH) | mm | 3820×2600×3100 |
CNC system | / | FANUC/MITSUBISHI |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT50 spindle, 6000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |

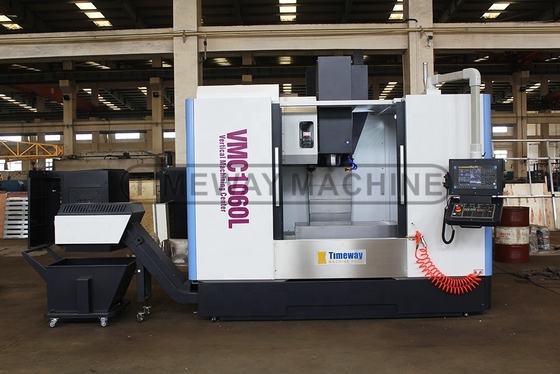

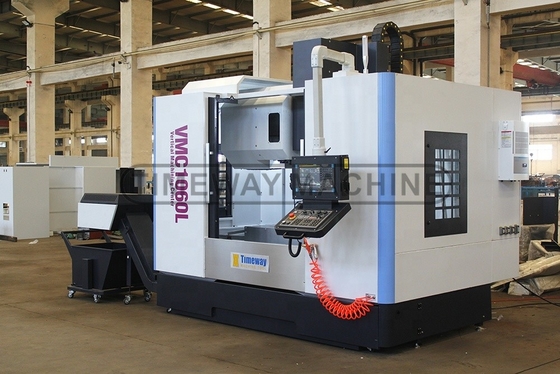

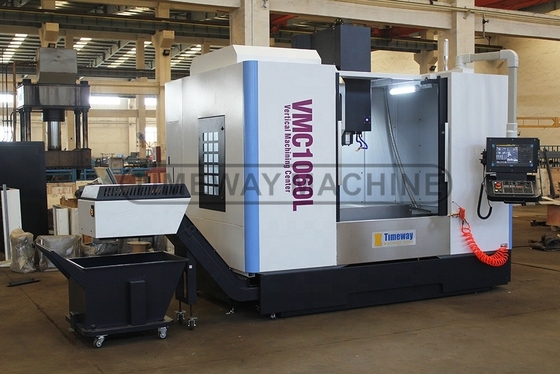

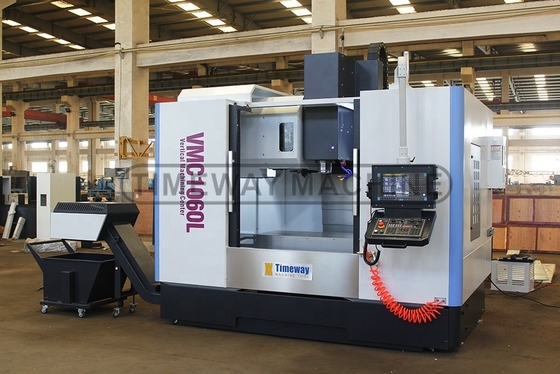

Machine Details
========================
>> Taiwan large torque BT50 spindle with 6000rpm speed.
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
