Chinese GNC61CNC System 5-Axis Vertical Machining Center for Complex Workpiece Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $330,000.00/sets >=1 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | 5 |
|---|---|---|---|
| Type: | VERTICAL | Dimension(L*W*H): | 3100*4970*3030mm |
| Weight (T): | 15 T | Table Size (mm): | Other |
| CNC Control System: | GSK, FANUC, KND, Siemens | Number Of Axes: | 5 |
| Table Travel (X) (mm): | 900 | Table Travel (Y) (mm): | 800 |
| Table Travel (Z) (mm): | 540 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Range Of Spindle Speed(r.p.m): | 20 - 10000 R.p.m |
| Spindle Motor Power(kW): | 30 | Max. Table Load(kg): | 1400 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 32 |
| Key Selling Points: | Automatic | Warranty: | One Year |
| Voltage: | 380V/50Hz | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Worktable Size: | Other |
| Number Of Axis: | 5 | Spindle Speed: | 12000rpm |
| C-axis Swiveling Angle: | Any 360deg | X/Y/Z Axis Travel: | 900/800/540mm |
| A-axis Speed: | 30rpm | C-axis Speed: | 600rpm |
| CNC System: | Chinese GNC61CNC System | Weight: | 15000kg |
| Power: | 30kw(spindle) | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction Works , Energy & Mining, Food & Beverage Shops |
| Showroom Location: | Turkey, Brazil, Saudi Arabia, India, Mexico, Spain, South Africa, Kazakhstan, Malaysia | Core Components: | Gear |
Product Description
Product Description

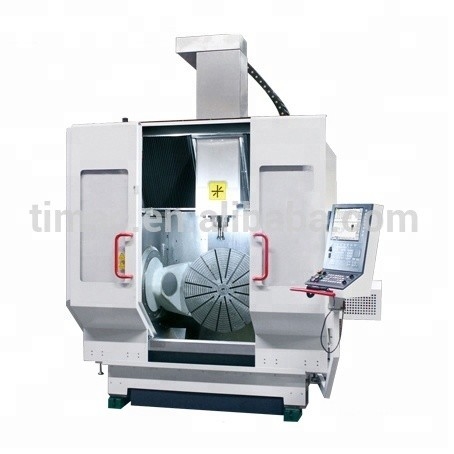

five-axis machining center
Specification

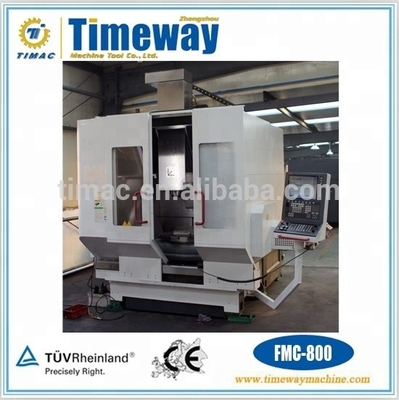

Specifications | Units | VMC800 | FMC800 | FMC800T (with turning) | |||
Capacity | Max. swiveling diameter of workpiece | mm | - | Φ1100 | Φ1100 | ||
Max. milling width | mm | 1140*806 | 800 | 800 | |||
Max. milling height | mm | 540 | 540 | 540 | |||
The diameter of worktable | mm | 1140*806 | Φ800; Φ625 | Φ800; Φ625 | |||
Max. weight of workpiece | kg | 1400 | 1400 | 1400; 700(turning) | |||
Travel | X/Y/Z-axis travel | mm | 1100/800/540 | 900/800/540 | 900/800/540 | ||
A-axis swiveling angle range | ° | - | -130°- +130° | -130°- +130° | |||
C-axis rotary angle range | ° | - | Any-angle | Any-angle | |||
Max. feed speed | X/Y/Z-axis | m/min | 48; 60 | 48; 60 | 48; 60 | ||
A-axis | rpm | - | 30 | 30 | |||
C-axis | rpm | - | 75 | 600 | |||
Machine weight | N.W | kg | 14000 | 15000 | 15000 | ||
CNC system | Model | GNC61 CNC system | |||||
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
