1. The optimal spindle support.
2. Use for reference classic structure of vertical coordinate boring, have better spindle rigidity.
3. CNC rotary swing workbench realize structure of double-wall support.
4. Y-axis adopts four guideways as support and main drive located in the center.
5. Circular-type tool magazine combined with lathe bed of machine tool, simple structure and save space.
 |
16kW Chinese GNC61CNC System CNC Five Axes Vertical Machining Centre for Speed Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $250,000.00/sets 1-2 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | VERTICAL | Dimension(L*W*H): | 2500*4200*2400mm |
| Weight (T): | 4 T | Table Size (mm): | Other |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 400 |
| Table Travel (Y) (mm): | 380 | Table Travel (Z) (mm): | 350 |
| Positioning Accuracy (mm): | Other | Repeatability (X/Y/Z) (mm): | Other |
| Range Of Spindle Speed(r.p.m): | 0 - 20000 R.p.m | Spindle Motor Power(kW): | 16 ;7.5 |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 22 | Key Selling Points: | Automatic |
| Warranty: | 1year | Voltage: | 380V/50Hz |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size: | Other | Color: | According To Customer's Requirement |
| Worktable Diameter: | 450mm | Spindle Speed: | 16000rpm |
| X/Y/Z Axis Travel: | 400/380/350mm | A-axis Speed: | 30rpm |
| C-axis Speed: | 80rpm | CNC System: | Chinese GNC61CNC System |
| Number Of Axis: | 5 | Applicable Industries: | Manufacturing Plant, Other |
| Showroom Location: | Saudi Arabia, Mexico, Thailand, Argentina, Algeria, Malaysia | Core Components: | Engine |
| Port: | China Port | ||
Product Description
Product Description
Five-axis Vertical CNC Machining Center
Advantage of Machine Tool
1. Improved gantry framework and the whole machine structure design.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
Specification
Specifications | Units | FMC-400 | ||
A-axis | Type of drive | Direct-drive by torque motor | ||
Torque of drive S1/S6 | N.m | 689/1250(single-drive) (single-drive) | ||
C-axis | Type of drive | Direct-drive by torque motor | ||
Torque of drive S1/S6 | N.m | 315/582 | ||
Max. feed speed | X/Y/Z-axis | m/min | 40; 48 | |
A-axis | rpm | 30 | ||
C-axis | rpm | 80 | ||
Min setting unit | X/Y/Z-axis | um | 1; 0.1 | |
C-axis | ° | 0.001°; 0.0001° | ||
Positioning accuracy | X/Y/Z-axis | um | 8; 5 | |
A/C-axis | " | 8; 5 | ||
Repositioning accuracy | X/Y/Z-axis | um | 5; 3 | |
A/C-axis | " | 5; 3 | ||
CNC system | Model | GNC61 CNC system | ||
Notes: The series machine tool also have 600Series; 800Series; 1250Series. Among VMC series only is equipped with X/Y/Z-axis, no A/C-axis. FMC-T series standard: Electric spindle with locking and C-axis high speed. but FMC series electric spindle without locking and C-axis low speed. According to customer's requirement, we can provide different specifications rotary worktable. Detailed Images
Main Performance

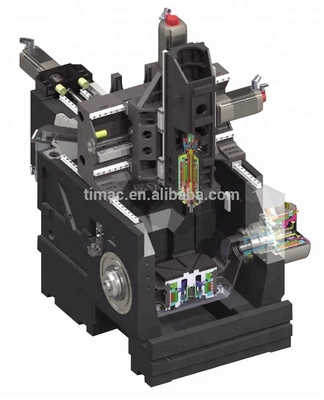

Improved Gantry-frame and Whole-machine Structure Design
Artificial Lidan Bed body
1.Thermal expansion coefficient is only 1/20 of the cast iron, smaller thermal deformation error.
2. Artificial lidan damping are six times that of the cast iron, better vibratory performance.
3. Once forming, greatly save the subsequent processing time and cost.
4. Room temperature curing manufacturing process, the precision machine tool selection of bed materials.
2. Artificial lidan damping are six times that of the cast iron, better vibratory performance.
3. Once forming, greatly save the subsequent processing time and cost.
4. Room temperature curing manufacturing process, the precision machine tool selection of bed materials.
Direct Drive Technology
1. Good dynamic response ability
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-400 and FMC-400T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-400 and FMC-400T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.

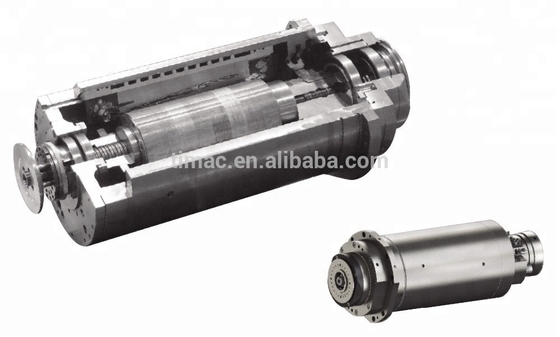

Electric Spindle
1. Milling electric spindle is one of the key parts of machining center, the series spindle is high-speed, precise, high rigid and
large -power electric spindle (Optional milling and turning compound electric spindle with spindle lock and turning function).
2. It is suitable for high efficiency precision machining of aerospace domain integral semal, complex body parts, aviation engine
box parts, spiral umbrella gear parts and mould parts.
large -power electric spindle (Optional milling and turning compound electric spindle with spindle lock and turning function).
2. It is suitable for high efficiency precision machining of aerospace domain integral semal, complex body parts, aviation engine
box parts, spiral umbrella gear parts and mould parts.
Advantage of CNC System
1. Perfect five-axis technology(RTCP, inclined plane machining)
2. High-speed information interaction.
3. High resolution, high precise frequency control scheduling.
4. Precision perception for position or angle.
5. Multi-channel control technology.
6. Systems support wireless probe, tool setting gauge access.
7. Error compensation function: the bidirectional pitch compensation, linearity compensation(including each deflection
compensation) and vertical degree of compensation etc.
8. Secondary development and offline 3D simulation system.
2. High-speed information interaction.
3. High resolution, high precise frequency control scheduling.
4. Precision perception for position or angle.
5. Multi-channel control technology.
6. Systems support wireless probe, tool setting gauge access.
7. Error compensation function: the bidirectional pitch compensation, linearity compensation(including each deflection
compensation) and vertical degree of compensation etc.
8. Secondary development and offline 3D simulation system.
