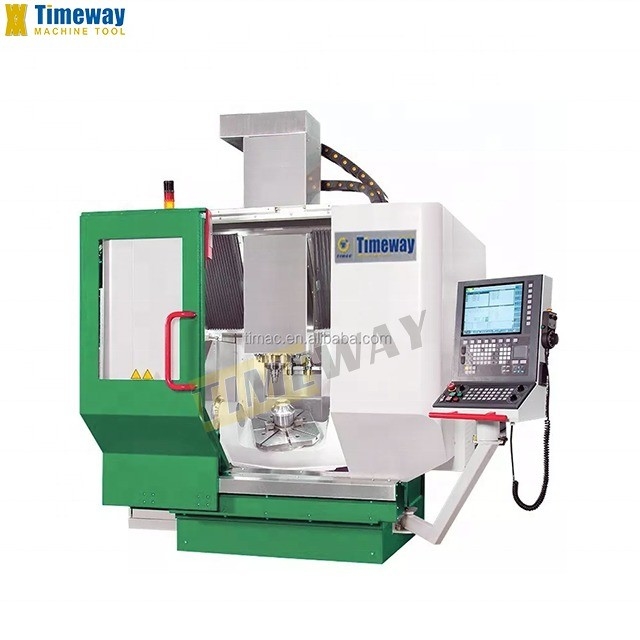

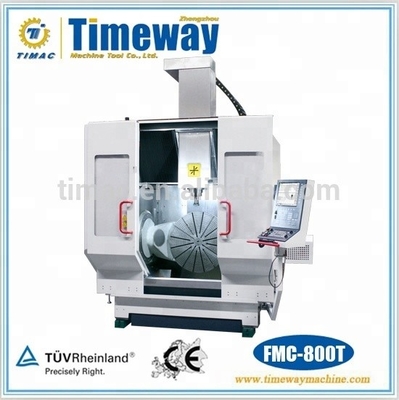

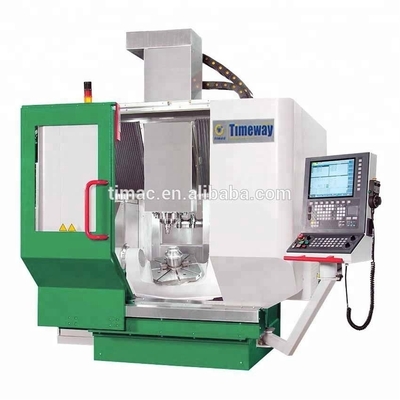

800mm Table Travel Five-axis Vertical CNC Machining Center for Small Batch Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $280,000.00/sets 1-2 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | Other |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2660*4655*2650mm | Weight (T): | 12 T |
| CNC Control System: | FANUC | Number Of Axes: | 5 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 650 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | ±0.012 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Spindle Motor Power(kW): | 15.5 Kw |
| Max. Table Load(kg): | 8 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Voltage: | 380V/50Hz |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Worktable Diameter: | 650 Mm | Max. Weight Of Workpiece: | 1000 Kg |
| Spindle Speed: | 16000 Rpm | A-axis Swiveling Angle: | -130deg To +130deg |
| X/Y/Z Axis Travel: | 800*650*450 Mm | A-axis Speed: | 30 Rpm |
| C-axis Speed: | 600 Rpm | Weight: | 12000 Kg |
| Power: | 15.5kw(spindle) | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Italy, Peru, Indonesia, Mexico, Russia, Thailand, Chile, Colombia, South Africa, Australia | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Products Description
1. Improved gantry framework and the whole machine structure design.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
Specifications | Specifications | Unit | FMC-600 | FMC-600T (with turning) | |
Capacity | Max. swiveling diameter of workpiece | mm | Φ800 | Φ800 | |
Max. milling width | mm | 800 | 800 | ||
Max. milling height | mm | 420 | 420 | ||
The diameter of worktable | mm | Φ650*540 | Φ650 | ||
Max. weight of workpiece | kg | 1000 | 1000; 500(turning) | ||
Travel | X/Y/Z-axis travel | mm | 800/650/450 | 800/650/450 | |
A-axis swiveling angle range | ° | -130°- +130° | -130°- +130° | ||
C-axis rotary angle range | ° | Any-angle | Any-angle | ||
Spindle | Max. spindle torque | N.m | 42/62 | 42/62 | |
Max. spindle speed | rpm | 16000 | 16000 | ||
Spindle motor rated power | kw | 15.5 | 15.5 | ||
Type of tool shank | HSK-A63 | HSK-A63 | |||
Tool center out of the water | Optional | Optional | |||
Spindle directional | Yes | Yes | |||
Positioning lock | No | Yes | |||
A-axis | Type of drive | Direct-drive by torque motor | Direct-drive by torque motor | ||
Torque of drive S1/S6 | N.m | 1880/3480 | 1880/3480 | ||
C-axis | Type of drive | Direct-drive by torque motor | Direct-drive by torque motor | ||
Torque of drive S1/S6 | N.m | 860/1620 | 860/1620 | ||
Max. feed speed | X/Y/Z-axis | m/min | 48; 60 | 48; 60 | |
A-axis | rpm | 30 | 30 | ||
C-axis | rpm | 80 | 600 | ||
Min setting unit | X/Y/Z-axis | um | 1; 0.1 | 1; 0.1 | |
C-axis | ° | 0.001°; 0.0001° | 0.001°; 0.0001° | ||
Full closed-loop control | X/Y/Z-axis | Standard | Standard | ||
A/C-axis | Standard | Standard | |||
Positioning accuracy | X/Y/Z-axis | um | 8; 5 | 8; 5 | |
A/C-axis | " | 8; 5 | 8; 5 | ||
Repositioning accuracy | X/Y/Z-axis | um | 5; 3 | 5; 3 | |
A/C-axis | " | 5; 3 | 5; 3 | ||
Tool magazine | Capacity | 32 | 32 | ||
Max. diameter of tool | mm | Φ80 | Φ80 | ||
Max. length of tool | mm | 300 | 300 | ||
Max. weight of tool | kg | 8 | 8 | ||
Accessory | Wireless workpiece gauge head | um | ±3(Repositioning accuracy) | ||
Tool setting gauge | um | ±3(Repositioning accuracy) | |||
Machine weight | N.W | kg | 12000 | 12000 | |
CNC system | Model | GNC61 CNC system | |||
