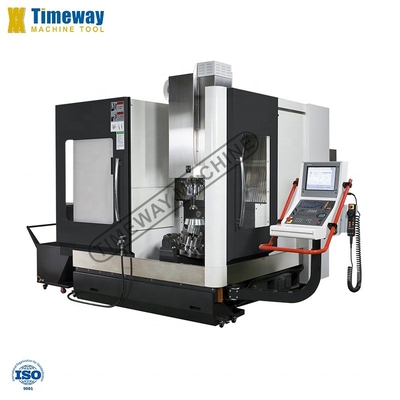

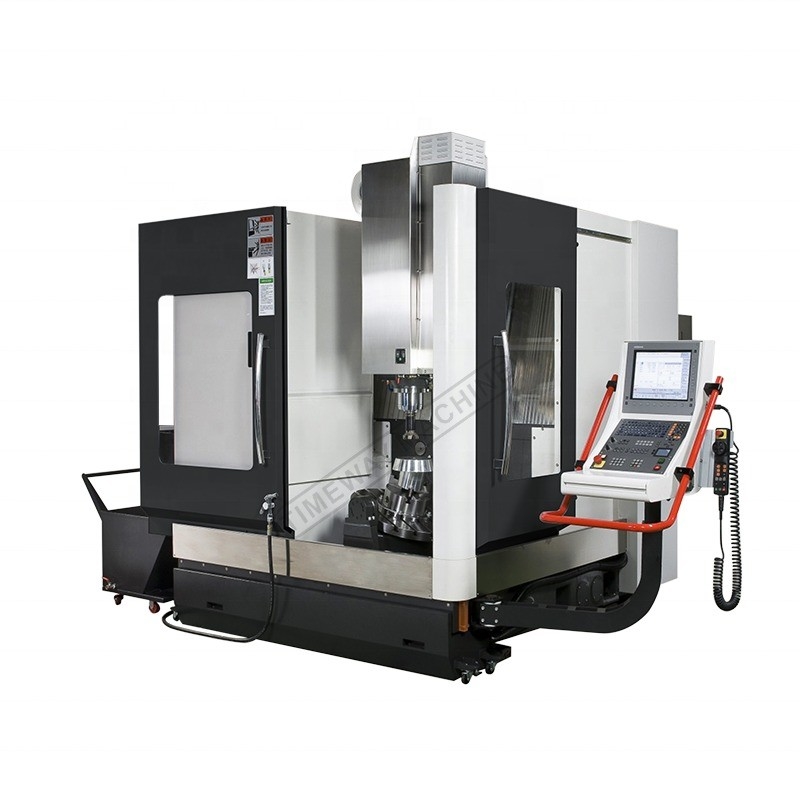

High Precision 5 Axis CNC Vertical Machining Center VF7U with 200 kg Max. Table Load
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300,000.00/sets >=1 sets |
| Packaging Details: | Wooden case(Can be fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | Other |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 4170x4200x3780mm | Weight (T): | 11 T |
| Table Size (mm): | 500X650 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 5 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 450 | Table Travel (Z) (mm): | 400 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 10000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 200 Kg | Min. Time Of Tool Change(s): | 1 |
| Tool Magazine Capacity: | 32, 40 | Key Selling Points: | High-accuracy |
| Warranty: | One Year | Voltage: | 220V/380V |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Machine Center: | Five Axes Linkage Type CNC Machine Center |
| Weight: | 11000kg | Power: | 15kw |
| Worktable Size: | 500*650 | Number Of Axes: | 3/5 Axes |
| X Axis Travel: | 700mm | Y Axis Travel: | 450mm |
| Keywords: | Cnc Vertical Machining | Showroom Location: | Brazil, Indonesia, Mexico, South Korea, Romania, Kazakhstan, Uzbekistan |
| Core Components: | PLC | Rapid Feed Speed(m/min): | 24/24/24 |
| Applicable Industries: | Garment Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company, Other | ||
Product Description
Product Description

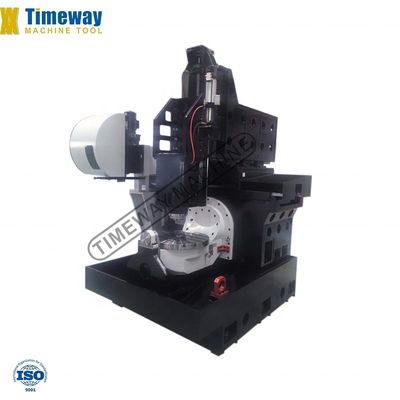

5 axis CNC Vertical Machining Center
Specification
Technical parameters | Unit | VF7U |
Worktable size | mm | 500(650) |
Longitudinal travel(X) | mm | 700 |
Cross travel(Y) | mm | 450 |
Vertical travel(Z) | mm | 400 |
Distance from spindle center to column | mm | 224 |
Distance from spindle nose to table | mm | 200-600 |
Spindle taper (style /diameter) | rmp | BT40/φ150 |
Max.spindle speed | rpm | 10000 |
Main motor | kw | 15 |
Worktable loading capacity | kg | 200 |
Net weight(appox.) | T | 11 |
overall dimension(LxWxH) | mm | 2950x3150x2900 |
