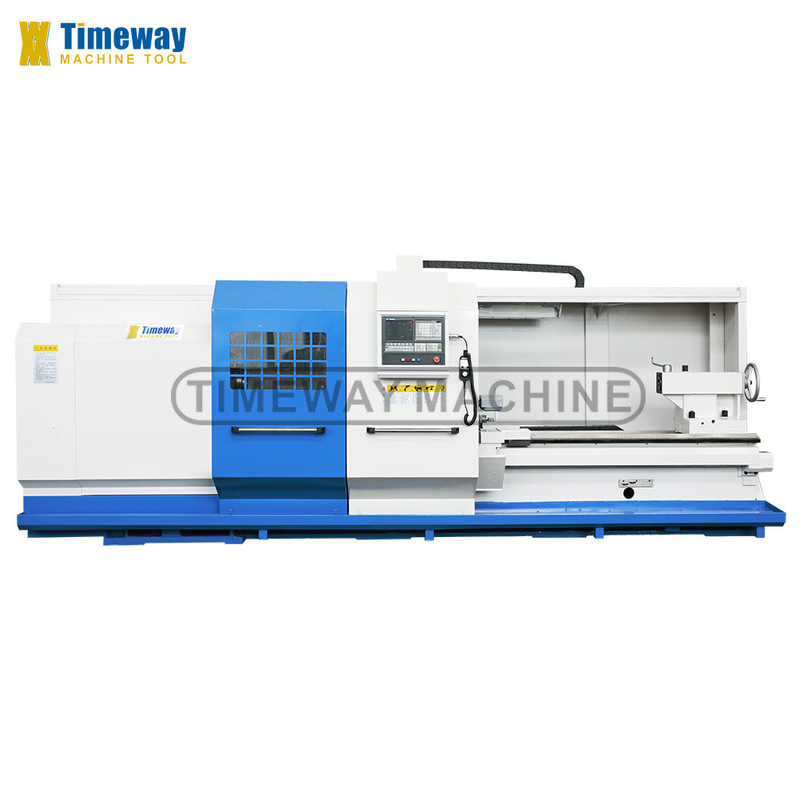

Max. Length of Workpiece 10000mm CNC Heavy Duty Lathe Machine AK-800 for Metalworking
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $90,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 10000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 3000 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 500 Mm | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | CNC Control System: | FANUC |
| Tool Post Stations: | Other | Weight (KG): | 4800 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 8 - 800 R.p.m |
| Travel (Y Axis)(mm): | 0 Mm | Spindle Taper: | Metric 120 |
| Cutting Torque: | 11.5 N.m | Rapid Feed Speed(mm/min): | 1 - 4000 Mm/min |
| Feed Speed(mm/min): | 1 - 1000 Mm/min | Min. Time Of Tool Change(s): | 2.4 |
| Max. Swing Over Bed: | 800 Mm | Max.. Swing Over Cross Slide: | 480 Mm |
| Distance Between Centers: | 1000 Mm | Max. Turning Length: | 850 Mm |
| Bed Width: | 600 Mm | Loading Capacity: | 3000 Kg |
| Spindle Nose: | C11 Mm | Spindle Bore: | 100 Mm |
| Spindle Speed (Manual Steps): | 6-750 (18) Rpm | ||
Product Description
Product Description
The main motor is 15kw high-power frequency motor; equipped with Ф400 standard manual three-jaw self-centering chuck, according to end users requirement different size manual, pneumatic and hydraulic three-jaw and four- jaw chuck can be chosen.

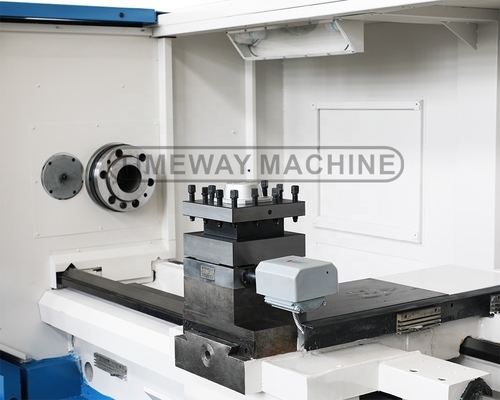

All the lathe machines are equipped with electric turret, free lifting, tool change quickly and easily, there are vertical 4 and 6
station, horizontal 6 station and other electric turret for choice.
Before delivery all lathe machines will be tested by British RENISHAW laser detector for dynamic accuracy detection and
compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.
All the lathe machines are equipped with electric turret, free lifting, tool change quickly and easily, there are vertical 4 and 6
station, horizontal 6 station and other electric turret for choice.
Before delivery all lathe machines will be tested by British RENISHAW laser detector for dynamic accuracy detection and
compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.
Specification
Specification | AK-800 |
Max. swing over bed | 800 mm |
Max.. swing over cross slide | 480 mm |
Distance between centers | 1000/1500/2000/3000/4000/5000/6000/8000/- mm |
Max. turning length | 850/1350/1850/2850/3850/4850/5850/7850/- mm |
Bed width | 600 mm |
Loading capacity | 3000 kg |
Spindle nose | C11 (C15 optional) |
Spindle bore | 100 mm (140 optional) |
Spindle taper | Metric 120 (Metric 150 optional) |
Spindle speed (Manual steps) | 6-750 (18) rpm |
Spindle speed (Manual 4steps stepless) | 8-800 rpm |
Spindle speed (Hydraulic 4steps, stepless) | 8-800 rpm |
Center height | 400 mm |
Chuck size | 400 mm |
X/Z-axis min. feed unit | 0.001/0.001 mm |
X/Z-axis rapid feed speed | 4000/5000 mm/min |
Cross travel (X) | 420 mm |
Tool post type | V4 (V6/H6/H8 optional) |
Tool change time | 2.4 s |
Turret repeat positioning accuracy | 0.008 mm |
Tool section size | 40x40 mm |

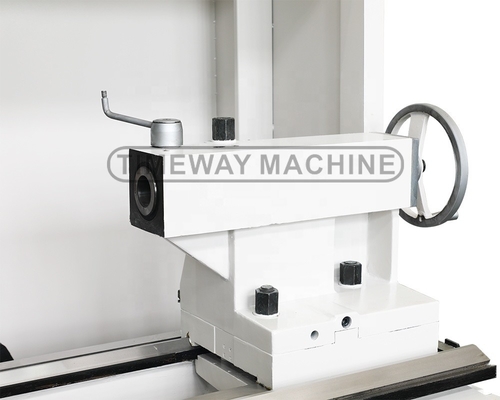

Tailstock quill diameter | 100 mm |
Tailstock quill travel | 250 mm |
Tailstock quill taper | MT6 (MT5 optional) |
Working accuracy | IT6 |
Surface roughness | Ra1.6 µm |
Main motor power | 15 kw |
Machine weight | 4800/5300/5600/6000/6800/7600/8250/9750/- |
Machine length | 3605/4105/4645/5600/6430/7600/8485/10485/- |
Machine width | 2219 mm |
Machine height | 1830 mm |

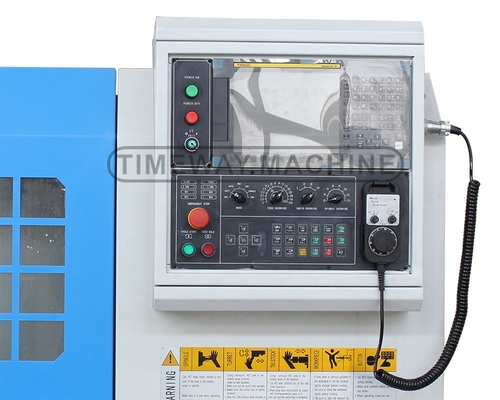

CNC system | FANUC/GSK/SIEMENS |
