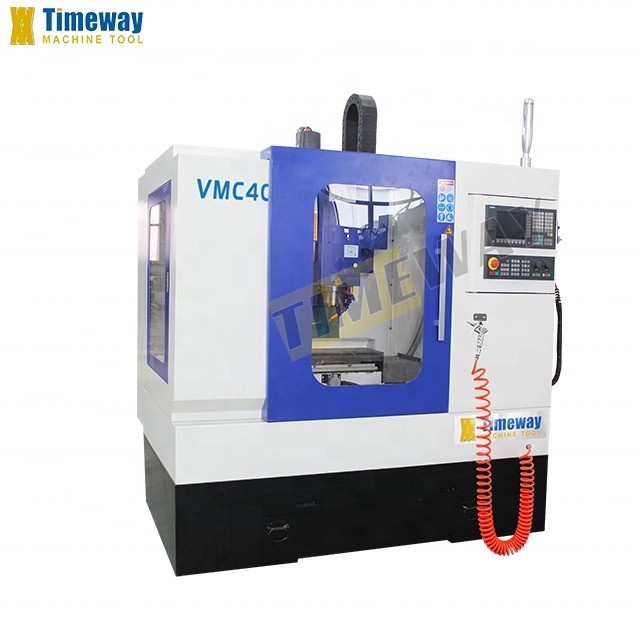

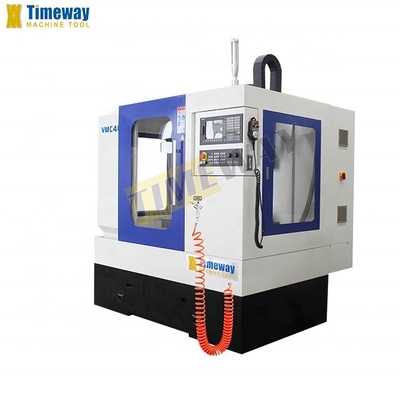

24 Tool Magazine Capacity VMC400 Vertical Machining Center with 2.2Kw High Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | ISO30 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 1460x1940x2180 Mm | Weight (T): | 1.15 T |
| Table Size (mm): | 760x210 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 400 |
| Table Travel (Y) (mm): | 230 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.02 | Repeatability (X/Y/Z) (mm): | ±0.01 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 2.2 Kw |
| Max. Table Load(kg): | 200 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | As Require |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Control System: | GSK Or SIEMENS | Worktable Dimension: | 210x760mm |
| Loading Capacity: | 200kg | Movement Travel: | 400/230/500mm |
| Spindle Speed: | 8000rpm | Application: | Small And Batch Parts |
| Weight: | 1150/1250 Kg | Power: | 2.2Kw |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Italy, Germany, Philippines, Peru, Indonesia, India, Russia, Thailand, Chile, South Africa |
| Core Components: | Other | Port: | China Port |
Product Description
Products Description

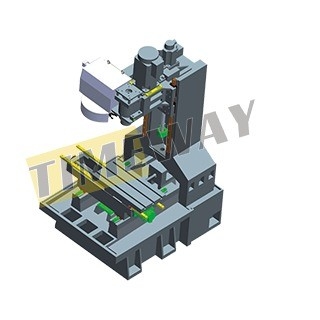

1. The main structure of bed & column adopt the high rigidity cast iron, which through highly efficient quenching heat treatment, ensure the stability and durability of the accuracy.
2. The column design adopts the structure with wide span, which has high rigidity and stability.
3. The counterweight system in the back of the column has the biaxial orientation, make the spindle box’s movement more stable, and effectively restrain the negative effects of vibration.
4. The 3axes are adopted P3 level precision ball screw, through the pre-tighten of double nuts washers to realize the stability of the positioning and repeat positioning accuracy.
5. The 3axes are all equipped with the high precision linear rolling guide, which increase the feed speed and ensure the processing precision.

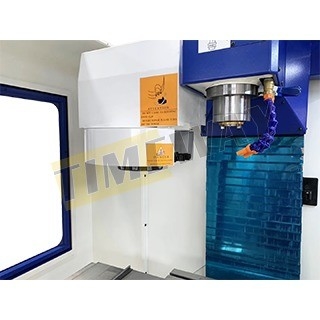

6. Precision high-speed spindle unit and AC servo motor are linked by the synchronous belt, low noise, small vibration and low heat value, can milling, drilling, reaming, boring, and tapping.
7. Long vertical travel(Z axis travel 500mm). Also can be equipped with the optional 4th axis for dividing.
8. Metal plate integrated design, full closed safety guard, good overall and high sealing performace.
2. The column design adopts the structure with wide span, which has high rigidity and stability.
3. The counterweight system in the back of the column has the biaxial orientation, make the spindle box’s movement more stable, and effectively restrain the negative effects of vibration.
4. The 3axes are adopted P3 level precision ball screw, through the pre-tighten of double nuts washers to realize the stability of the positioning and repeat positioning accuracy.
5. The 3axes are all equipped with the high precision linear rolling guide, which increase the feed speed and ensure the processing precision.
6. Precision high-speed spindle unit and AC servo motor are linked by the synchronous belt, low noise, small vibration and low heat value, can milling, drilling, reaming, boring, and tapping.
7. Long vertical travel(Z axis travel 500mm). Also can be equipped with the optional 4th axis for dividing.
8. Metal plate integrated design, full closed safety guard, good overall and high sealing performace.
Specification | Unit | VMC400 | ||
Worktable size | mm | 760x210 | ||
T-slots | mm | 14x3x63 | ||
Max. loading capacity | kg | 200 | ||
X-travel | mm | 400 | ||
Y-travel | mm | 230 | ||
Z-travel | mm | 500 | ||
Distance from spindle nose to table surface | mm | 110-610 | ||
Distance from Spindle axis to column | mm | 320 | ||
Spindle taper | ISO30 | |||
Max. spindle speed | rpm | 8000 | ||
Pressure | Mpa | 0.6 | ||
Spindle | Spindle servo motor power | kw | 2.2 | |
Spindle motor torque | N.m | 27 | ||
X/Y/Z axis | Driving motor torque | N.m | 4 | |
Feeding speed | mm/min | 5000 | ||
Rapid feeding speed | mm/min | 12000 | ||
Coolant pump | Coolant motor power | w | 120 | |
Rated flow | L/min | 25 | ||

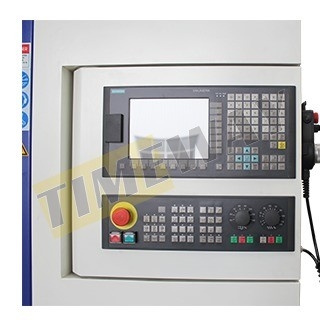

Controller | - | SINUMERIK 808D | ||
Flat screen | - | 7.2" LCD flat screen | ||
Control axis | Multi-axis feed controller | - | Three axes(X/Y/Z) | |
Least command increment | mm | 0.001 | ||
Least input increment | mm | 0.001 | ||
Positioning accuracy | mm | ±0.02 | ||
Repeating accuracy | mm | ±0.01 | ||
N.W/G.W | kg | 1150/1250 | ||
Packing size | cm | 146x194x218 | ||

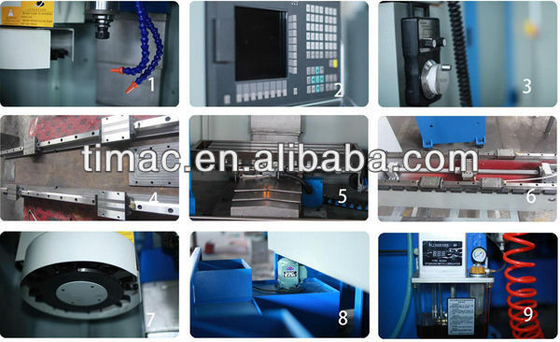

Resin sand casting X、Y、Z rails adopts imported linear guideway X、Y、Z rails adopts stainless steel telescopic cover Standard with belt driven spindle, optional for direct driven spindle Taiwan production pneumatic cylinder Taiwan TAC、carousel type and disc type are available as option Imported bearings for lead screws Import coupling Headstock balancing system have heavy casting or nitrogen balance system as option Full enclosure Rigid tapping Spindle center air blast Work lamp Pilot lamp USB and LAN interface Manual pulse generator(MPG) Centralized automatic lubrication system Cooling system Heat exchanger for electrical cabinet Leveling blocks & bolts Toolbox and tools CNC controller | The 4 th axis wiring NC rotary table Direct driven spindle Circular Coolant Nozzle Coolant through spindle(CTS) Spindle oil cooler Air conditioner(A/C) for electrical cabinet Auto. Tool length measurement system Auto. Workpiece measurement system Screw type chip conveyor Chain type chip conveyor High pressure water flush system Safety door Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
