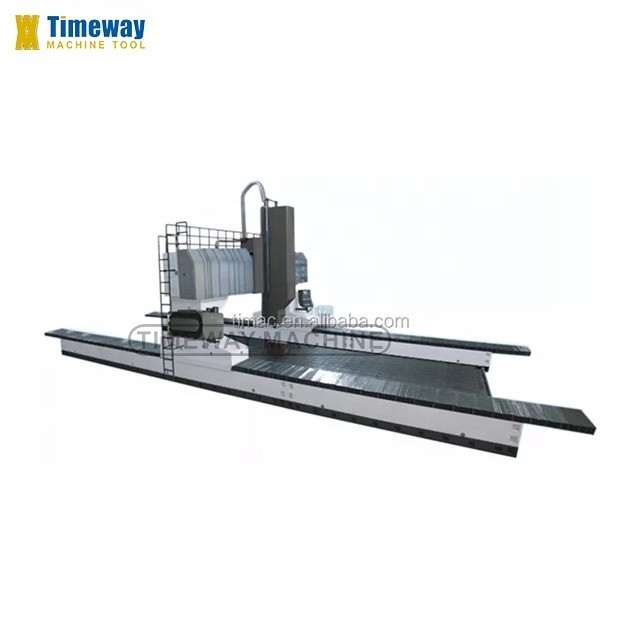

BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $700,000.00/sets 1-2 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 2300x850x512 | Weight (T): | 153 T |
| Table Size (mm): | 4000x12000 | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 12000 |
| Table Travel (Y) (mm): | 5600 | Table Travel (Z) (mm): | 1500 |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 2000 - 2500 R.p.m | Spindle Motor Power(kW): | 37 |
| Max. Table Load(kg): | 7000 Kg | Feed Speed(mm/min): | 8000 - 10000 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 12 Months |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Keywords: | CNC Portal Milling Machine |
| Product Type: | Cnc Milling Machine Metal | Machine Type: | CNC Gantry Machining Center |
| Product Name: | Portal Milling Machine | Table Size: | 4000x12000 |
| Structure: | Fixed Beam Moving Gantry | X-axis Travel: | 12000 Mm |
| Y-axis Travel: | 5600 Mm | Z-axis Travel: | 1500 Mm |
| Number Of Axis: | 3 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Italy, Peru, Indonesia, Mexico, Russia, Thailand, Chile, South Africa, Tajikistan | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Products Description

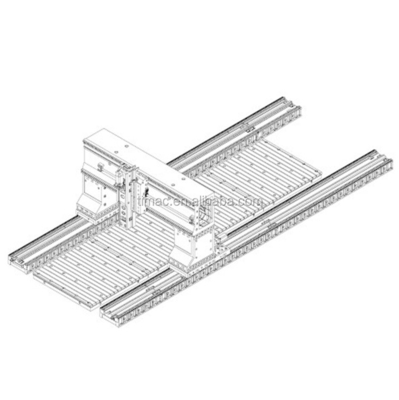

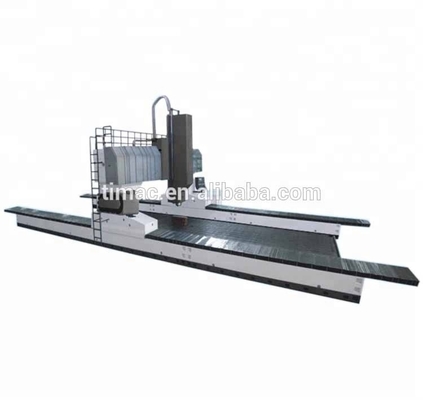

Heavy Duty Fixed Beam Double Column Machining Center Moving Gantry Machine Center
Technical Parameter：
Specifications | Unit | GA50120B | GA50160B | GA50200B | GA50240B |
Worktable size (WxL) | mm | 4000x12000 | 4000x16000 | 4000x20000 | 4000x24000 |
Headstock vertical travel (Z axis) | mm | 1500 | 1500 | 1500 | 1500 |
Gantry width | mm | 5000 | 5000 | 5000 | 5000 |
Main motor | kw | 37 | 37 | 37 | 37 |
Net weight (appox.) | T | 153 | 184 | 215 | 245 |

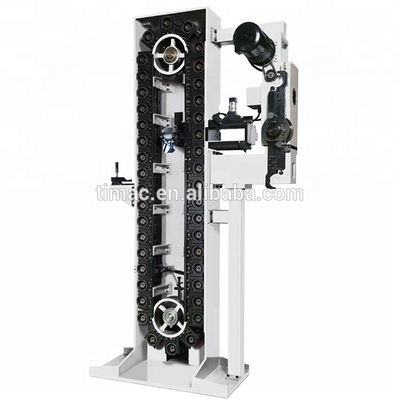

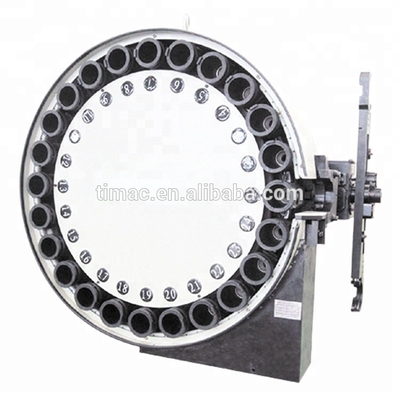

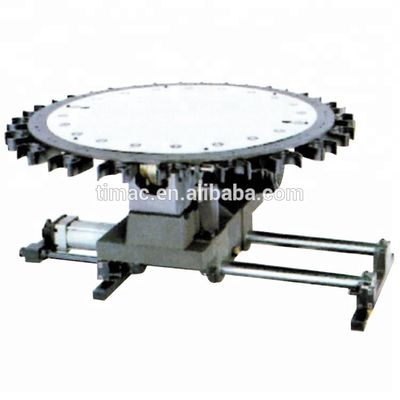

1. Resin sand casting; 2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair;3. Imported rolling screw, rack, gear box; 4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover; 5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head; 6. Taiwan production pneumatic cylinder; 7. Taiwan ATC, carousel type, disc type, chain type are available as option; 8. Imported bearings for leadsrews; 9. Import coupling; 10. Headstock balancing system is hydraulic balance system as option; 11. Work lamp; 12. Pilot lamp; 13. USB and Internet interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. Special milling head: Lengthen milling head, right angle milling head, universal milling head; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Chain type chip conveyor. |
Machine details：
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
