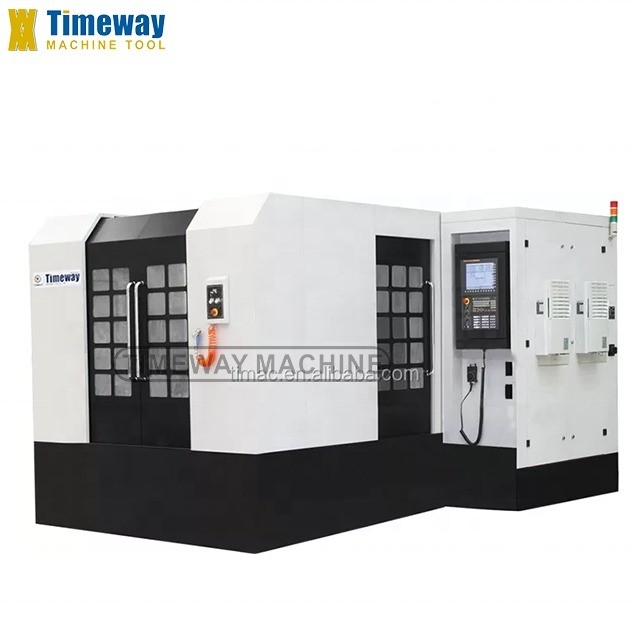

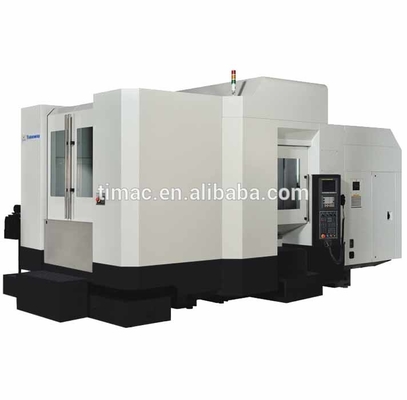

CNC Horizontal Machine Center with Exchange Table Machining Center 7.5/11kw
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300,000.00/sets 1-2 sets |
| Packaging Details: | Wooden pallet or case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 4225x2690x2485 Mm | Weight (T): | 0.9 T |
| Table Size (mm): | 630x630 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1050 |
| Table Travel (Y) (mm): | 750 | Table Travel (Z) (mm): | 900 |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0.1 - 6000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 1000 Kg | Min. Time Of Tool Change(s): | 3 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Voltage: | 380V/50Hz |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size: | 630x630mm | Table Indexing: | 0.001° |
| Loading Capacity: | 950x2kg | Max. Spindle Speed: | 6000rpm |
| ATC Style/number: | Disc-type 24pcs | X-axis Travel: | 1050mm |
| Y-axis Travel: | 750mm | Z-axis Travel: | 900mm |
| Weight: | 9000kg | Power: | 7.5/11kw |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Brazil, Peru, India, Russia, Thailand, Argentina, South Korea, Chile, South Africa, Malaysia |
| Core Components: | Other | Port: | China Port |
Product Description
Products Description
Specifications | Unit | HC4 APC | HC5 APC | HC6APC | HC8APC | HC10 APC |
Wortable size | mm | 450×450 | 500×630 | 630×630 | 800×800 | 1000×1000 |
Worktable number | - | 2 | 2 | 2 | 2 | 2 |
Worktable indexing | ° | 1°(0.001) | 1°(0.001) | 1°(0.001) | 1°(0.001) | 1°(0.001) |
Pallet exhange style | - | Rotary | Rotary | Rotary | Rotary push-pull | Rotary push-pull |
Pallet exhange time | s | 18 | 24 | 24 | 50 | 50 |
Worktable loading capacity | kg | 450 | 600 | 950 | 1500 | 2000 |
T slot of worktable (No.-size xdistance) | - | 24xM16 | 24×M16 | 24×M16 | 24×M16 | 24xM16 |
X axis travel | mm | 600 | 740 | 1050 | 1300 | 1600 |
Y axis travel | mm | 540 | 680 | 750 | 1000 | 1000 |
Z axis travel | mm | 550 | 650 | 900 | 1000 | 1000 |
Distance from spindle center to worktable | mm | 0~540 | 0~680 | 0~750 | 0~1000 | 0~1120 |
Distance from spindle nose to wortable center | mm | 60~610 | 130~780 | 130~1030 | 200~1200 | 200~1200 |
Max. spindle speed | rpm | 8000 | 6000 | 6000 | 6000 | 6000 |
ATC style/station | - | Disc/24 pcs | Disc/24 pcs | Disc/24 pcs | Chain/40pcs | Chain/40 pcs |
Max. tool diameter | mm | 300 | 350 | 350 | 400 | 400 |
Max. tool length | mm | Φ80 | Φ127 | Φ127 | Φ127 | Φ127 |
Max. tool weight | kg | 7 | 15 | 15 | 20 | 20 |
X/Y/Z Rapid moving speed | m/min | 40 | 24 | 24 | 24 | 24 |
B Rapid moving speed | r/min | 15 | 10 | 10 | 10 | 10 |
X/Y/Z Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.012 | 0.012 |
B Positioning accuracy | " | 10″ | 10″ | 10″ | 12″ | 12″ |
X/Y/Z Repositioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.008 | 0.008 |
B Repositioning accuracy | " | 5″ | 5″ | 5″ | 6″ | 6″ |
Net weight (appox.) | cm | 370×180×255 | 397×237×248 | 422×269×248 | 558×318×350 | 657×357× 400 |
Overall dimension (LxWxH) | kg | 5800 | 8000 | 9000 | 15000 | 17000 |
1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway;3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC,disc type and chain type are available as option; 7. Imported bearings for leadsrews; 8. Import coupling; 9. Headstock balancing system is hydraulic balance system; 10. Exchangeable NC rotary worktable (B axis); 11. Work lamp; 12. Pilot lamp; 13. USB and Internet interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. ZF or BF reducer; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Chain type chip conveyor; |
