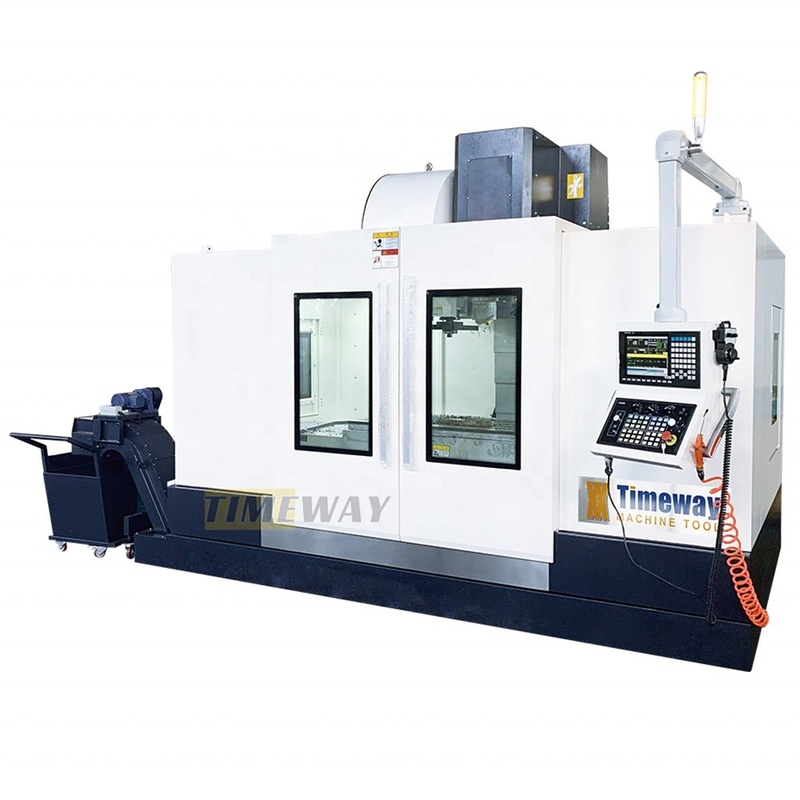

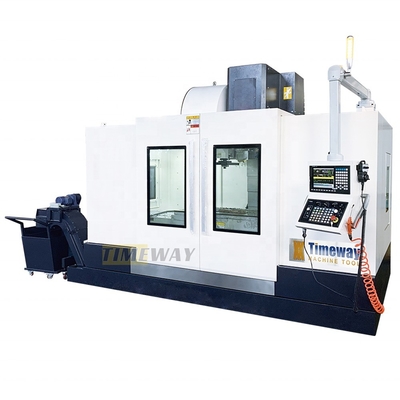

600mm Z Axis Travel Vertical Machining Center for Metal from Chinese Manufacture
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3400x2580x2800mm | Weight (T): | 6.7 T |
| Table Size (mm): | 1200x600 | CNC Control System: | GSK |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1200 |
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 20 - 8000 R.p.m | Spindle Motor Power(kW): | 11 |
| Max. Table Load(kg): | 1000 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Voltage: | 220V/380V/400V |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size: | 1200x600mm | CNC Or Not: | CNC Systemn |
| Machine Type: | CNC Vertical Machining Center | After Warranty Service: | Online |
| No. Of Axis: | 3 | X Axis Travel: | 1200mm |
| Y Axis Travel: | 650mm | Z Axis Travel: | 600mm |
| Color: | Standard Color | Application: | Metal Machining Center |
| Applicable Industries: | Manufacturing Plant, Other | Showroom Location: | Turkey, Viet Nam, Philippines, Brazil, Peru, Mexico, Russia, Thailand, South Korea, Chile, Australia |
| Core Components: | Gearbox | Port: | China Port |
Product Description
Products Description
Features
Vertical machining centers are the most common, with the advantages of easy programming, convenient operation, and convenient observation of the machining process.Specification | Unit | VMC1265G | ||||
WORKTABLE(WIDTH x LENGTH) | mm | 1200*600 | ||||
T SLOTS | mm | 5-18 | ||||
DISTANCE BETWEEN SLOTS | mm | 100 | ||||
MAX.LOAD BEARING OF WORKTABLE | kg | 1000 | ||||
X AXIS | mm | 1200 | ||||
Y AXIS | mm | 650 | ||||
Z AXIS | mm | 600 | ||||
DISTANCE FROM COLUM TO SPINDLE CENTER | mm | 665 | ||||
DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE | mm | 120-720 | ||||
SPINDLE HOLE TAPER | BT40 | |||||
SPINDLE SPEED RANGE | rpm | 20-8000 | ||||
MAIN MOTOR MODEL | Bis12/12000 | |||||
SERVO MAIN MOTOR RATED POWER | kw | 11KW | ||||
SERVO MAIN MOTOR RATED OUTPUT TORQUE | N.m | 52.5 | ||||
SPINDLE PART DYNAMIC BALANCE TYPE | G1 | |||||
SPINDLE ACCURACY SPINDLE FACE RUNOUT | mm | 0.005 | ||||
SPINDLE ACCURACY SPINDLE RADIAL RUNOUT:NEAR-END | mm | 0.003 | ||||
TOOLS HOLDER STANDARD | MSA403 BT40 | |||||
RIVET STANDARD | MSA403 P40T-1 | |||||
X/Y FEED MOTOR MODEL | Bis22 | |||||
X/Y FEED MOTOR MAX.SPEED | rpm | 3000 | ||||
X/Y FEED MOTOR RATED POWER | kw | 3 | ||||
X/Y FEED MOTOR RATED OUTPUT TORQUE | N.m | 20 | ||||
Z FEED MOTOR MODEL | ||||||
Z FEED MOTOR MAX.SPEED | rpm | Bis30B | ||||
Z FEED MOTOR RATED POWER | kw | 4 | ||||
Z FEED MOTOR RATED OUTPUT TORQUE | N.m | 27 | ||||
X/Y/Z POSITIONING ACCURACY | mm | 0.005 | ||||
X/Y/Z REPOSITIONING ACCURACY | mm | 0.003 | ||||
OVERSALL DIMENSION | mm | 3400*2580*2800 | ||||
WEIGHT | Kg | 6700 | ||||
. Axistravel 1200×650×600(mm)
. Table size 1200×600(mm)
. BT40 belt spindle 8000rpm
. Signal 3 colors(working-stop-alarm)
. ATC tool magazine 24
. Schneider Electric
. Belt spindle speed 10000rpmapes.
. Direct drive spindle speed 12000rpm
. Oil cooler
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
