Multifunctional Horizontal Machine Center with and X/Y/Z-Axis Feed Speed 1-5000mm/min
Product Details:
| Place of Origin: | China |
| Brand Name: | timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 3500x2900x3280 | Weight (T): | 7 T |
| Table Size (mm): | 500x500 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 6 | Table Travel (X) (mm): | 1050 |
| Table Travel (Y) (mm): | 800 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Range Of Spindle Speed(r.p.m): | 1 R.p.m | Spindle Motor Power(kW): | 50 |
| Max. Table Load(kg): | 800 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 12 | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Voltage: | 220-380v |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size: | 630x630mm | Number Of Table: | 1pcs |
| Table Indexing: | 1° | T-slots: | 6x18x100mm |
| Loading Capacity: | 800 | X/Y/Z-axis Travel: | 1000/750/600mm |
| X/Y/Z-axis Feed Speed: | 1-5000mm/min | Positioning Accuracy: | 0.01 |
| Machine Weight: | 8000kg | Repeat Positioning Accuracy: | 0.005mm |
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | Egypt, Turkey, France, Viet Nam, Philippines, UAE, Algeria, Tajikistan |
| Core Components: | Bearing | Port: | China Port |
Product Description
Products Description

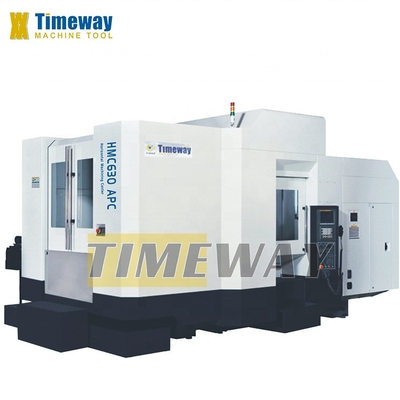

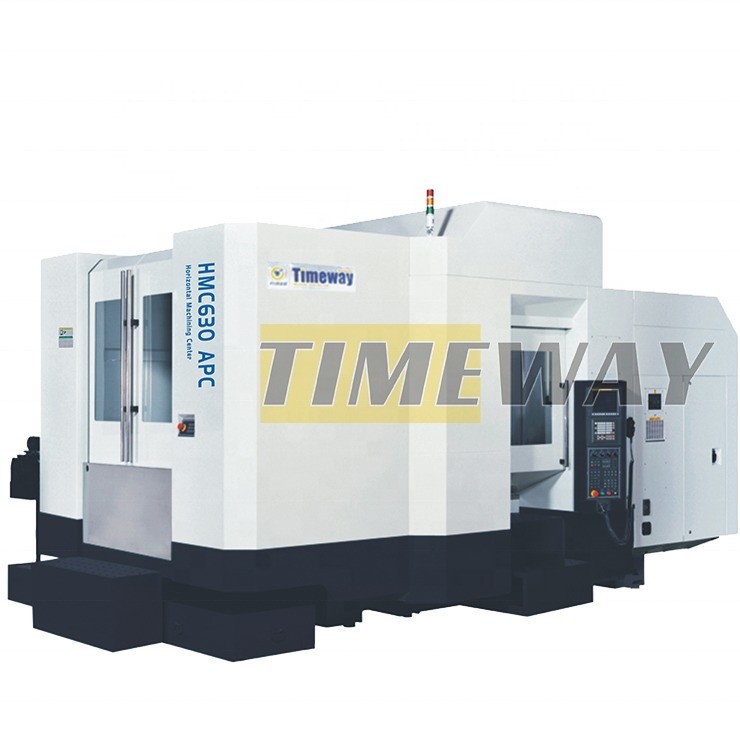

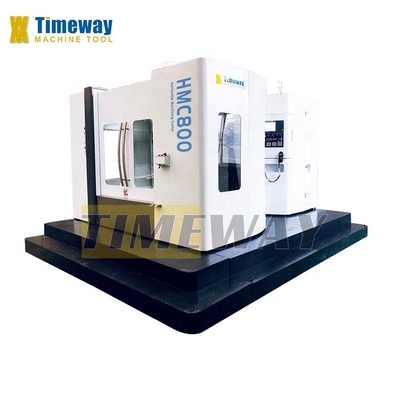

Specification | Unit | HMC630 | HMC800 | |
Table size | mm | 630x630 | 800x800 | |
Number of table | pcs | 1 | 1 | |
Table indexing | ° | 1 | 1 | |
T-slots | mm | 6x18x100 | 5x20x160 | |
Loading capacity | kg | 800 | 2500 | |
Distance from spindle center to table surface | mm | 25-775 | 0-1000 | |
Distance from spindle nose to table center | mm | 120-720 | 180-1180 | |
X/Y/Z-axis travel | mm | 1000/750/600 | 1600/1000/1000 | |
X/Y/Z-axis feed speed | mm/min | 1-5000 | 1-5000 | |
X/Y/Z-axis rapid feed speed | m/min | |||
Spindle taper | - | BT40 | BT50 | |
Spindle speed | rpm | 6000 | 6000 | |
Main motor | kw | 7.5/11 | 15/18.5 | |
X/Y/Z-axis motor torque | N.m | 14/16/16 | 30/30/30 | |
Tool magazine | tools | disc-type | chain-type | |
CNC system | - | GSK/FANUC | ||
Positioning accuracy | mm | 0.01 | 0.01 | |
Repeat positioning accuracy | mm | 0.005 | 0.005 | |
Machine weight | kg | 8000 | 15000 | |
Size of tool shank | mm | 25 | ||
Diameter of Tailstock quill | mm | 85 | ||
Travel of tailstock quill | mm | 150 | ||
Taper Hole of tailstock quill | Morse | Morse No. 5 | ||
Workpiece accuracy | IT6IT7 | |||
Surface roughness | µm | Ra1.6 | ||
Main power | kW | 7.5 | ||
Lathe weight | kg | 2600/2900/3200/3600/4000 | ||
Overall dimensions(Length×width×height) | mm | 2380/2610/2860/3430/3910×1340×1750 | ||
