BT40 Spindle Taper Gantry Machining Center 2022 Newest for Industrial Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 3300x3500 | Weight (T): | 24 T |
| Table Size (mm): | Other | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Spindle Motor Power(kW): | 7.5 | Max. Table Load(kg): | 2000 Kg |
| Min. Time Of Tool Change(s): | 9 | Tool Magazine Capacity: | 16, 20 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220-380V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Spindle Spned: | Goon |
| X-axis Ftravel: | 1300mm | Y-axis Travel: | 1000mm |
| Number Of Axis: | 3 | Product Name: | Gantry CNC Machining Center |
| Machine Type: | Gantry Machining Center | Product Type: | Gantry CNC Milling Machine |
| Keywords: | Gantry Grinding Machine | Z-axis Guideway Type: | Linear |
| Machine Width & Height: | 2700x3300mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Egypt, United Kingdom, France, Germany, Philippines, Chile, Colombia, Malaysia | Core Components: | Engine |
| Port: | China Port | ||
Product Description
Products Description

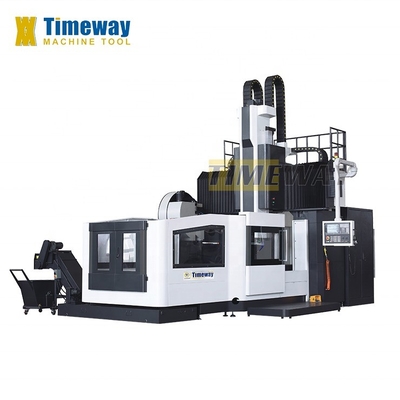

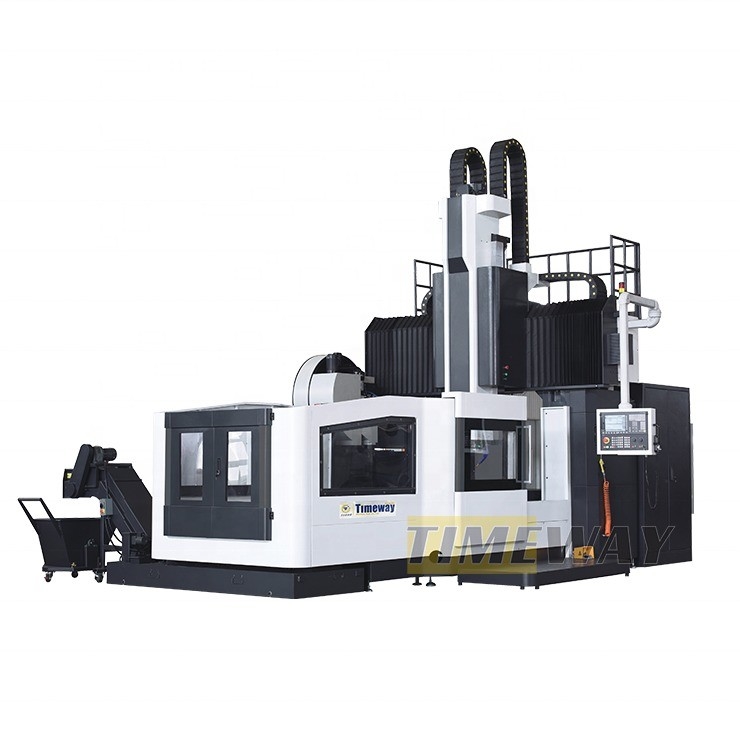

Gantry Type Machining Center
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

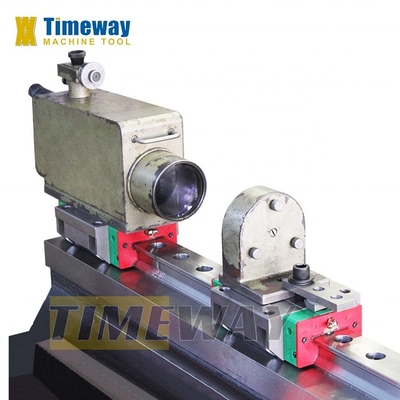

2.X,Y rails adopts imported linear guideway, Z rail is quenching- 1hplastic sliding guide rail pair;
3.Imported rolling screw, rack, gear box;
4.Xrail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gearhead, ZF reducer head, direct driven head, CTS head;
6.Taiwan production pneumatic cylinder;
7.Taiwan ATC, carousel type, disc type, chain type are available asoption;
8.Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system asoption;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14.Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
2.X,Y rails adopts imported linear guideway, Z rail is quenching- 1hplastic sliding guide rail pair;
3.Imported rolling screw, rack, gear box;
4.Xrail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gearhead, ZF reducer head, direct driven head, CTS head;
6.Taiwan production pneumatic cylinder;
7.Taiwan ATC, carousel type, disc type, chain type are available asoption;
8.Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system asoption;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14.Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
SPECIFICATION | UNIT | GMC1000 | GMC1400 | GMC1600 |
Table width | mm | 900 | 1000 | 1200 |
Table length | 1300/1600/1800/2000/2200 | 2000/2500/3000/3500 | 2000/3000/4000 | |
Cross travel (Y) | mm | 1000 | 1400 | 1650 |
Vertical travel (Z) | mm | 600 | 800 | 800 |
Gantry width | mmm | 1400 | 1400 | 1650 |
Max, height of workpiece | mm | 680 | 935 | 1060 |
Machine width & height | mm | 2700x3300 | 2700x3500 | 3300×3500 |
Positive Comments From Customers
Company Introduction
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Factory Display：
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
