Industry Automatic GANTRY Machining Center with Tool Magazine Capacity 24 2022 Hot
Product Details:
| Place of Origin: | China |
| Brand Name: | timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | Gantry | Dimension(L*W*H): | 4030x3900x5700 |
| Weight (T): | 21.5 T | Table Size (mm): | 1600X2000 |
| CNC Control System: | GSK, FANUC, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 2000 | Table Travel (Y) (mm): | 1800 |
| Table Travel (Z) (mm): | 1300 | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ± 0.005 | Range Of Spindle Speed(r.p.m): | 1 - 6000 R.p.m |
| Spindle Motor Power(kW): | 22 | Max. Table Load(kg): | 35000 Kg |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220-380 | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Width: | 1600 |
| Table Length: | 2000/2500/3000/35000 | Machine Type: | Cnc Gantry Machining Center |
| Longitudinal Travel (X): | 2000/2500/3000/35000 | Product Type: | Gantry Machine |
| Cross Travel (Y): | 800(2000) | Gantry Width: | 1800mm |
| Product Name: | Gantry CNC Machining Center | Number Of Axis: | 3 |
| X/Y-axis Guideway Type: | Linear | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Egypt, United States, France, Viet Nam, Philippines, Indonesia, Argentina, UAE, Bangladesh, Malaysia, None | Core Components: | Gearbox |
| Port: | China Port | ||
Product Description
Products Description

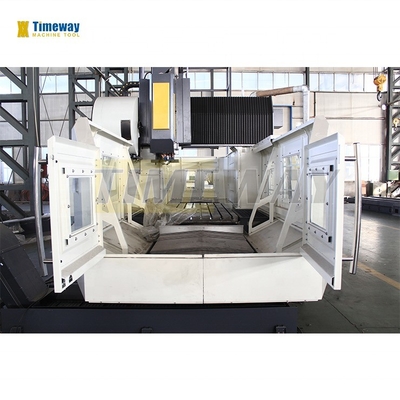

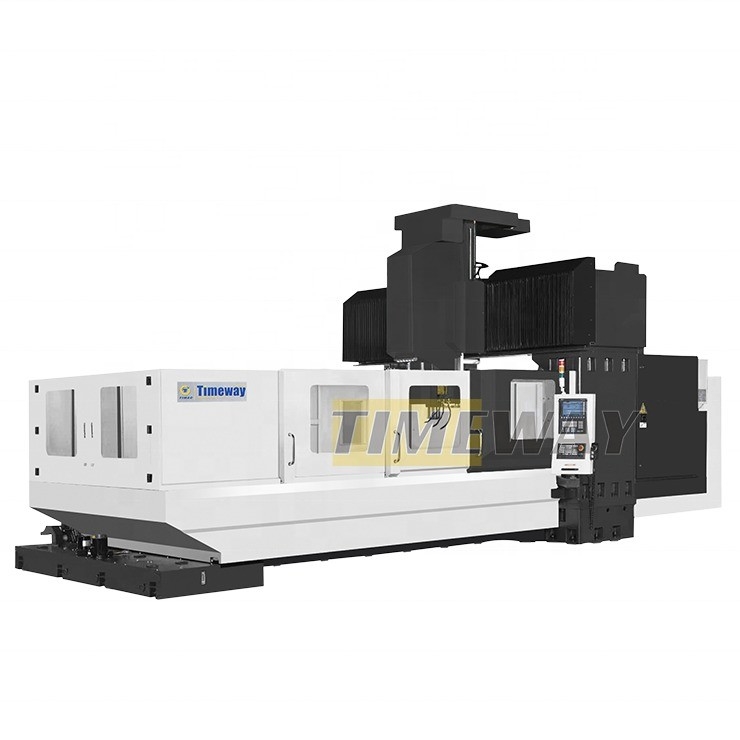

Gantry Type Machine Center

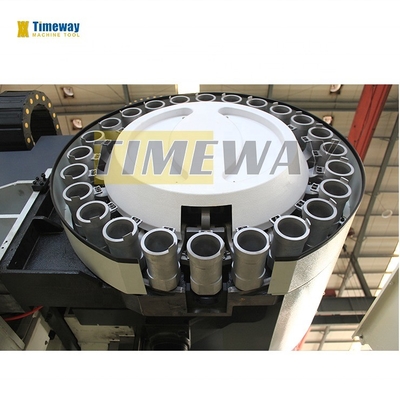

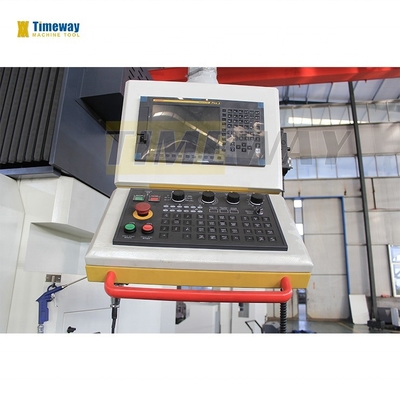

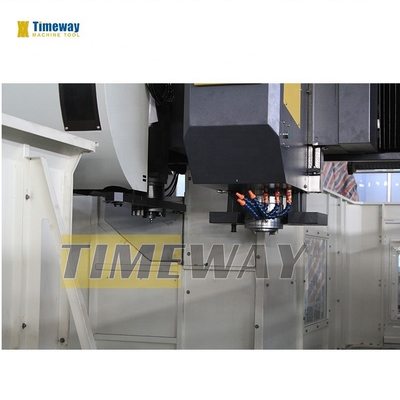

MAIN CONFIGURATION & ACCESSORIES: 1.Resin sand casting; 2.X,Y rails adopts imported linear guideway,Z rail is quenching- plastic sliding guide rail pair; 3. Imported rolling screw, rack, gear box; 4.X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover; 5.Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head; 6.Taiwan production pneumatic cylinder; 7.Taiwan ATC, carousel type, disc type, chain type are available as option; 8.Imported bearings for leadscrews; 9. Famous brand coupling; 10. Headstock balancing system is Nitrogen balance system as option; 11. Work lamp; 12. Pilot lamp; 13. USB and LAN interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabine 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. Double spiral chip conveyor; 21.CNC controller: KND,GSK, HNC (China). SIEMENS MITSUBISHI, FAGOR, etc.
Technical Parameter：
SPECIFICATION | UNIT | GMC1800 | GMC2200 | GMC2700 |
Table width | mm | 1600 | 2000 | 2300 |
T-slot (No./width/pitch) | mm | 9/22/180 | 9/22/200 | 11/28/200 |
Cross travel (Y) | mm | 1800(2000） | 2200(2700) | 2700(3050） |
Vertical travel (Z) | mm | 1000 | 1000 | 1000 |
Gantry width | mm | 1800 | 2300 | 2700 |
Max. height of workpiece | mm | 1300 | 1400 | 1400 |
Positive Comments From Customers
Company Introduction
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Factory Display：
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
