Product Details:

Place of Origin: China
Brand Name: TIMAC TIMEWAY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $280,000.00/sets 1-2 sets
Packaging Details: Standard package
Supply Ability: 100 Set/Sets per Year
Get Best Price Contact Now

Detail Information
Condition: New No. Of Spindles: Twin
Type: VERTICAL Dimension(L*W*H): 2660*4655*2650mm
Weight (T): 11 T Table Size (mm): Other
CNC Control System: GSK, FANUC Number Of Axes: 2
Table Travel (X) (mm): 800 Table Travel (Y) (mm): 650
Table Travel (Z) (mm): 450 Positioning Accuracy (mm): 8
Repeatability (X/Y/Z) (mm): 5 Spindle Motor Power(kW): 15.5
Max. Table Load(kg): 1000 Kg Min. Time Of Tool Change(s): 4
Tool Magazine Capacity: 12, 24 Key Selling Points: Automatic
Warranty: One Year Voltage: 380V/50Hz
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Worktable Diameter: 650mm Max. Weight Of Workpiece: 1000kg
Spindle Speed: 16000rpm A-axis Swiveling Angle: -130deg To +130deg
C-axis Swiveling Angle: Any 360deg X/Y/Z Axis Travel: 800*650*450mm
A-axis Speed: 30rpm C-axis Speed: 600rpm
CNC System: Chinese GNC61CNC System Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: United States, Germany, Brazil, Ukraine, Australia Core Components: PLC
Port: China Port

Product Description

5 axis обрабатывающий центр
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 0
Products Description

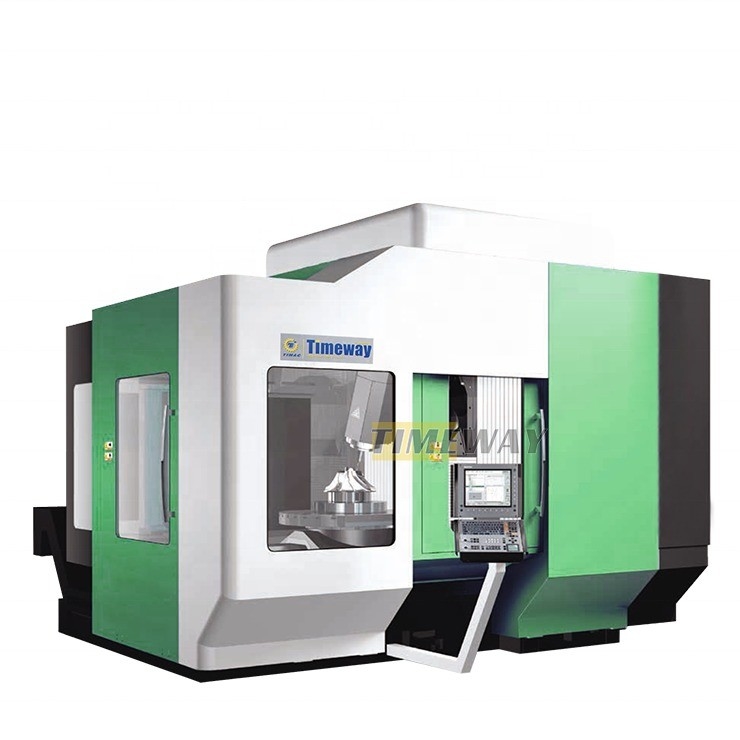

High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 1
Advantage of Machine Tool
1. Improved gantry framework and the whole machine structure design.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
Advantage of CNC System
1. Perfect five-axis technology(RTCP, inclined plane machining)
2. High-speed information interaction.
3. High resolution, high precise frequency control scheduling.
4. Precision perception for position or angle.
5. Multi-channel control technology.
6. Systems support wireless probe, tool setting gauge access.
7. Error compensation function: the bidirectional pitch compensation, linearity compensation(including each deflection
compensation) and vertical degree of compensation etc.
8. Secondary development and offline 3D simulation system.
Performance and Feature
Improved Gantry-frame and Whole-machine Structure Design
1. The optimal spindle support.
2. Use for reference classic structure of vertical coordinate boring, have better spindle rigidity.
3. CNC rotary swing workbench realize structure of double-wall support.
4. Y-axis adopts four guideways as support and main drive located in the center.
5. Circular-type tool magazine combined with lathe bed of machine tool, simple structure and save space.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 2
Artificial Lidan Bed body
1.Thermal expansion coefficient is only 1/20 of the cast iron, smaller thermal deformation error.
2. Artificial lidan damping are six times that of the cast iron, better vibratory performance.
3. Once forming, greatly save the subsequent processing time and cost.
4. Room temperature curing manufacturing process, the precision machine tool selection of bed materials.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 3

Title goes here.

1. Good dynamic response ability
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-600 and FMC-600T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 4

Driven At The Center of Gravity

1. Stronger and more stable drive.
2. Cradle-type rotary table with driven of the center of gravity.
3. Effectively restrain vibration to eliminate backlash.
4. To provide users with the ideal processing performance.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 5
Specifications
Units
FMC-600
FMC-600T(with turning)
Max. swiveling diameter of workpiece
mm
Φ800
Φ800
Max. milling width
mm
800
800
Max. milling height
mm
420
420
The diameter of worktable
mm
Φ650*540
Φ650
Max. weight of workpiece
kg
1000
1000; 500(turning)
X/Y/Z-axis travel
mm
800/650/450
800/650/450
A-axis swiveling angle range
°
-130°- +130°
-130°- +130°
C-axis rotary angle range
°
Any-angle
Any-angle
Max. spindle torque
N.m
42/62
42/62
Max. spindle speed
rpm
16000
16000
Spindle motor rated power
kw
15.5
15.5
Type of tool shank
HSK-A63
HSK-A63
Tool center out of the water
Optional
Optional
Spindle directional
Yes
Yes
Positioning lock
No
Yes
Type of drive
Direct-drive by torque motor
Direct-drive
by torque motor
by torque motor
Torque of drive S1/S6
N.m
1880/3480
1880/3480
Type of drive
Direct-drive by torque motor
Direct-drive
by torque motor
by torque motor
Torque of drive S1/S6
N.m
860/1620
860/1620
X/Y/Z-axis
m/min
48; 60
48; 60
A-axis
rpm
30
30
C-axis
rpm
80
600
X/Y/Z-axis
um
1; 0.1
1; 0.1
C-axis
°
0.001°; 0.0001°
0.001°; 0.0001°
X/Y/Z-axis
Standard
Standard
A/C-axis
Standard
Standard
X/Y/Z-axis
um
8; 5
8; 5
A/C-axis
"
8; 5
8; 5
X/Y/Z-axis
um
5; 3
5; 3
A/C-axis
"
5; 3
5; 3
Capacity
32
32
Max. diameter of tool
mm
Φ80
Φ80
Max. length of tool
mm
300
300
Max. weight of tool
kg
8
8
Wireless workpiece gauge head
um
±3(Repositioning accuracy)
Tool setting gauge
um
±3(Repositioning accuracy)
Machine weight
N.W
11000
12000
CNC system
Model
GNC61 CNC system
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 6
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 7

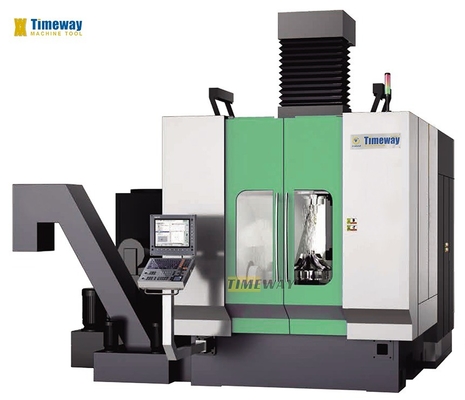

Machine Details
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 8
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 9
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 10
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 11
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 12
========================
>> Chain-type chip conveyor comes optional.

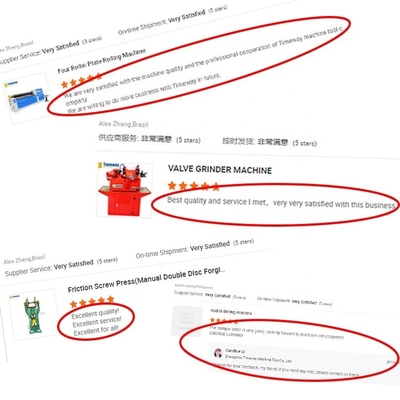

Client feedback
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 13
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
High Precision 5 Axis CNC Vertical Machining Center with 12 Tool Magazine Capacity 14

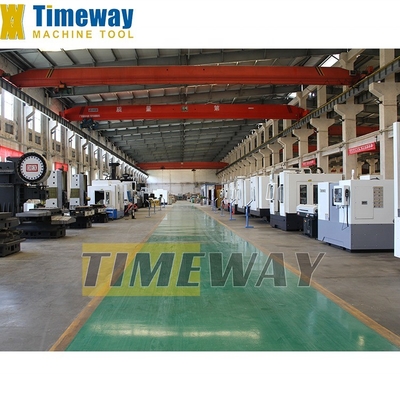

Factory Display：
