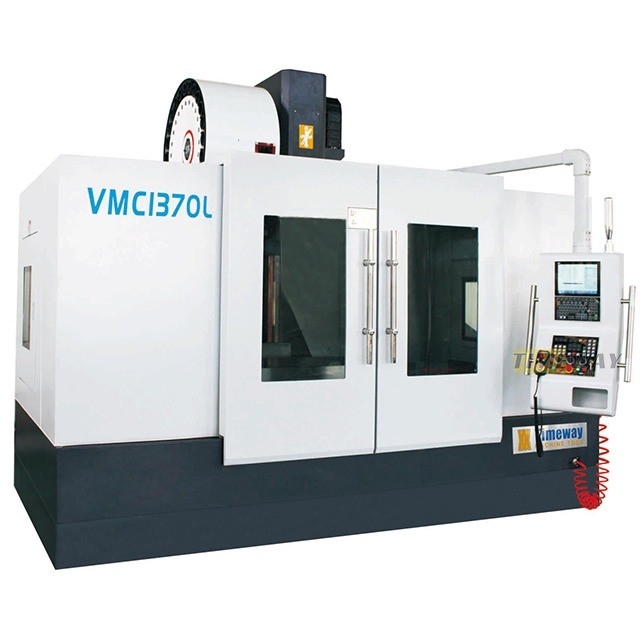

1300mm Table Travel High Precision Vertical Machining Center for Advanced Machining
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
| Model Number: | VMC1370L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 24 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | BT50 |
| Table Travel (X) (mm): | 1300 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | 0.008 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Voltage: | 220V/110V |
| Dimension(L*W*H): | 1300x700x600 | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 9600 |
| Spindle Motor Power(kW): | 18.5 | Warranty: | 1 Year |
| Max. Table Load(kg): | 1200 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 700x1300 Mm |
| T-slot (No./width/pitch): | 5/18/122 Mm | Loading Capacity: | 1200 Kg |
| Longitudinal Travel (X): | 1300 Mm | Cross Travel (Y): | 700 Mm |
| Vertical Travel (Z): | 600 Mm | Distance From Spindle Nose To Table: | 150-750 Mm |
| Distance From Spindle Center To Column: | 785 Mm | Spindle Speed: | 8000rpm |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Construction Works |
| Showroom Location: | Indonesia, Spain, Chile, Colombia | Core Components: | Motor, Pump, Engine |
| Table Travel (mm): | 700x1360 | Year: | New |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | VMC1270L | VMC1370L | VMC1580L | |||
Table size | mm | 700x1360 | 700x1360 | 800x1700 | |||
T-slot (No./width/pitch) | mm | 5/18/122 | 5/18/122 | 5/22/135 | |||
Loading capacity | kg | 1000 | 1200 | 1500 | |||
Longitudinal travel (X) | mm | 1200 | 1300 | 1500 | |||
Cross travel (Y) | mm | 700 | 700 | 800 | |||
Vertical travel (Z) | mm | 600 | 600 | 700 | |||
Distance from spindle nose to table | mm | 87-687 | 150-750 | 130-830 | |||
Distance from spindle center to column | mm | 785 | 785 | 810 | |||
Spindle taper | - | BT40 | BT50 | BT50 | |||
Spindle speed | rpm | 8000 | 8000 | 8000 | |||
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 | 24/24/18 | 24/24/18 | |||
X/Y/Z-axis feed motor torque | N.m | 23/23/23 | 23/23/23 | 27/27/27 | |||
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 | |||
X/YZ-axis repetability accuracy | mm | 0.005 | 0.005 | 0.005 | |||
Main motor power | kw | 11/15 | 15/18.5 | 15/18.5 | |||
Air pressure source | kg/cm2 | 8 | 8 | 8 | |||
Total power | Kva | 25 | 30 | 30 | |||
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) | |||
Guideway type | X: Linear; Y: Linear, four rails; Z: Slinding/linear | X: Linear; Y: Linear, four rails; Z: Slinding/linear | X: Linear; Y: Linear, four rails; Z: Slinding/linear | ||||
Machine weight | kg | 9600 | 11000 | 14000 | |||
Machine dimensions (LxWxH) | mm | 3500x2500x3055 | 3820x2560x3100 | 4200x3520x3055 | |||
1. Resin sand casting; 2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Import coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |

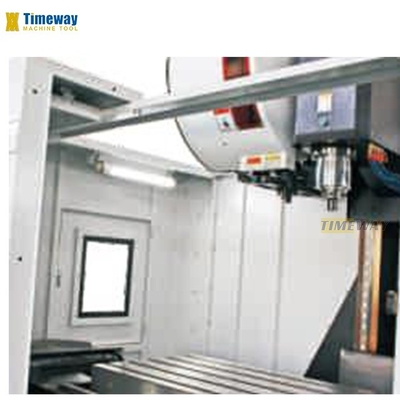

High rigidity spindle.
Famous CNC system.
Finished products.

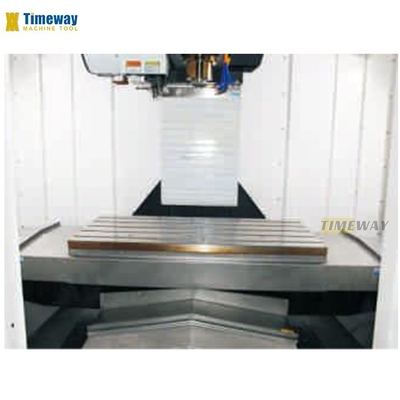

4-track Linear For Y-axis

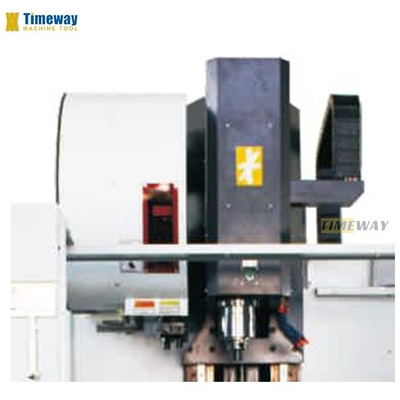

BT50 spindle

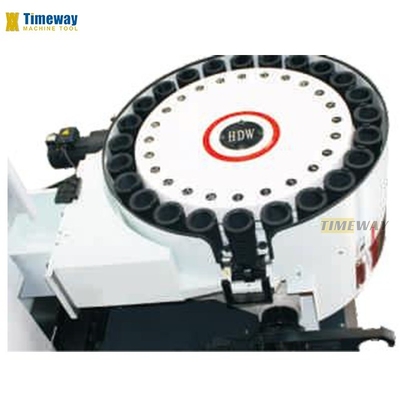

BT50 ATC With 24 Tools
