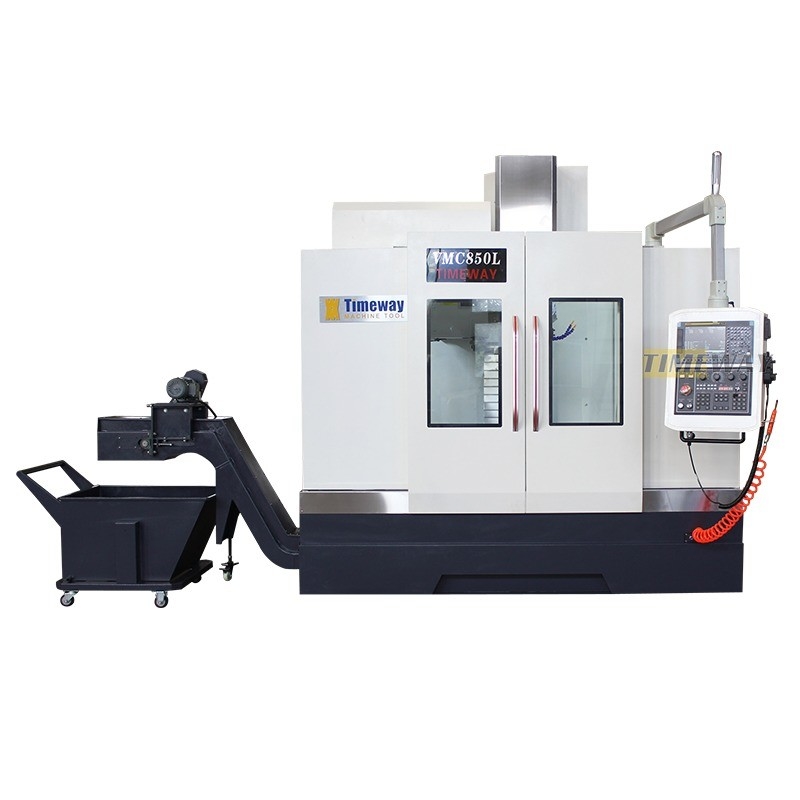

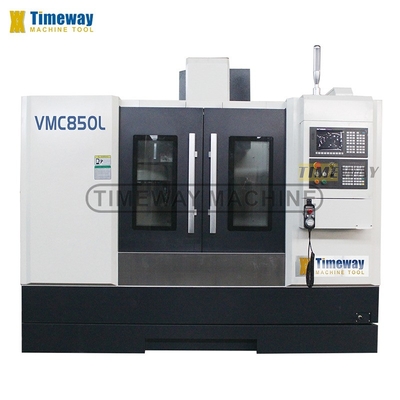

BT-40 Spindle Taper High Rigidity Vertical Machining Center with High Durability
Product Details:
| Place of Origin: | SHN |
| Brand Name: | TIMEWAY |
| Model Number: | VMC850L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 48 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 500 | Table Travel (Y) (mm): | 800 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | 0.008 |
| Repeatability (X/Y/Z) (mm): | 0.006 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 500x800x500 | CNC Control System: | GSK |
| Key Selling Points: | High-accuracy | Weight (KG): | 4600 |
| Spindle Motor Power(kW): | 7.5 | Warranty: | 1 Year |
| Max. Table Load(kg): | 500 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Worktable Size (LxW): | 1000x500 Mm |
| T-slot (No./width/pitch): | 5-18-100 Mm | Loading Capacity: | 500 Mm |
| Longitudinal Travel (X): | 800 Mm | Cross Travel (Y): | 500 Mm |
| Vertical Travel (Z): | 500 Mm | Distance From Spindle Nose To Table: | 110-610 Mm |
| Distance From Spindle Center To Column: | 524 Mm | Spindle Taper: | BT-40 |
| Spindle Speed: | 8000rpm | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Construction Works | Showroom Location: | Indonesia, India, Spain, Chile, Colombia |
| Core Components: | Bearing, Motor, Gear | Table Travel (mm): | 1000 |
| Year: | New | Port: | China Port |
Product Description
Products Description
Specification | Unit | VMC650L | VMC850L |
Worktable size (WxL) | mm | 420x800 | 500x1000 |
T-slot (No./width/pitch) | mm | 5/18/80 | 5/18/102 |
Loading capacity | kg | 400 | 400 |
Longitudinal travel (X) | mm | 700 | 800 |
Cross travel (Y) | mm | 450 | 500 |
Vertical travel (Z) | mm | 500 | 500 |
Distance from spindle nose to table | mm | 100-600 | 110-610 |
Distance from spindle center to column | mm | 495 | 524 |
Spindle taper | - | BT40 | BT40 |
Spindle speed | rpm | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 30/30/30 | 48/48/36 |
X/Y/Z-axis feed motor torque | N.m | 10/10/10 | 15/15/23 |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 |
X/Y/Z-axis repositioning accuracy | mm | 0.005 | 0.005 |
Main motor power | kw | 7.5/11 | 7.5/11 |
Air pressure source | kg/cm2 | 8 | 8 |
Power capacity | Kva | 12 | 15 |
Tool magazine capacity | T | 16 (Crousel) | 24 (Disc) |
Guideway type | - | Linear | Linear |
Machine weight | kg | 3500 | 5000 |
Machine dimensions (LxWxH) | mm | 2350x2100x2300 | 2800x2300x2400 |
1. Resin sand casting; 2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Import coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |
High rigidity spindle.
Famous CNC system.

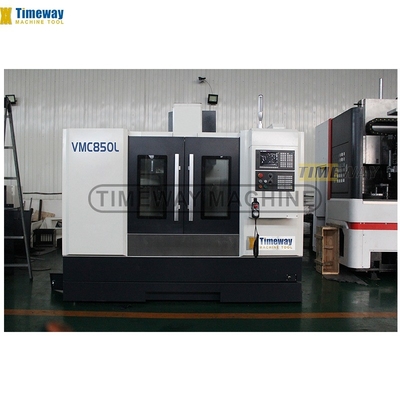

Finished products.
4-track Linear For Y-axis
BT50 spindle

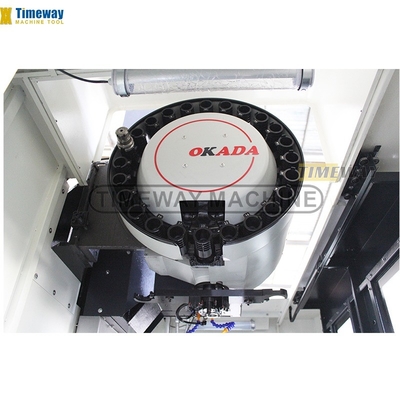

BT50 ATC With 24 Tools
