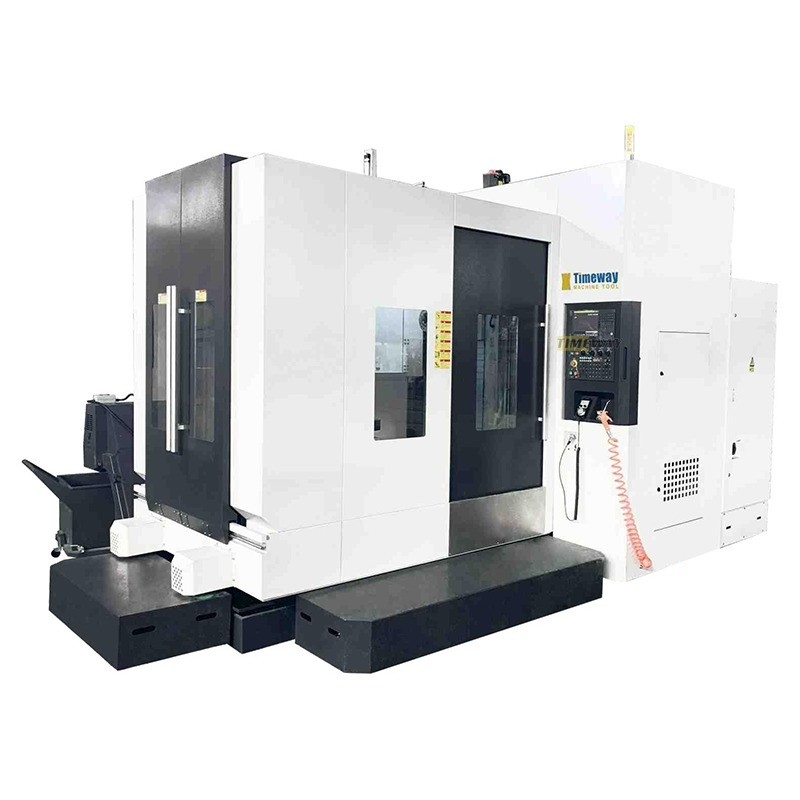

Light Duty Machining Made Easy with 5500KG High Precision Horizontal Machining Center
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
| Model Number: | HMC500S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Range Of Spindle Speed(r.p.m): | 0 - 30 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | BT-40 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 600 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | 0.008 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Voltage: | 220V/110V |
| Dimension(L*W*H): | 800x600x500 | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 5500 |
| Spindle Motor Power(kW): | 11 | Warranty: | 1 Year |
| Max. Table Load(kg): | 600 Kg | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 800m M |
| Y-axis Travel: | 600 Mm | Z-axis Travel: | 500 Mm |
| Table Size: | 500x500 Mm | Main Motor Power: | 11 Ke |
| T-slots (No./width/pitch): | 5-14-80 Mm | Spindle Speed: | 8000 Rpm |
| Machine Weight: | 5000 Kg | Power Supply: | 25 Kva |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Construction Works |
| Showroom Location: | Viet Nam, Spain, Morocco, Chile, UAE | Core Components: | Motor, Engine |
| Table Travel (mm): | 500x500 | Year: | New |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | HMC500S |

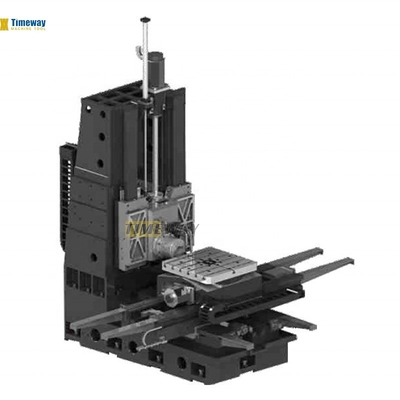

Machine structure | - | Cross-type |
X-axis travel | mm | 800 |
Y-axis travel | mm | 600 |
Z-axis travel | mm | 500 |
B-axis servo motor torque (FANUC) | - | 8 |
Table size | mm | 500x500 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | - | 5-14-80 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 600 |
Locking force (35kg / cm2) | kg/m | 3000 |
Distance spindle center to table | mm | 100-700 |
Distance spindle nose to table center | mm | 140-640 |

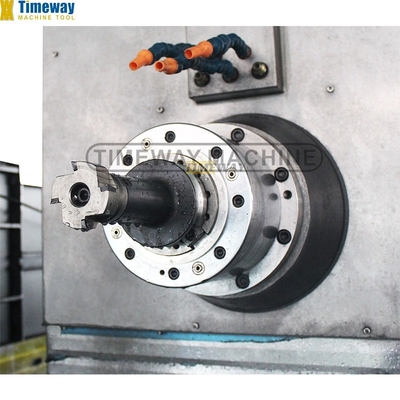

Spindle taper | - | BT-40 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 11 |
X/Y/Z-axis servo motor (FANUC) | - | Bis12/Bis12/Bis12 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 30/30/30 |
X/Y/Z-axis rails type | - | Linear |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | " | ±10" |
ATC capacity (style) | tools | 24 (Disc) |
Tool change time (tool to tool) | sec | 2.7 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ125 |
Max. tool length | mm | 300 |
Power supply | Kva | 25 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 5500 |
Overall dimension (LxWxH) | mm | 3500x2900x3280 |
1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC,disc type and chain type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option; 10. NC rotary worktable (B axis); 11. Work lamp; 12. Pilot lamp; 13. USB and LAN interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. ZF or BF reducer; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Optional with sprial type chip conveyor and chain type chip conveyor |
