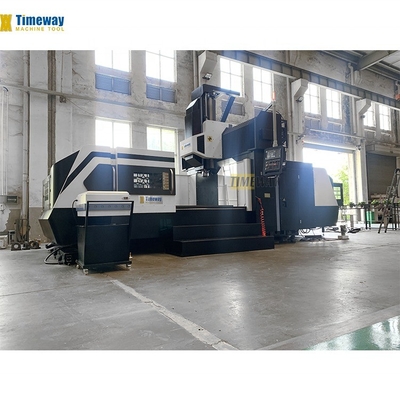

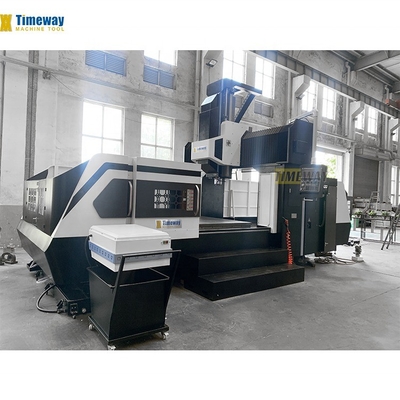

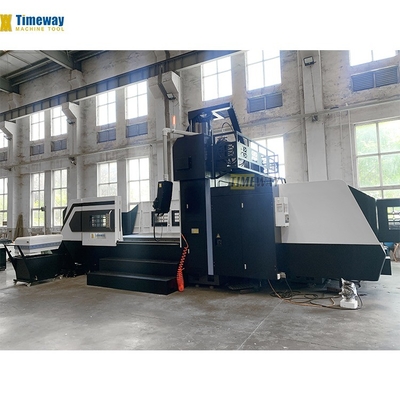

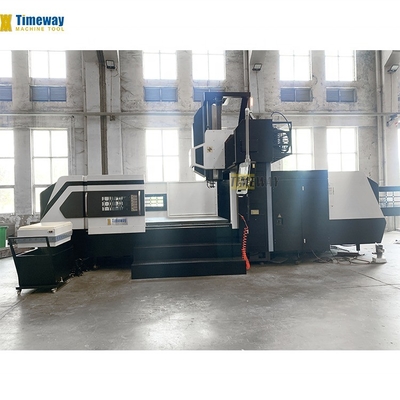

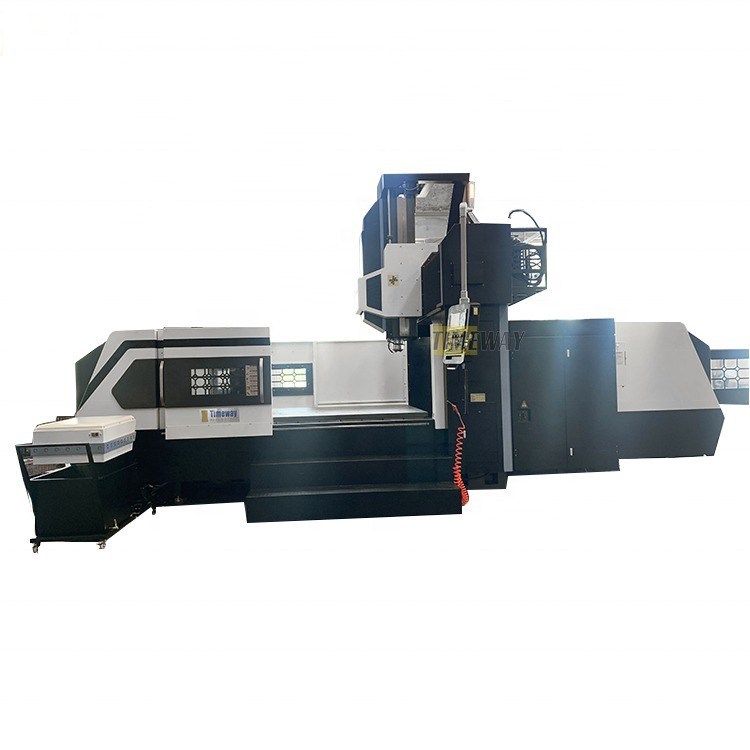

Gantry 3 Axis CNC Center with SIEMENS Control System and 22/26kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | GMC2700/GMC2200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Gantry | Range Of Spindle Speed(r.p.m): | 0 - 10 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Twin |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT50(190) |
| Table Travel (X) (mm): | 3000 | Table Travel (Y) (mm): | 2700 |
| Table Travel (Z) (mm): | 1000 | Positioning Accuracy (mm): | 0.005 |
| Repeatability (X/Y/Z) (mm): | 0.003 | Voltage: | 3Phase 220V 380V 415V |
| Dimension(L*W*H): | 3000x2700x1000 | CNC Control System: | FANUC SIEMENS GSK KND SYNTEC |
| Key Selling Points: | High-accuracy | Weight (KG): | 8000 |
| Spindle Motor Power(kW): | 22/26 | Warranty: | 1 Year |
| Max. Table Load(kg): | 1000 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 3000 Mm |
| Y/Z-axis Travel: | 2700/1000 Mm | CNC Or Not: | CNC Machining Center |
| Product Name: | Gantry Machine Center CNC Milling Machine | Machine Type: | Gantry Machining Center |
| Name: | CNC Milling Machine | Keyword: | Heavy Duty Cnc Gantry Machining Center |
| Key Selling Points: | Competitive Price | Product Type: | CNC Machine |
| Application: | Metal Machining | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Construction Works | Showroom Location: | Russia, Spain, Thailand, Chile, Colombia |
| Core Components: | Motor, Engine | Table Travel (mm): | 2700x1000 |
| Year: | New | Port: | China Port |
Product Description
Products Description
Gantry Type Machining Center
Technical Parameter：
Specification | Unit | GMC2200 | GMC2700 |
Gantry width | mm | 2300 | 2700 |
Table width | mm | 2000 | 2300 |
T-slots (No./width/pitch) | - | 9-22-200 | 11-28-200 |
Main motor power | kw | 18.5/22 | 22/26 |
Max. tool length | mm | 300 | 300 |
Air pressure require | kg/cm2 | 8 | 8 |
1. Resin sand casting; 2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair; 3. Imported rolling screw, rack, gear box; 4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover; 5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head; 6. Taiwan production pneumatic cylinder; 7. Taiwan ATC, carousel type, disc type, chain type are available as option; 8. Imported bearings for leadscrews; 9. Famous brand coupling; 10. Headstock balancing system is Nitrogen balance system as option; 11. Work lamp; 12. Pilot lamp; 13. USB and LAN interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. Double spiral chip conveyor; 21. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. Special milling head: Lengthen milling head, right angle milling head, universal milling head; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Chain type chip conveyor. |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
