Table Travel Y mm 1300 Vertical CNC Machining Center with Max. Table Load kg 500 kg
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $61,899.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2560x3100 | Weight (T): | 3 T |
| Table Size (mm): | 320x800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1200 |
| Table Travel (Y) (mm): | 1300 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 18.5 | Max. Table Load(kg): | 500 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Worktable Size (WxL): | 710x1400 |
| T-slot (No./width/pitch): | 5/18/152.5 | Loading Capacity: | 1200 |
| Longitudinal Travel (X): | 1300 | Cross Travel (Y): | 700 |
| Vertical Travel (Z): | 650 | Distance From Spindle Nose To Table: | 150-800 |
| Distance From Spindle Center To Column: | 785 | Spindle Speed: | 8000 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh |
| Core Components: | Motor | Port: | China Port |
Product Description
Products Description
Applications of the vertical machining center:

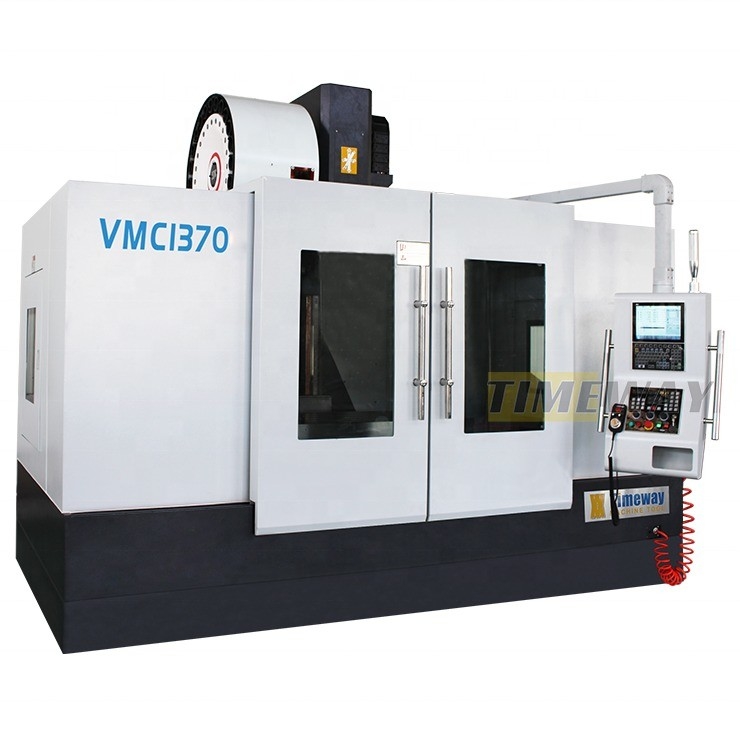

The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | VMC1370 | VMC1580 | VMC1690 | VMC1890 | |||
Worktable size (WxL) | mm | 710x1400 | 800x1700 | 900x1800 | 900x2000 | |||
T-slot (No./width/pitch) | mm | 5/18/152.5 | 5/22/135 | 5/22/165 | 5/22/165 | |||
Loading capacity | kg | 1200 | 1500 | 1600 | 1600 | |||
Longitudinal travel (X) | mm | 1300 | 1500 | 1600 | 1800 | |||
Cross travel (Y) | mm | 700 | 800 | 900 | 900 | |||
Vertical travel (Z) | mm | 650 | 700 | 680 | 800 | |||
Distance from spindle nose to table | mm | 150-800 | 185-885 | 160-840 | 160-960 | |||
Distance from spindle center to column | mm | 785 | 810 | 950 | 950 | |||
Spindle taper | - | BT50 | BT50 | BT50 | BT50 | |||
Spindle speed | rpm | 8000 | 8000 | 6000 | 6000 | |||
X/Y/Z-axis rapid feed speed | m/min | 12/12/12 | 12/12/12 | 12/12/10 | 12/12/10 | |||
X/Y/Z-axis feed motor torque | N.m | 23/23/23 | 27/27/27 | 35/35/35 | 40/40/40 | |||
X/Y/Z-axis positioning accuracy | mm | 0.015 | 0.015 | 0.015 | 0.015 | |||
X/Y/Z-axis repositioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | |||
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |||
Air pressure source | kg/cm2 | 8 | 8 | 8 | 8 | |||
Power capacity | Kva | 30 | 30 | 35 | 40 | |||
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) | 24 (Disc) | |||
Guideway type | - | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) | |||
Machine weight | kg | 11000 | 14000 | 15000 | 15500 | |||
Machine dimensions (LxWxH) | mm | 3820x2560x3100 | 4200x3520x3055 | 4280x3700x3220 | 4590x3960x3440 | |||
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

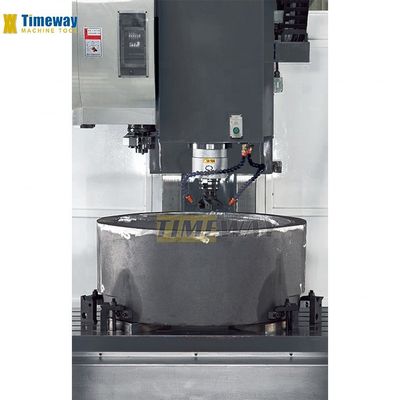

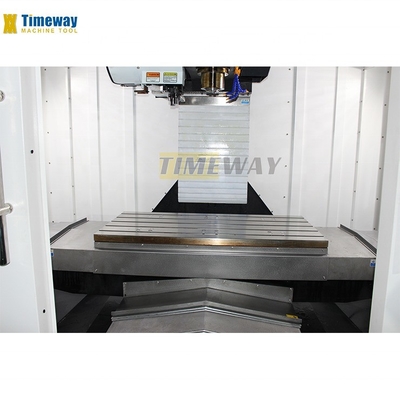

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

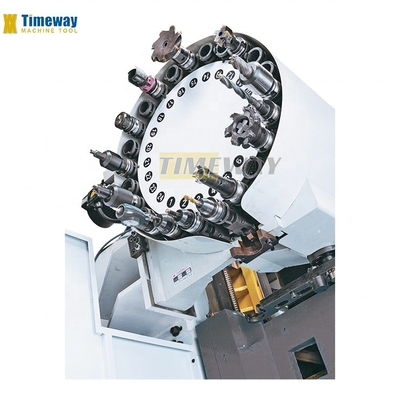

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

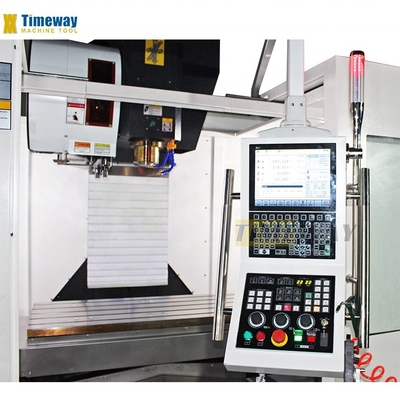

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
