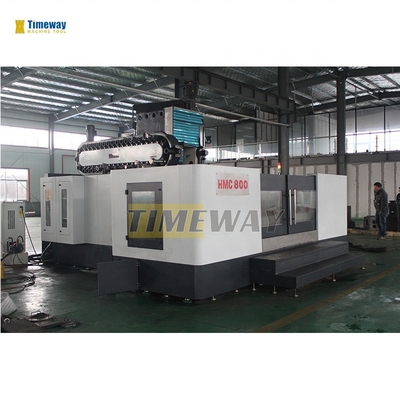

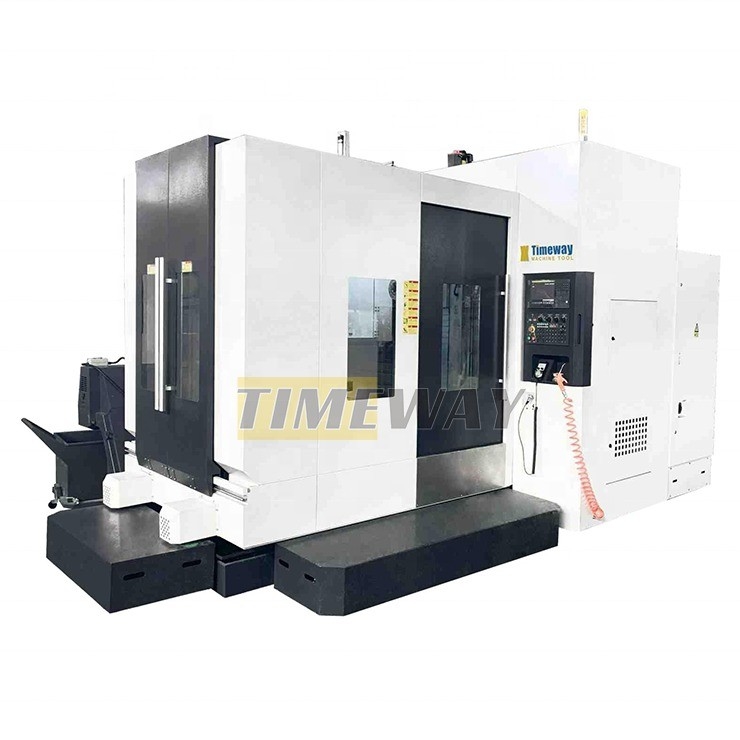

2s Tool Change Time KND CNC Milling Machine for Metal Horizontal Machining Center
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $49,998.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 3500x2900x3280 | Weight (T): | 5.5 T |
| Table Size (mm): | 500x500 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 600 |
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 550 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 11 | Max. Table Load(kg): | 500 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Wortable Size: | 500x500 |
| Worktable Indexing: | 0.001 | T-slot Of Worktable (No.-sizexdistance): | 5/14/80 |
| Worktable Rotation Speed: | 16.6 | Worktable Loading Capacity: | 500 |
| Locking Force (35kg/cm2): | 2500 | X Axis Travel: | 600 |
| Y Axis Travel: | 620 | Z Axis Travel: | 550 |
| X/Y/Z-axis Rapid Feed Speed: | 11/28/18 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | HMC500 | HMC630 |
Wortable size | mm | 500×500 | 630x630 |
Worktable number | pcs | 1 | 1 |
Worktable indexing | ° | 0.001° | 0.001° |
T-slot of worktable (No.-sizexdistance) | - | 5/14/80 | 5/18/122 |
Worktable rotation speed | rpm | 16.6 | 11.1 |
Worktable loading capacity | kg | 500 | 800 |
Locking force (35kg/cm2) | kg/m | 2500 | 4000 |
X axis travel | mm | 600 | 1200 |
Y axis travel | mm | 620 | 800 |
Z axis travel | mm | 550 | 700 |
Distance from spindle center to worktable | mm | 150-750 | -60-740 |
Distance from spindle nose to wortable center | mm | 150-700 | 215-880 |
Spindle taper | - | BT40 | BT50 |
Max. spindle speed | rpm | 8000 | 6000 |
ATC style/station | - | 24 (Disc) | 24 (Disc) |
Max. tool diameter | mm | Φ78/Φ125 | Φ78/Φ125 |
Max. tool length | mm | 300 | 300 |
Max. tool weight | kg | 8 | 8 |
Tool change time | sec | 7 | 7 |
X/Y/Z-axis feed speed | mm/min | 1-8000 | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 30/30/30 | 20/12/20 |
X/Y/Z-axis guideway type | - | Linear | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.01 | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.008 | 0.006 |
B-axis positioning accuracy | sec | 10" | 10" |
Main motor power | kw | 11 | 15/18.5 |
X/Y/Z-axis feed motor torque | NM | 11/28/18 | 16/18/20 |
B-axis feed motor torque | NM | 15 | 15 |
Power capacity | kva | 50 | 50 |
Air pressure | kg/cm2 | 8 | 8 |
CNC system | - | FANUC | FANUC |
Machine weight | kg | 7000 | 8000 |
Machine dimensions (LxWxH) | mm | 3500x2900x3280 | 4285x3120x3280 |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |

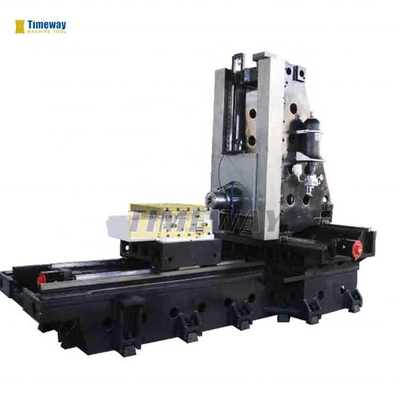

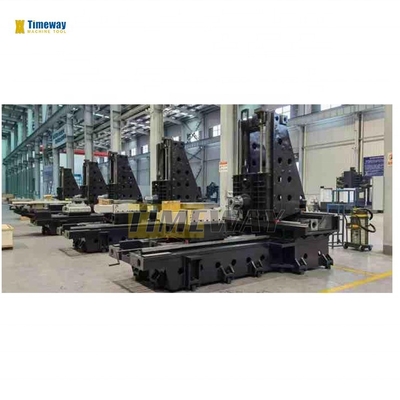

Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

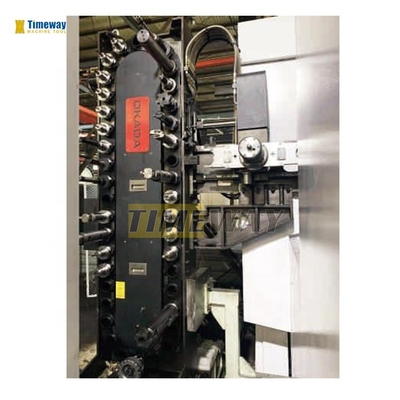

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

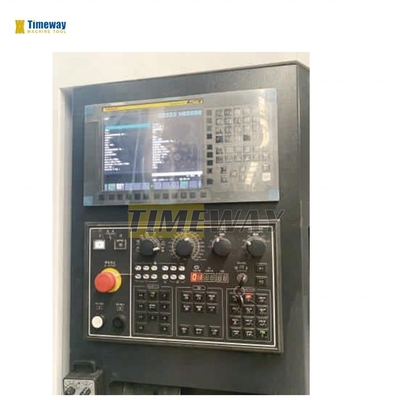

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
Company Introduction
Want to Know more details about this product
