>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
 |

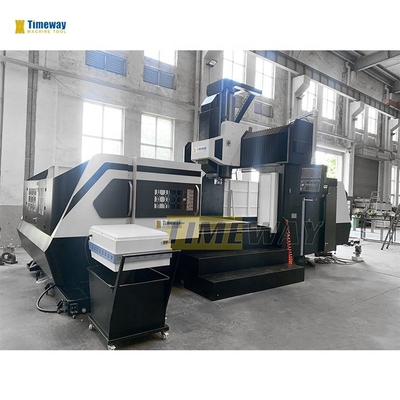

Large Size Gantry Type Milling Machine for Cross Travel Y 1000 and Table Travel X mm 1000
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $153,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 4300x2700x3300 | Weight (T): | 3 T |
| Table Size (mm): | 320x800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 1400 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 18.5 | Max. Table Load(kg): | 1500 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Width: | 900 |
| Table Length: | 1300/1600/1800/2000/2200 | T-slot (No./width/pitch): | 5/22/165 |
| Loading Capacity: | 1500/1700/2000/2500/3000 | Longitudinal Travel (X): | 1300/1600/1800/2000/2200 |
| Cross Travel (Y): | 1000 | Vertical Travel (Z): | 600 |
| Max. Height Of Workpiece: | 1400 | Distance From Spindle Nose To Table: | 680 |
| Spindle Taper & Diameter: | 180-780 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description

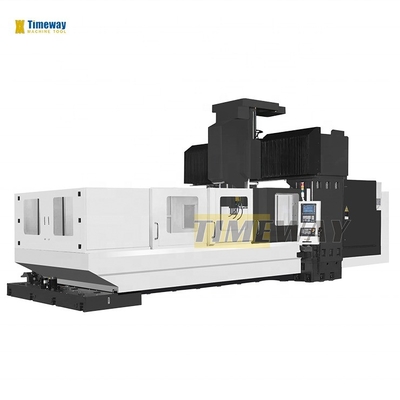

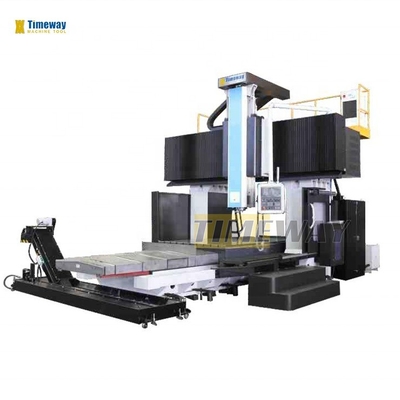

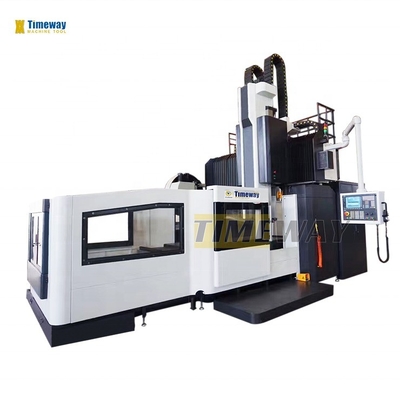

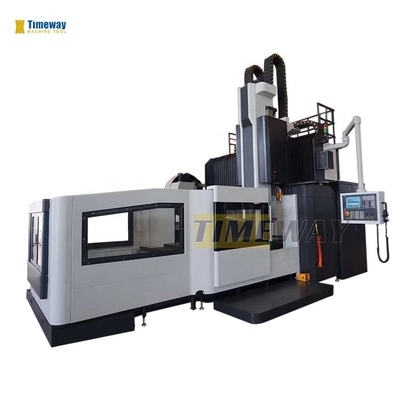

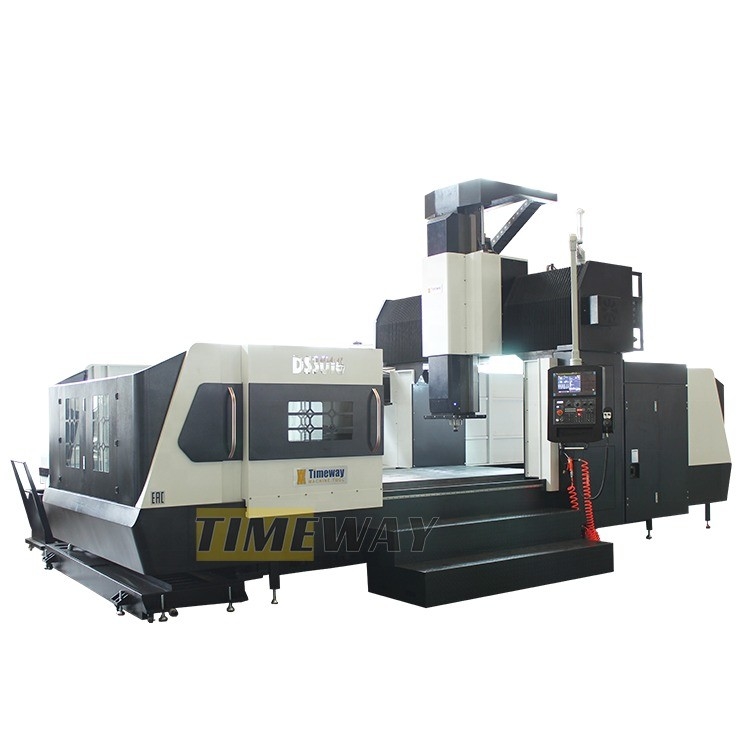

CNC Machining Center Large Size Gantry Type Milling Machine Gantry Machining Center
Products Description
Specification | Unit | GMC1000 | GMC1400 | GMC1600 |
Table width | mm | 900 | 1000 | 1200 |
Table length | mm | 1300/1600/1800/2000/2200 | 2000/2500/3000/3500 | 2000/3000/4000 |
T-slot (No./width/pitch) | mm | 5/22/165 | 7/22/150 | 7/22/170 |
Loading capacity | kg | 1500/1700/2000/2500/3000 | 3000/3500/4000/4500 | 3000/4000/5000 |
Longitudinal travel (X) | mm | 1300/1600/1800/2000/2200 | 2000/2500/3000/3500 | 2000/3000/4000 |
Cross travel (Y) | mm | 1000 | 1400 | 1650 |
Vertical travel (Z) | mm | 600 | 800 | 800 |
Gantry width | mm | 1400 | 1400 | 1650 |
Max. height of workpiece | mm | 680 | 935 | 1060 |
Distance from spindle nose to table | mm | 180-780 | 60-860 | 60-860 |
Spindle taper & diameter | - | BT40/Φ150 | BT50/Φ190 | BT50/Φ190 |
Spindle speed | rpm | 8000 | 6000 | 6000 |
X/Y/Z-axis feed speed | m/min | 10/10/10 | 10/10/10 | 10/10/10 |
X/Y/Z-axis rapid feed speed | m/min | 20/20/20 | 15/15/15 | 15/15/15 |
X/Y/Z-axis feed motor torque | N.m | 18/20/18 | 38/30/30 | 38/30/30 |
X/Y/Z-axis positioning accuracy | mm | 0.005 | 0.005 | 0.005 |
X/YZ-axis repetability accuracy | mm | 0.003 | 0.003 | 0.003 |
Main motor power | kw | 7.5 | 22 | 22 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) |
X/Y-axis guideway type | - | Linear | Linear | Linear |
Z-axis guideway type | - | Linear | Sliding | Sliding |
Machine weight | tons | 12/14/16/18/20 | 18/21/24/27 | 20/25/29 |
Machine length | mm | 4300/4900/5300/5700/6100 | 5400/6400/7400/8400 | 5400/7400/9400 |
Machine width & height | mm | 2700x3300 | 2700x3500 | 3300x3500 |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
