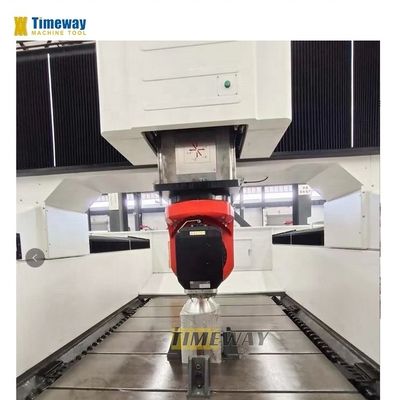

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
 |

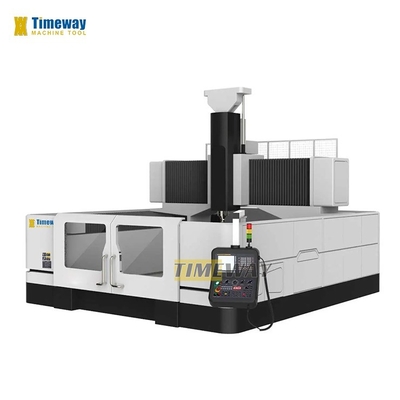

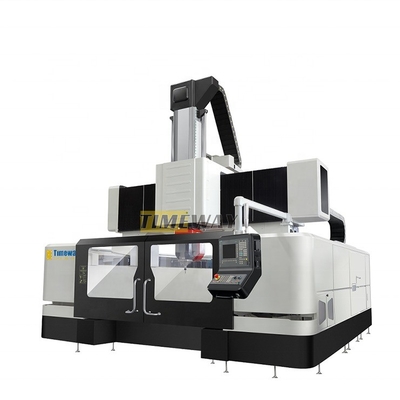

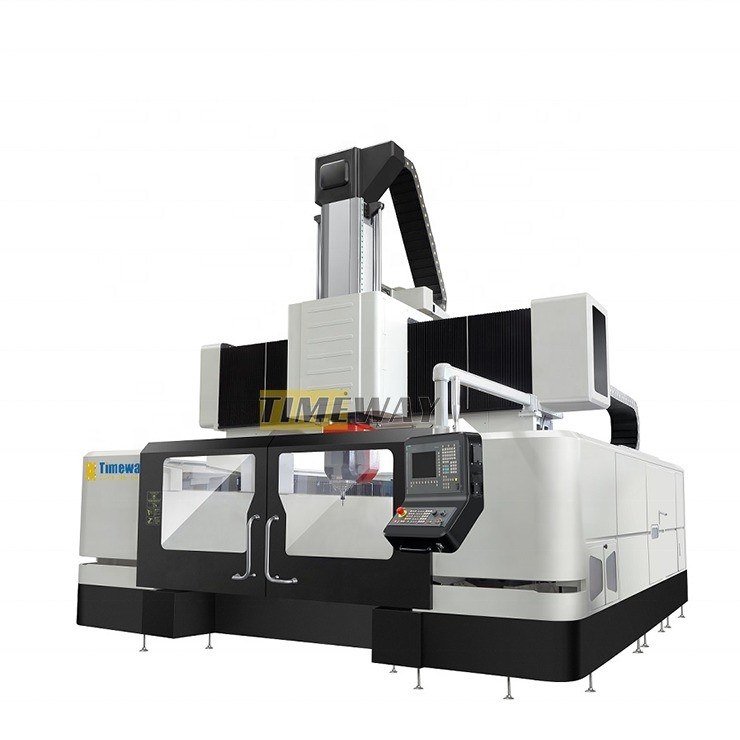

3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $200,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 3100x4500x3500 | Weight (T): | 14 T |
| Table Size (mm): | 1650x1400 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1600 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 26 | Max. Table Load(kg): | 8000 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 1600 |
| Y-axis Travel: | 1000 | Z-axis Travel: | 700 |
| Table Size: | 1650x1400 | Product Name: | Gantry Machining Center |
| Machine Type: | Gantry Machining Center | Number Of Axis: | 3 |
| Key Selling Points: | Competitive Price | Keywords: | Cnc Gantry Machining Center |
| Key Words: | Cnc Gantry Machining Center For Sale | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Gantry Machining Center
Products Description
Model | Unit | BGM1016 | BGM1020 | BGM2020 |
Max. weight of workpiece | kg/m2 | 8000 | 10000 | 10000 |
Gantry width | mm | 2140 | 2650 | 2650 |
Spindle Max. torque | Nm | 165 | 560 | 560 |
X-axis rapid feed speed | m/min | 24 | 20 | 20 |
Y-axis rapid feed speed | m/min | 24 | 20 | 20 |
Z-axis rapid feed speed | m/min | 16 | 16 | 16 |
Total power | kw | 45 | 45 | 45 |
Standard Accessories：
Optional Accessories：
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Positive Comments From Customers
Company Introduction
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

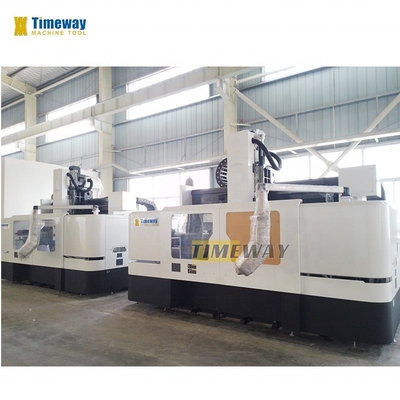

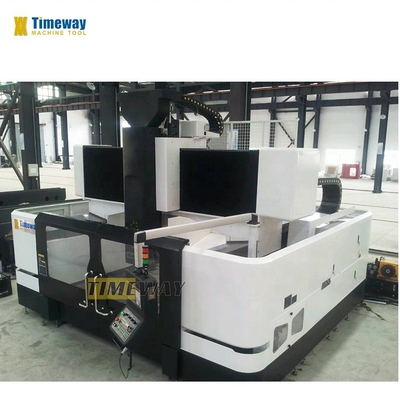

Factory Display：
Video Description
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
