The whole bed, column and worktable are cast in one piece, which ensures the rigidity of the lathe, and the internal stress is eliminated by secondary tempering after rough machining of the casting, and the stability of the pillow bed in the process of machining large molds. (10 tons/square, theoretically 16 tons/square)
 |
Customer's Requirement Voltage Bridge Gantry Machining Center for Precision Work
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $259,998.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 5900x5100x4400 | Weight (T): | 24 T |
| Table Size (mm): | 3680x2000 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 3000 |
| Table Travel (Y) (mm): | 2000 | Table Travel (Z) (mm): | 800 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 26 | Max. Table Load(kg): | 10000 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 3000 |
| Y-axis Travel: | 2000 | Z-axis Travel: | 800 |
| Table Size: | 3680x2000 | Number Of Axis: | 3 |
| Product Name: | CNC Machining Center | Machine Type: | Cnc Gantry Machining Center |
| Product Type: | Gantry Machining Center | Spindle Diameter: | 200 |
| Keywords: | Cnc Gantry Machining Center | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description

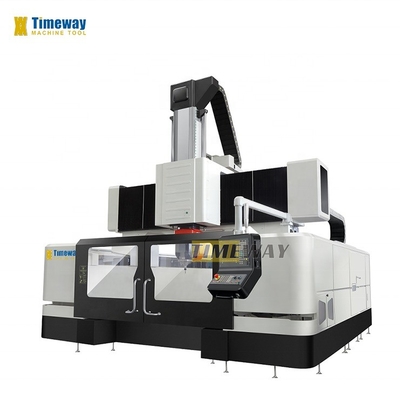

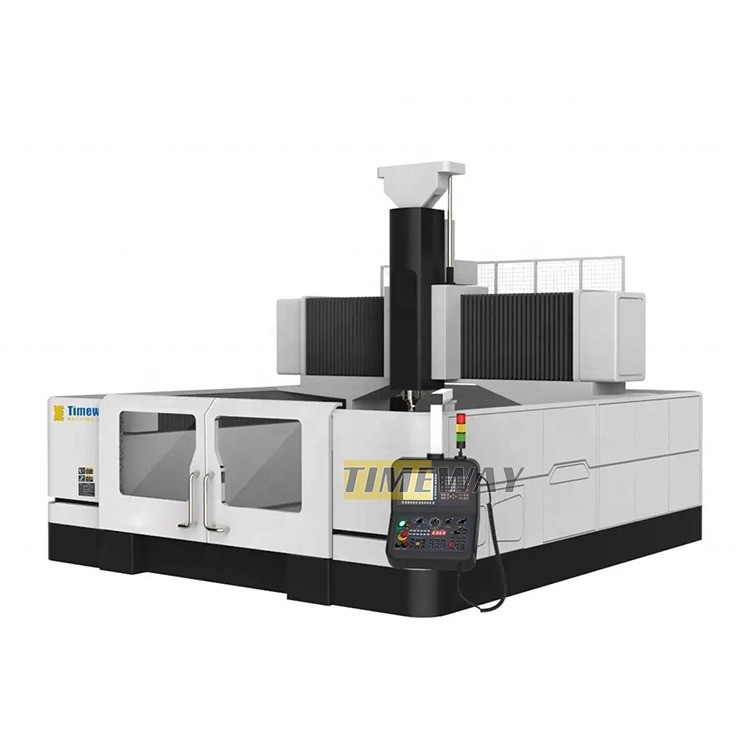

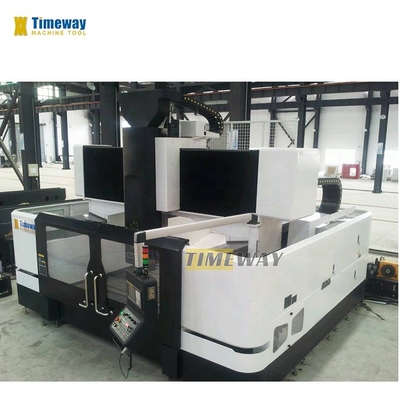

Gantry Machining Center
Products Description

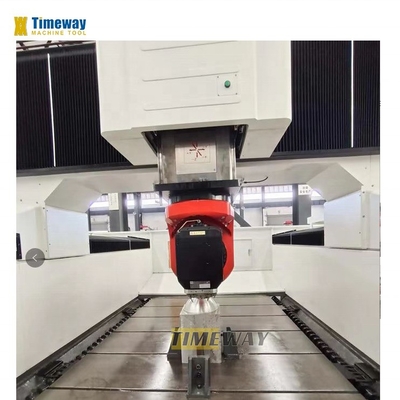

Loading large workpieces:
Technical Parameter：
Model | Unit | BGM3020 | BGM4020 | BGM5020 |
Gantry width | mm | 2650 | 2650 | 2650 |
Spindle diameter | mm | 200 | 200 | 200 |
Spindle speed | rpm | 6000 | 6000 | 6000 |
Spindle Max. torque | Nm | 560 | 560 | 560 |
X-axis feed speed | mm/min | 10000 | 10000 | 10000 |
Y-axis rapid feed speed | m/min | 20 | 20 | 20 |
Z-axis rapid feed speed | m/min | 16 | 16 | 16 |
1. Resin sand casting; | 1. The 4th axis wiring; |
2. X, Y rails adopts imported linear guideway, Z rails adopts sliding guideway; | 2. NC rotary table; |
3. X, Y, Z rails adopt stainless steel telescopic cover; | 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); |
4. Standard with belt driven spindle, optional for direct driven spindle; | 4. Circular Coolant Nozzle; |
5. Taiwan production pneumatic cylinder; | 5. Coolant through spindle (CTS); |
6. Taiwan ATC, carousel type and disc type are available as option; | 6. Spindle oil cooler; |
7. Imported bearings for leadsrews; | 7. Air conditioner (A/C) for electrical cabinet; |
8. Import coupling; | 8. Auto. Tool length measurement system; |
9. Headstock balancing system have heavy casting or nitrogen balance system as option; | 9. Auto. Workpiece measurement systems; |
10. Full enclosure; | 10. Screw type chip conveyor; |
11. Rigid tapping; | 11. Chain type chip conveyor; |
12. Spindle center air blast; | 12. High pressure water flush system; |
13. Work lamp; | 13. Safety door; |
14. Pilot lamp; | 14. Oil skimmer. |
15. USB and LAN interface; | |
16. Manual pulse generator (MPG); | |
17. Centralized automatic lubrication system. | |
18. Cooling system. | |
19. Heat exchanger for electrical cabinet ; | |
20. Leveling blocks & bolts; | |
21. Toolbox and tools; | |
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. |
Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
Positive Comments From Customers
Company Introduction

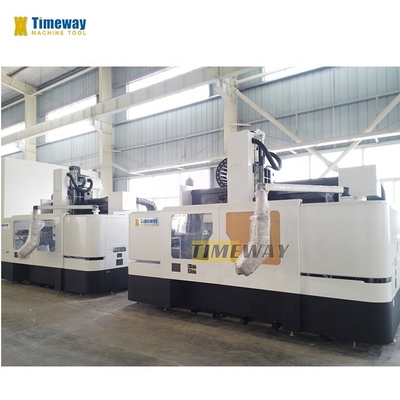

Factory Display：
