High Precision Gantry Type Milling Machine with 3 Axes and 0.008mm Repeatability X/Y/Z
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $159,998.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 4300x2700x3300 | Weight (T): | 3 T |
| Table Size (mm): | 320x800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 1400 |
| Positioning Accuracy (mm): | 0.04mm | Repeatability (X/Y/Z) (mm): | 0.008 |
| Spindle Motor Power(kW): | 18.5 | Max. Table Load(kg): | 1500 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customer's Requirement | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 320x800 |
| Number Of Axis: | 3 | X-axis Travel: | 1000 |
| Y-axis Travel: | 600 | Z-axis Travel: | 1400 |
| Product Name: | Gantry Machining Center | Machine Type: | Cnc Gantry Machining Center |
| Product Type: | Cnc Portal Milling Machine | Keywords: | Portal Milling Machine |
| Name: | Portal Milling Machine | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Philippines, Morocco, UAE, Colombia, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description

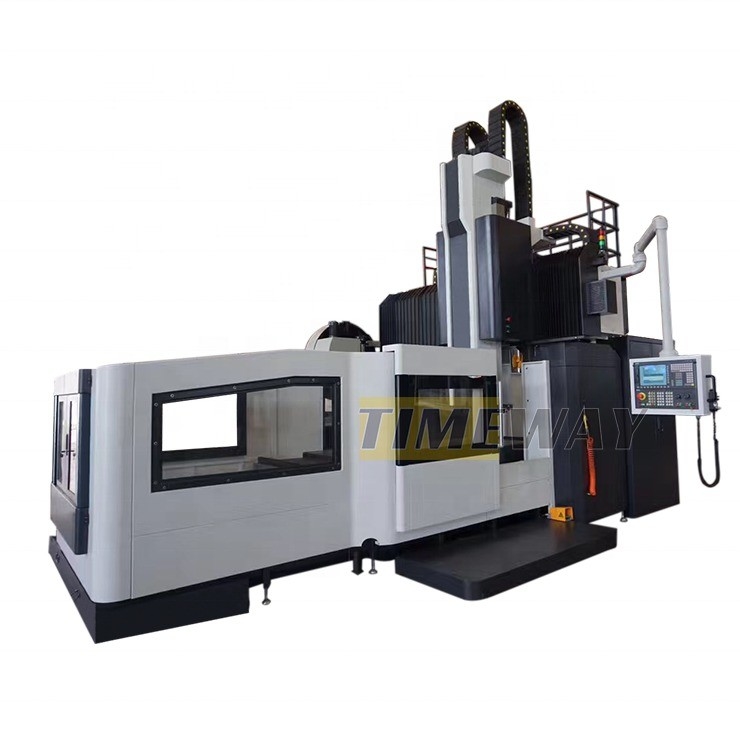

CNC Gantry Machining Center Portal Milling Machine
Products Description
Technical Parameter：
Specification | Unit | GMC1800 | GMC2200 | GMC2700 |
Table width | mm | 1600 | 2000 | 2300 |
T-slot (No./width/pitch) | mm | 9/22/180 | 9/22/200 | 11/28/200 |
Cross travel (Y) | mm | 1800 (2000) | 2200 (2700) | 2700 (3050) |
Vertical travel (Z) | mm | 1000 | 1000 | 1000 |
Gantry width | mm | 1800 | 2300 | 2700 |
Max. height of workpiece | mm | 1300 | 1400 | 1400 |
√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

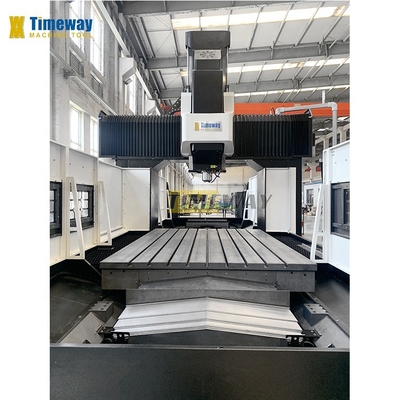

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Why Choose Us
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
