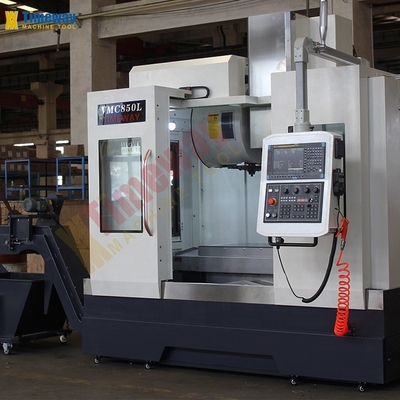

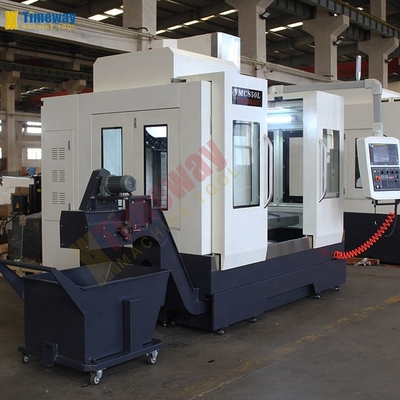

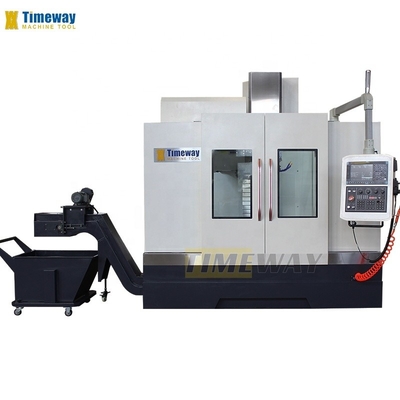

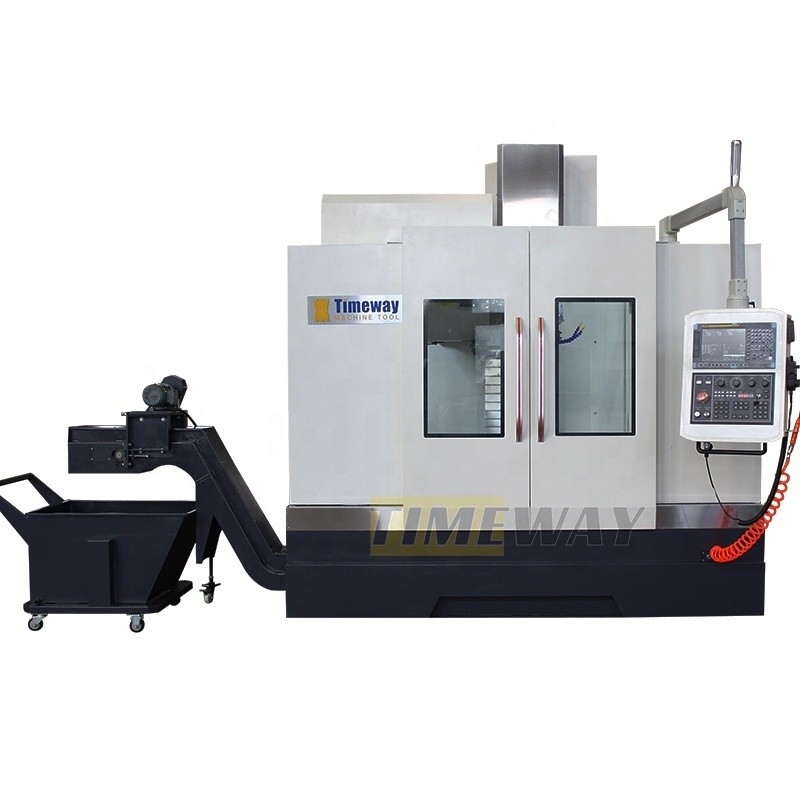

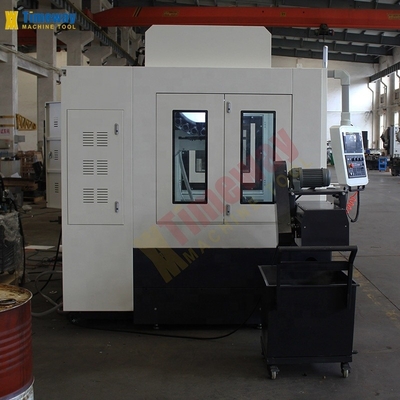

High Precision CNC Vertical Machining Center 4.2 T for Metal Processing Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800*2250*2600 Mm | Weight (T): | 4.2 T |
| Table Size (mm): | 1000*500 Mm | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 500 Mm |
| Positioning Accuracy (mm): | ±0.003 Mm | Repeatability (X/Y/Z) (mm): | ±0.003 Mm |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 Kw |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | 220/380 V |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Vertical Machining Center | Function: | Metal Machining |
| Keyword: | Vertical Machining Center | Model: | VMC850G |
| CNC Or Not: | CNC Machining Center | Table Size: | 1000*500 Mm |
| Number Of Axis: | 3 | X-axis Travel: | 800mm |
| Y-axis Travel: | 500mm | Loading Capacity: | 500 Kg |
| Showroom Location: | Egypt, Turkey, Germany, Saudi Arabia, Thailand, Chile, Bangladesh, South Africa, Kazakhstan, Japan | Core Components: | Bearing |
| Rapid Feed Speed(m/min): | 48/48/48 M/min | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Port: | China Port | ||
Product Description
Products Description
Vertical Machining Center
* Resin sand casting;
* X, Y, Z rails adopts imported linear guideway;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle, optional for direct driven spindle, gear head for VMC1060,VMC1270;
* Taiwan production pneumatic cylinder;
* Taiwan ATC, carousel type and disc type are available as option;
* Imported bearings for leadscrews;
* Imported coupling;
* Headstock balancing system have heavy casting or nitrogen balance system as option;
* Full enclosure;
* Rigid tapping;
* X, Y, Z rails adopts imported linear guideway;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle, optional for direct driven spindle, gear head for VMC1060,VMC1270;
* Taiwan production pneumatic cylinder;
* Taiwan ATC, carousel type and disc type are available as option;
* Imported bearings for leadscrews;
* Imported coupling;
* Headstock balancing system have heavy casting or nitrogen balance system as option;
* Full enclosure;
* Rigid tapping;
Specification | UNIT | VMC850G |

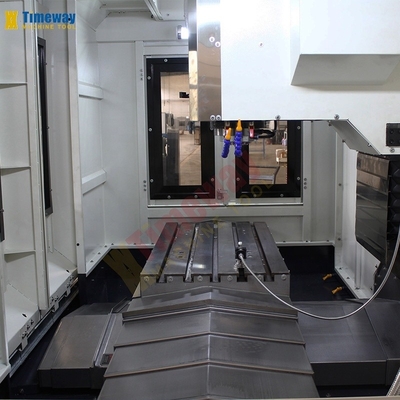

Worktable size (LxW) | mm | 1000×500 |
T-slot (No./width/pitch) | mm | 5-18-100 |
Loading capacity | kg | 500 |
Longitudinal travel (X) | mm | 800 |
Cross travel (Y) | mm | 500 |
Vertical travel (Z) | mm | 500 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 7.5/11 |
Tool magazine capacity | T | 24 (Disc) |
Machine weight | kg | 4200 |
Machine dimensions (LxWxH) | mm | 2800×2250×2600 |
· Spindle center air blast; · Work lamp;· Pilot lamp; · USB and LAN interface; · Manual pulse generator (MPG); · Centralized automatic lubrication system. · Cooling system. · Heat exchanger for electrical cabinet ; · Leveling blocks & bolts; · Toolbox and tools; · CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,MITSUBISHI, FAGOR, etc. | · The 4th axis wiring; · NC rotary table; · Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); · Circular Coolant Nozzle; · Coolant through spindle (CTS); · Spindle oil cooler; · Air conditioner (A/C) for electrical cabinet; · Auto. Tool length measurement system; · Auto. Workpiece measurement systems; · Screw type chip conveyor; · Chain type chip conveyor; · High pressure water flush system; · Safety door; · Oil skimmer. |
