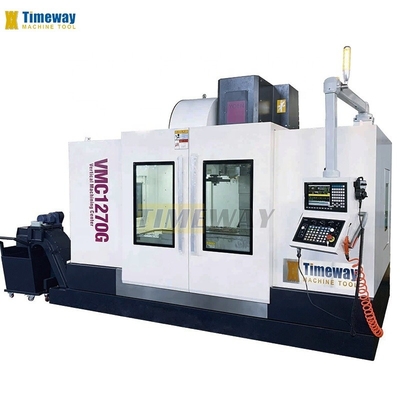

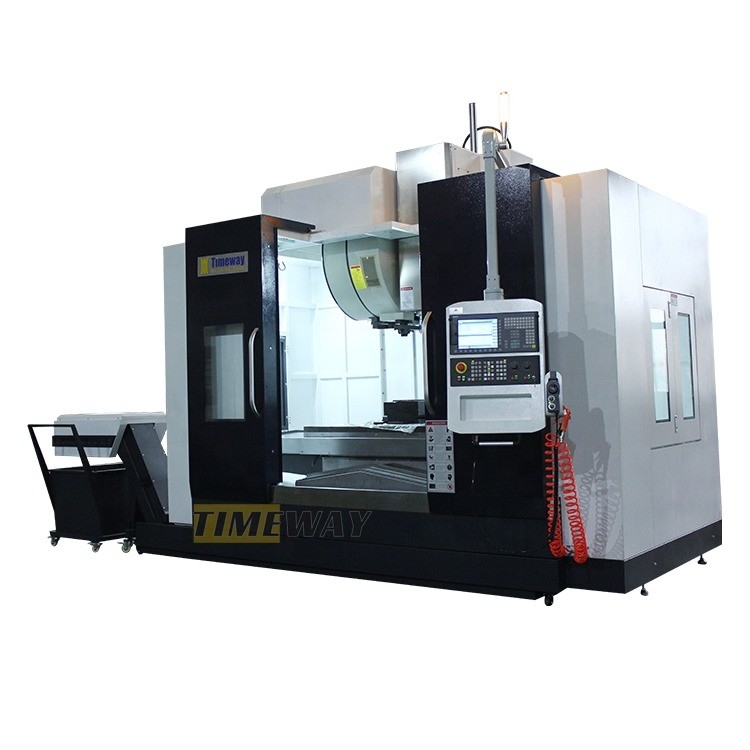

High Speed Metal Processing CNC Vertical Machining Center with 1200 mm Table Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-4 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-50 (155) |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820*2600*3100 Mm | Weight (T): | 9.5 T |
| Table Size (mm): | 1360*700 Mm | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1200 Mm |
| Table Travel (Y) (mm): | 700 Mm | Table Travel (Z) (mm): | 700 Mm |
| Positioning Accuracy (mm): | 0.003 Mm | Repeatability (X/Y/Z) (mm): | 0.03 Mm |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 Kw |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 0 - 24 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 220/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Vertical Machining Center |
| Keyword: | Vertical Machining Center | Function: | Metal Milling |
| Model: | VMC1370G | CNC Or Not: | CNC Machining Center |
| Table Size: | 1370*600 Mm | Number Of Axis: | 3 |
| Spindle Speed Range: | 6000 Rpm | X-axis Travel: | 1200mm |
| Y-axis Travel: | 700mm | Showroom Location: | Canada, France, Indonesia, Chile, UAE, South Africa, Kazakhstan, Tajikistan, Japan, Malaysia |
| Core Components: | Bearing | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Port: | China Port | ||
Product Description
Products Description
Vertical Machining Center

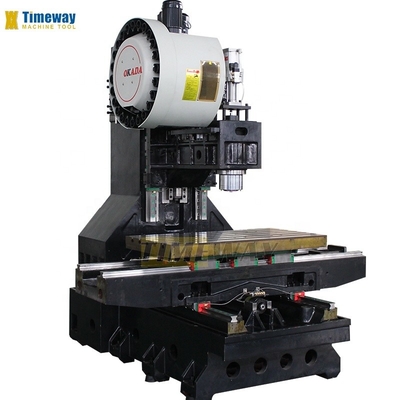

* Resin sand casting;
* X, Y, Z rails adopts imported linear guideway;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle, optional for direct driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC, carousel type and disc type are available as option;
* Imported bearings for leadscrews;
* Import coupling;
* Headstock balancing system have heavy casting or nitrogen balance system as option;
* Full enclosure;
* Rigid tapping
* X, Y, Z rails adopts imported linear guideway;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle, optional for direct driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC, carousel type and disc type are available as option;
* Imported bearings for leadscrews;
* Import coupling;
* Headstock balancing system have heavy casting or nitrogen balance system as option;
* Full enclosure;
* Rigid tapping
Specification | Unit | VMC1270G | VMC1370G | VMC1580G |

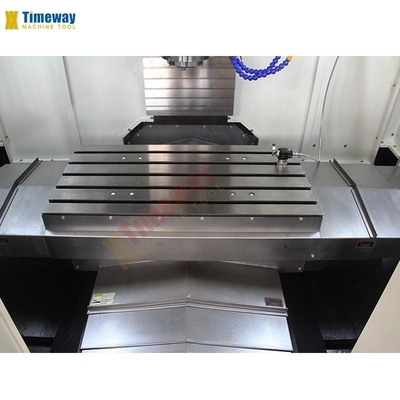

Worktable size (LxW) | mm | 1360×700 | 1360×700 | 1600×800 |
T-slot (No./width/pitch) | mm | 5-18-152.5 | 5-18-152.5 | 5-22-135 |
Loading capacity | kg | 1200 | 1200 | 1400 |
Longitudinal travel (X) | mm | 1200 | 1300 | 1500 |
Cross travel (Y) | mm | 700 | 700 | 800 |
Vertical travel (Z) | mm | 700 | 700 | 700 |
Spindle taper | – | BT-50 (155) | BT-50 (155) | BT-50 (155) |
Spindle speed | rpm | 6000 | 6000 | 6000 |
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) |
Machine weight | kg | 9500 | 10000 | 12000 |
Machine dimensions (LxWxH) | mm | 3820×2600×3100 | 3820×2600×3100 | 4100×2820×3610 |
· Spindle center air blast; · Work lamp;· Pilot lamp; · USB and LAN interface; · Manual pulse generator (MPG); · Centralized automatic lubrication system. · Cooling system. · Heat exchanger for electrical cabinet ; · Leveling blocks & bolts; · Toolbox and tools; · CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC，MITSUBISHI, FAGOR, etc. | · The 4th axis wiring; · NC rotary table; · Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); · Circular Coolant Nozzle; · Coolant through spindle (CTS); · Spindle oil cooler; · Air conditioner (A/C) for electrical cabinet; · Auto. Tool length measurement system; · Auto. Workpiece measurement systems; · Screw type chip conveyor; · Chain type chip conveyor; · High pressure water flush system; · Safety door; · Oil skimmer. |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
