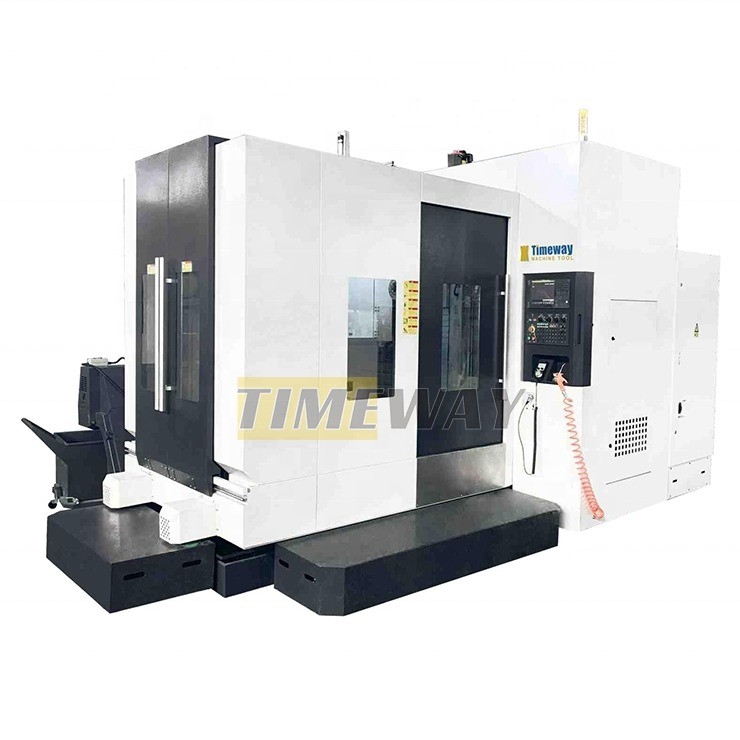

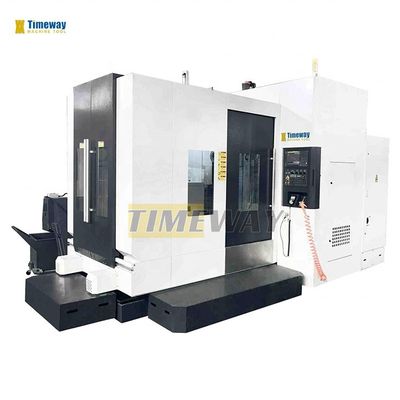

500*500 mm Table Size CNC Horizontal Machining Center with 24 Tool Magazine Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 3800*3200*3280 Mm | Weight (T): | 9.5 T |
| Table Size (mm): | 500*500 Mm | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 800 Mm | Table Travel (Z) (mm): | 800 Mm |
| Positioning Accuracy (mm): | 0.008 | Repeatability (X/Y/Z) (mm): | 0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 Kw |
| Max. Table Load(kg): | 800 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 3 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220/380 V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Machining Center |
| CNC Or Not: | CNC Systemn | Application: | Metal Machining Center |
| Model: | HMC500 | Table Size: | 500*500 Mm |
| Main Motor Power: | 11/15 Kw | Spindle Speed: | 8000 Rpm |
| Spindle Taper: | BT-40 | Machine Weight: | 9500 Kg |
| Overall Dimension (LxWxH): | 3800*3200*3280 Mm | Showroom Location: | Egypt, Germany, Indonesia, Spain, UAE, Algeria, South Africa, Kazakhstan, Ukraine, Tajikistan |
| Core Components: | Engine | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Rapid Feed Speed(m/min): | 24/24/24 M/min | Port: | China Port |
Product Description
Products Description
* Resin sand casting;
* X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching plastic sliding guide rail pair for HMC630;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle;
* Taiwan production pneumatic cylinder;

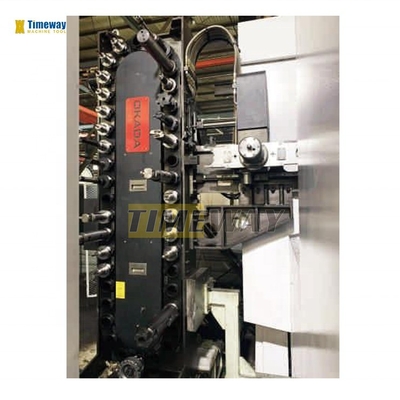

* Taiwan ATC,disc type and chain type are available as option;
* Imported bearings for leadscrews;
* Imported coupling;
* Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
* X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching plastic sliding guide rail pair for HMC630;
* X, Y, Z rails adopt stainless steel telescopic cover;
* Standard with belt driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC,disc type and chain type are available as option;
* Imported bearings for leadscrews;
* Imported coupling;
* Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
Specification | Unit | HMC500 |
Machine structure | mm | Positive T-type |
X-axis travel | mm | 800 |
Y-axis travel | mm | 800 |
Z-axis travel | mm | 800 |
B-axis servo motor torque (FANUC) | mm | Bis12 |
Table size | mm | 500×500 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | – | 5-18-100 |
Table rotation speed | rpm | 16.6 |
Loading capacity | kg | 800 |
Locking force (35kg / cm2) | kg/m | 5000 |
Distance spindle center to table | mm | 50-850 |
Distance spindle nose to table center | mm | 125-925 |
Spindle taper | – | BT-40 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 11/15 |
X/Y/Z-axis servo motor (FANUC) | – | Bis30/Bis30/Bis30 |
X/Y/Z-axis cutting feed speed | m/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 |
X/Y/Z-axis rails type | – | Linear |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | ° | ±10° |
ATC capacity (style) | tools | 24 (Disc) |
Tool change time (tool to tool) | sec | 2.7 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ125 |
Max. tool length | mm | 300 |
Power supply | Kva | 30 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 9500 |
Overall dimension (LxWxH) | mm | 3800×3200×3280 |

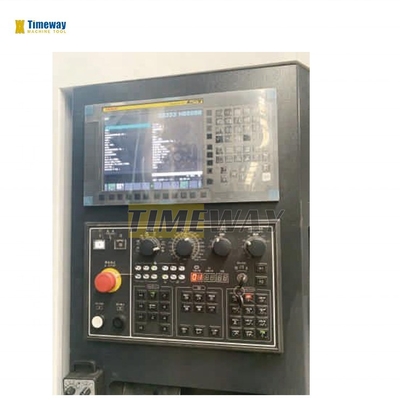

· NC rotary worktable (B axis); · Work lamp;· Pilot lamp; · USB and LAN interface; · Manual pulse generator (MPG); · Centralized automatic lubrication system. · Cooling system. · Heat exchanger for electrical cabinet ; · Leveling blocks & bolts; · Toolbox and tools; · CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | · ZF or BF reducer; · Circular Coolant Nozzle; · Coolant through spindle (CTS); · Spindle oil cooler; · Air conditioner (A/C) for electrical cabinet; · Auto. Tool length measurement system; · Auto. Workpiece measurement systems; · Optional with sprial type chip conveyor and chain type chip conveyor. |
