Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | wooden cases |
| Supply Ability: | 40 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 4285*3120*3280 Mm | Weight (T): | 8 T |
| Table Size (mm): | 630*630 Mm | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 Mm |
| Table Travel (Y) (mm): | 750 Mm | Table Travel (Z) (mm): | 600 Mm |
| Positioning Accuracy (mm): | 0.008 Mm | Repeatability (X/Y/Z) (mm): | 0.005 Mm |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 Kw |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Machining Center |
| Application: | Metal Machining | Key Word: | Horizontal Machining Center |
| CNC Or Not: | CNC Systemn | Number Of Axis: | 3 |
| X-axis Travel: | 1000 | Y-axis Travel: | 750 |
| Table Size: | 630*630 Mm | Product Name: | Cnc Horizontal Machining Center |
| Machine Weight: | 8000 Kg | Showroom Location: | Egypt, Canada, France, Germany, Indonesia, Pakistan, Thailand, Morocco, Colombia, South Africa, Uzbekistan, Japan |
| Core Components: | Bearing | Rapid Feed Speed(m/min): | 24/15/24 M/min |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Port: | China Port |
Product Description
Products Description

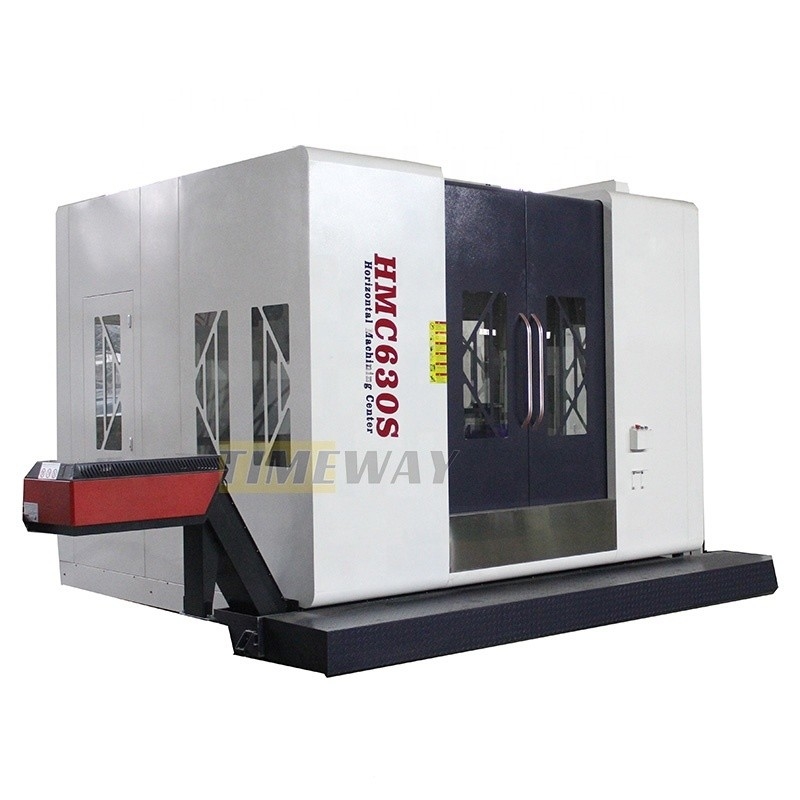

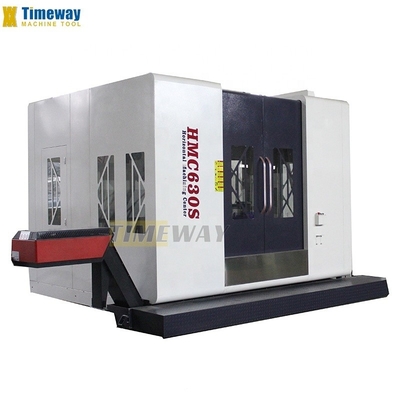

Horizontal Machining Center
Specification | Unit | HMC630S | HMC800S |
Machine structure | – | Cross-type | Cross-type |
X-axis travel | mm | 1000 | 1800 |
Y-axis travel | mm | 750 | 1400 |
Z-axis travel | mm | 600 | 900 |
Table size | mm | 630×630 | 800×800 |
Loading capacity | kg | 1200 | 2000 |
Spindle taper | – | BT-50 | BT-50 |
Spindle speed | rpm | 6000 | 6000 |
Main motor power | kw | 15/18.5 | 15/18.5 |
ATC capacity (style) | tools | 24 (Disc) | 40 (Chain) |
Tool change time (tool to tool) | sec | 5 | 5 |
Machine weight | kg | 800 | 12000 |
Overall dimension (LxWxH) | mm | 4285×3120×3280 | 6200×4800×3800 |
· NC rotary worktable (B axis); · Work lamp;· Pilot lamp; · USB and LAN interface; · Manual pulse generator (MPG); · Centralized automatic lubrication system. · Cooling system. · Heat exchanger for electrical cabinet ; · Leveling blocks & bolts; · Toolbox and tools; · CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | · ZF or BF reducer; · Circular Coolant Nozzle; · Coolant through spindle (CTS); · Spindle oil cooler; · Air conditioner (A/C) for electrical cabinet; · Auto. Tool length measurement system; · Auto. Workpiece measurement systems; · Optional with sprial type chip conveyor and chain type chip conveyor. |
Positive Comments From Customers
Company Introduction

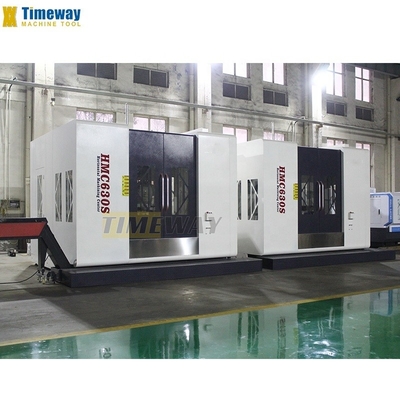

Factory Display：
