Metal Machining CNC Horizontal Machining Center with 630x630mm Table Size Online
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Weight (T): | 11 T | Table Size (mm): | 630x630 Mm |
| CNC Control System: | GSK, FANUC, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1050 Mm | Table Travel (Y) (mm): | 750 Mm |
| Table Travel (Z) (mm): | 900 Mm | Positioning Accuracy (mm): | 0.01 Mm |
| Repeatability (X/Y/Z) (mm): | 0.006 Mm | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 15/22 Kw | Max. Table Load(kg): | 950 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Voltage: | 220/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Machining Center |
| Application: | Metal Machining | Product Name: | Centro De Usinagem Cnc |
| Key Word: | Machining Center | Table Size: | 630x630mm |
| Number Of Axis: | 3 | X Axis Travel: | 1050 Mm |
| Y Axis Travel: | 750 Mm | Z Axis Travel: | 900 Mm |
| Machine Weight: | 11000 Kg | Showroom Location: | Egypt, Canada, France, Indonesia, Spain, Colombia, South Africa, Kazakhstan, Ukraine, Tajikistan, Japan, Malaysia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 45/45/45 M/min |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Port: | China Port |
Product Description
Products Description

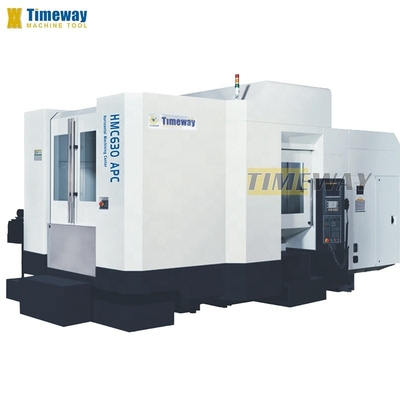

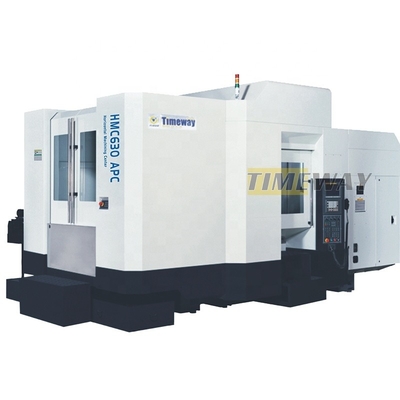

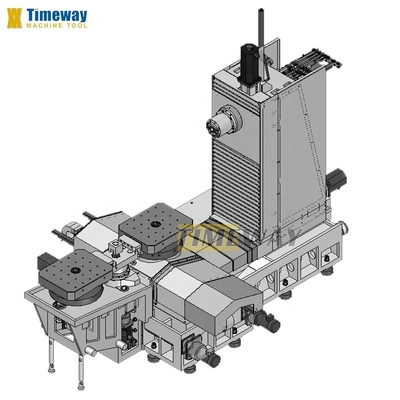

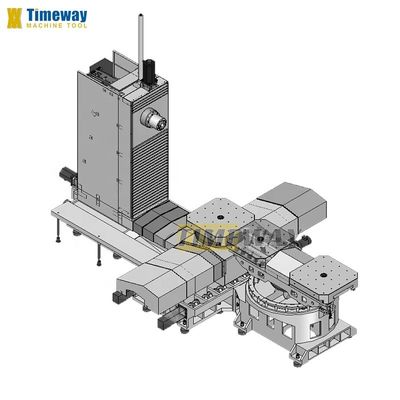

Horizontal Machining Center
* Resin sand casting;
* Adopt Taiwan precision linear guideway;
* X, Y, Z rails adopt telescopic cover for guideways;
* Standard with belt driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC,disc type and chain type are available as option;
* Imported bearings for leadscrews;
* Import coupling;
* Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
* Adopt Taiwan precision linear guideway;
* X, Y, Z rails adopt telescopic cover for guideways;
* Standard with belt driven spindle;
* Taiwan production pneumatic cylinder;
* Taiwan ATC,disc type and chain type are available as option;
* Imported bearings for leadscrews;
* Import coupling;
* Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
Specification | Unit | HMC500 APC | HMC630 APC | HMC800 APC |
Wortable size | mm | 500x500 | 630x630 | 800x800 |
Worktable number | pcs | 2 | 2 | 2 |
Worktable indexing | ° | 0.001° | 0.001° | 1° |
T-slot of worktable (No.-sizexdistance) | – | 24xM16 | 24xM16 | 24xM16 |
Max. swing of workpiece | mm | 700 | 820 | 1600 |
Worktable rotation speed (B) | rpm | 16.6 | 10 | 10 |
Worktable loading capacity | kg | 500x2 (single: 400) | 950 | 1500 |
X axis travel | mm | 800 | 1050 | 1400 |
Y axis travel | mm | 800 | 750 | 1000 |
Z axis travel | mm | 800 | 900 | 1000 |
Spindle taper | – | BT50 | BT50 | BT50 |
Max. spindle speed | rpm | 6000 | 6000 | 6000 |
ATC style/station | – | 24 (Disc) | 60 (Chain) | 60 (Chain) |
Machine weight | kg | 7500 | 11000 | 18000 |
· Exchangeable worktable; · Work lamp;· Pilot lamp; · USB and LAN interface; · Manual pulse generator (MPG); · Centralized automatic lubrication system. · Cooling system. · Heat exchanger for electrical cabinet ; · Leveling blocks & bolts; · Toolbox and tools; · CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | · ZF or BF reducer; · Circular Coolant Nozzle; · Coolant through spindle (CTS); · Spindle oil cooler; · Air conditioner (A/C) for electrical cabinet; · Auto. Tool length measurement system; · Auto. Workpiece measurement systems; · Continuous indexing station worktable; · X, Y, Z, B axis optional with high precision grating ruler; · NC rotary worktable (B axis), continuous indexing angle 1° or 0.001° for option; · Optional with sprial type chip conveyor and chain type chip conveyor |
