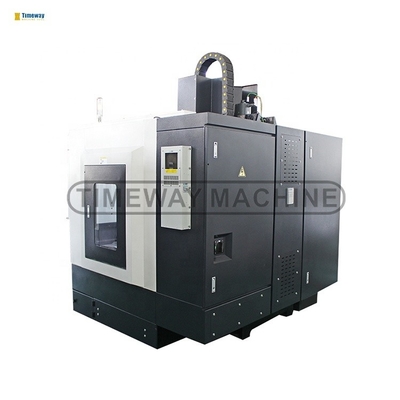

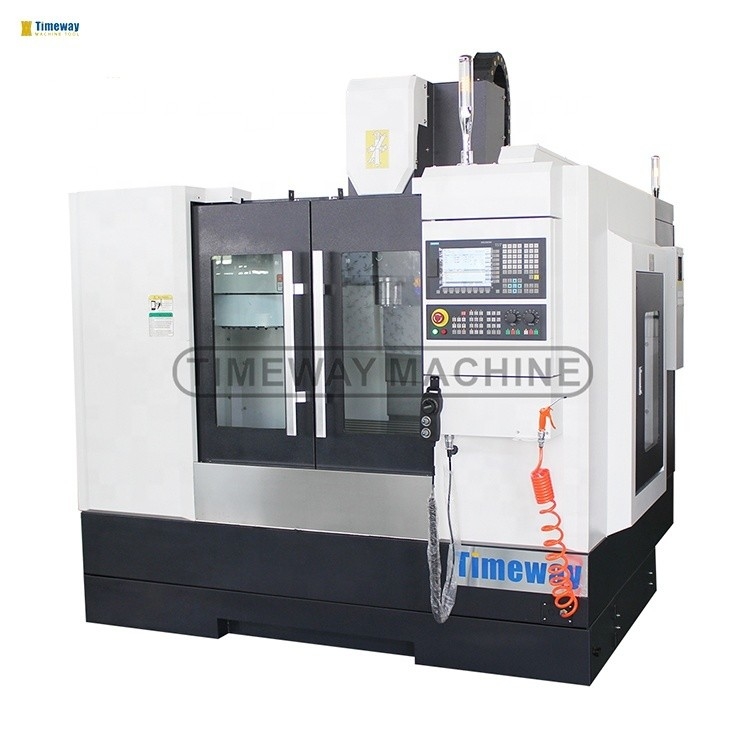

500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2800x2350x2600 | Weight (T): | 4.6 T |
| Table Size (mm): | 1000*500 | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens, DELEM |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Max. Table Load(kg): | 600 Kg | Feed Speed(mm/min): | 0 - 1500 Mm/min |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 20, 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | As Customer's Requirements | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | T-slot: | 5-18-90 |
| Loading Capacity: | 600kg | X-axis Travel: | 800mm |
| Y-axis Travel: | 500mm | Z-axis Travel: | 500mm |
| Spindle Taper: | BT-40 | Spindle Speed: | 8000rpm |
| Power Capacity: | 18kva | Guideway Type: | Sliding |
| Machine Weight: | 4600kg | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Egypt, United Kingdom, United States, France, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, South Korea, Chile, UAE, Ukraine | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15 | ||
Product Description
Products Description
Specification | Unit | VMC850 | VMC1060 | VMC1270 |

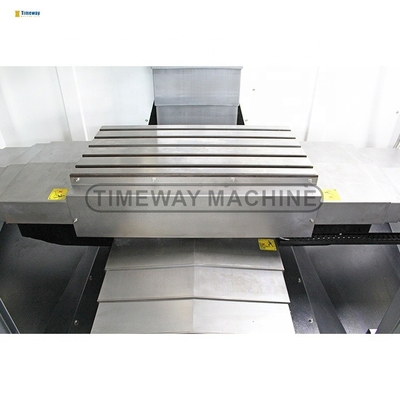

Worktable size (LxW) | mm | 1000x500 | 1200x600 | 1360x700 |
T-slot (No./width/pitch) | mm | 5/18/90 | 5/18/110 | 5/18/152.5 |
Loading capacity | kg | 600 | 800 | 1200 |
Longitudinal travel (X) | mm | 800 | 1000 | 1200 |
Cross travel (Y) | mm | 500 | 600 | 700 |
Vertical travel (Z) | mm | 500 | 600 | 700 |
Distance from spindle nose to table | mm | 110-610 | 120-720 | 140-840 |
Distance from spindle center to column | mm | 550 | 655 | 785 |

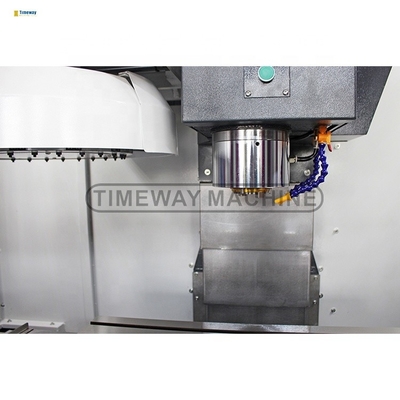

Spindle taper | - | BT40 | BT40 | BT40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 | 15/15/15 | 15/15/15 |
X/Y/Z-axis positioning accuracy | mm | 0.01 | 0.01 | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.008 | 0.008 | 0.008 |
Main motor power | kw | 7.5/11 | 11/15 | 15/18.5 |
Air pressure source | kg/cm2 | 6-8 | 6-8 | 6-8 |
Power capacity | Kva | 20 | 25 | 30 |

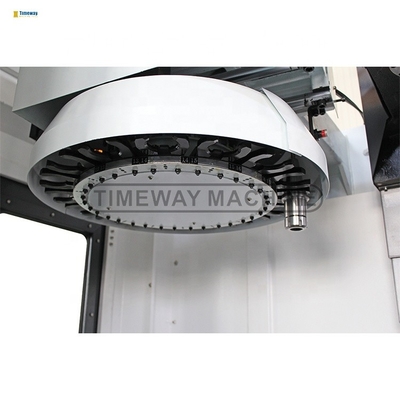

Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Sliding | Sliding | Sliding |
Machine weight | kg | 4600 | 6300 | 10000 |
Machine dimensions (LxWxH) | mm | 2800x2350x2600 | 3200×2560×2960 | 3820×2600×3100 |

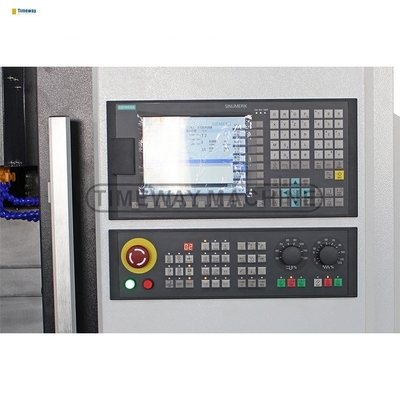

· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
