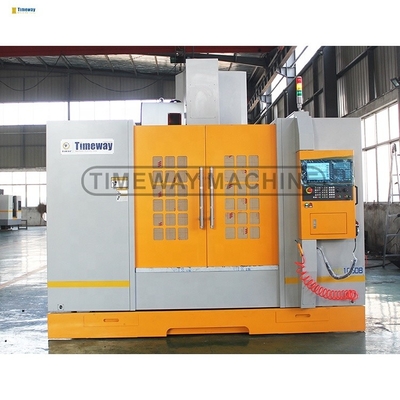

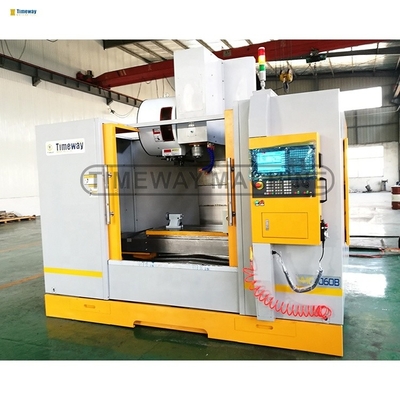

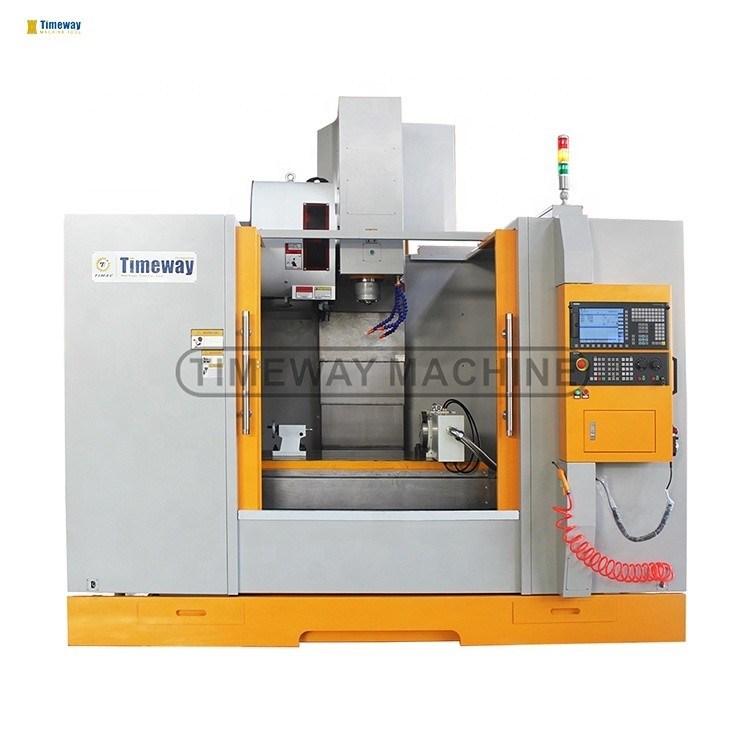

CNC Vertical Machining Center With FANUC Controller ±0.008 Positioning Accuracy mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3200x2560x2960 | Weight (T): | 6.3 T |
| Table Size (mm): | 1200*600 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 |
| Max. Table Load(kg): | 800 Kg | Feed Speed(mm/min): | 0 - 1500 Mm/min |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | Customized | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | COLOR: | Custom-made |
| Product Name: | CNC Vertical Machining Center | Application: | Metal Processing |
| CNC Or Not: | CNC Systemn | CNC Controller: | GSK KND SIEMENS FANUC MITSUBISHI |
| Model: | VMC1060 | Spindle Speed: | 8000 Rpm |
| Guideway Type: | Sliding | Tool Magazine: | 24T |
| After-sales Service Provided: | Online Support | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Ukraine, Nigeria, Uzbekistan | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15 | ||
Product Description
Products Description
Specification | Unit | VMC1060 |
Worktable size (LxW) | mm | 1200x600 |
T-slot (No./width/pitch) | mm | 5/18/110 |
Loading capacity | kg | 800 |
Longitudinal travel (X) | mm | 1000 |
Cross travel (Y) | mm | 600 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 120-720 |
Distance from spindle center to column | mm | 655 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.008 |
Main motor power | kw | 11/15 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 25 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Sliding |
Machine weight | kg | 6300 |
Machine dimensions (LxWxH) | mm | 3200x2560x2960 |
· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
