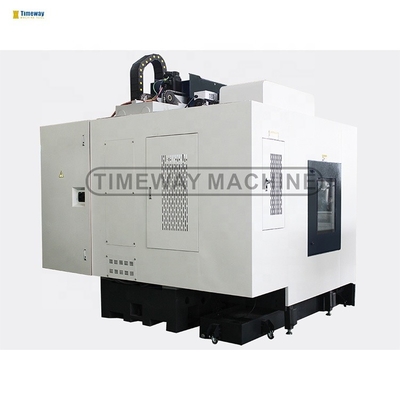

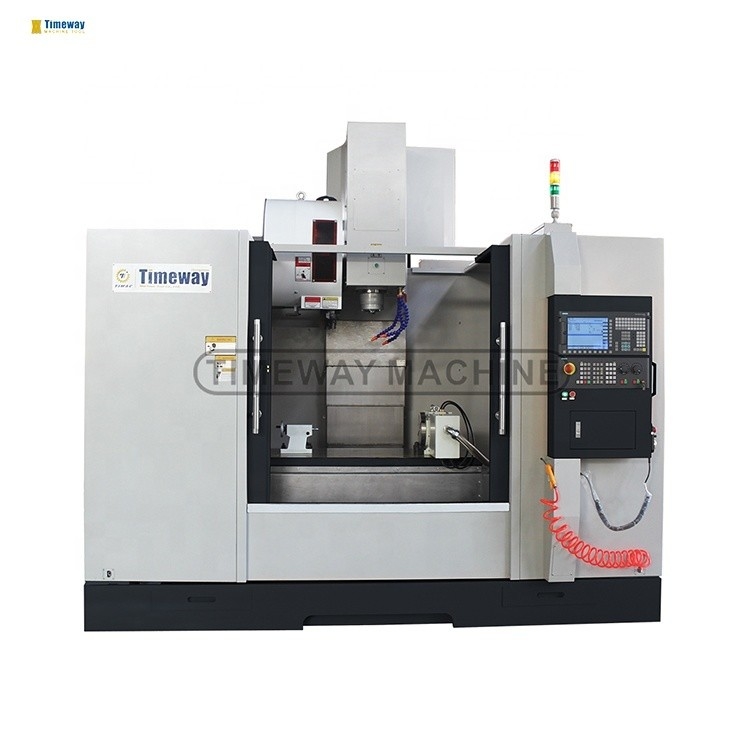

0 6000 r.p.m Spindle Speed CNC Vertical Machining Center with FANUC Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40, BT40 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2600x3100 | Weight (T): | 10 T |
| Table Size (mm): | 1360x700 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1200 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 0 - 2400 Mm/min |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | AS CUSTOMER'S REQUIREMENTS | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Color: | Custom-made |
| After-sales Service Provided: | Online Support | Name: | Vertical Machine Center CNC Machine |
| Precision: | 0.006mm | Model: | VMC1270L |
| CNC System: | FANUC SEIMENS KND GSK | Processing Type: | Metal Material |
| Spindle Speed: | 6000 Rpm | Tool Magazine: | 24 Tools Manipulator |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Egypt, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Ukraine, Nigeria |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 24 |
Product Description
Products Description
Specification | Unit | VMC1270L |
Worktable size (LxW) | mm | 1360x700 |
T-slot (No./width/pitch) | mm | 5/18/152.5 |
Loading capacity | kg | 1200 |
Longitudinal travel (X) | mm | 1200 |
Cross travel (Y) | mm | 700 |
Vertical travel (Z) | mm | 700 |
Distance from spindle nose to table | mm | 140-840 |
Distance from spindle center to column | mm | 785 |
Spindle taper | - | BT50(155) |

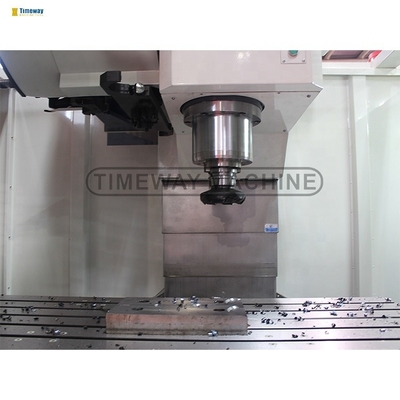

Spindle speed | rpm | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/15 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/Y/Z-axis repositioning accuracy | mm | 0.006 |
Main motor power | kw | 15/18.5 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 30 |

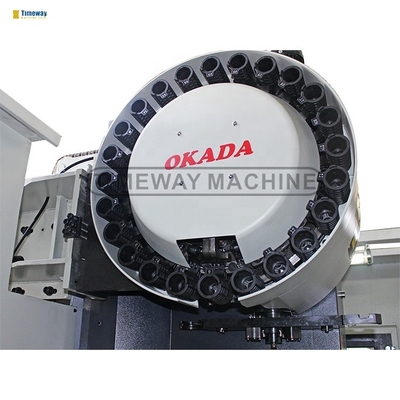

Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X/Y: Linear; Z: Sliding |
Machine weight | kg | 10000 |
Machine dimensions (LxWxH) | mm | 3820×2600×3100 |

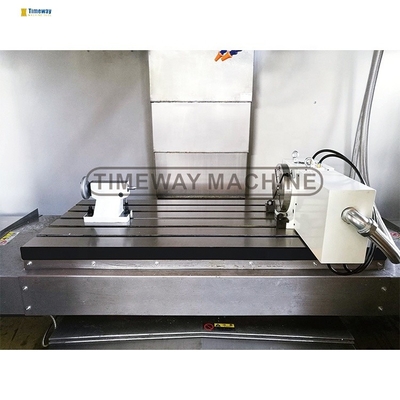

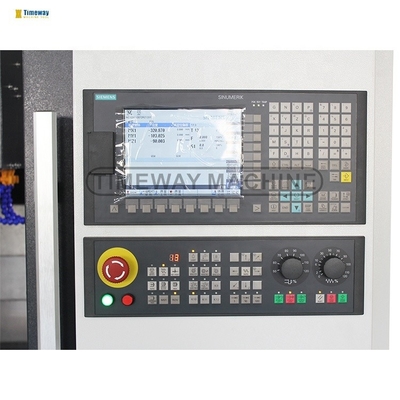

· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
