s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 4285x3120x3280mm | Weight (T): | 8 T |
| Table Size (mm): | 630x630 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 750 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 0 - 2400 Mm/min |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | CUSTOMIZED | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | 3-axis Horizontal Machining Center |
| Machine Type: | Cnc Horizontal Machining Center | Table Size: | 630x630mm |
| Processing: | CNC Machining+milling | Number Of Axis: | 3 |
| CNC Controller: | Fanuc Siemens Syntec GSK KND | X-axis Travel: | 1000mm |
| Y-axis Travel: | 750mm | Color: | Custom-made |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Brazil, Peru, Indonesia, Pakistan, India, Russia, Thailand, Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 24/15/24 |
| Port: | China Port | ||
Product Description
Products Description

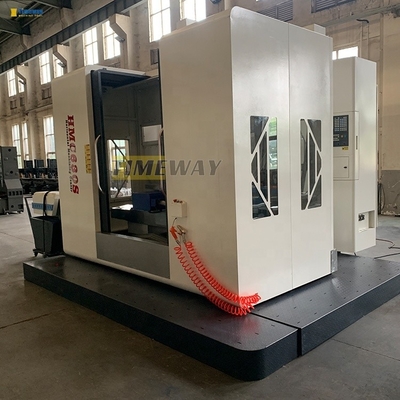

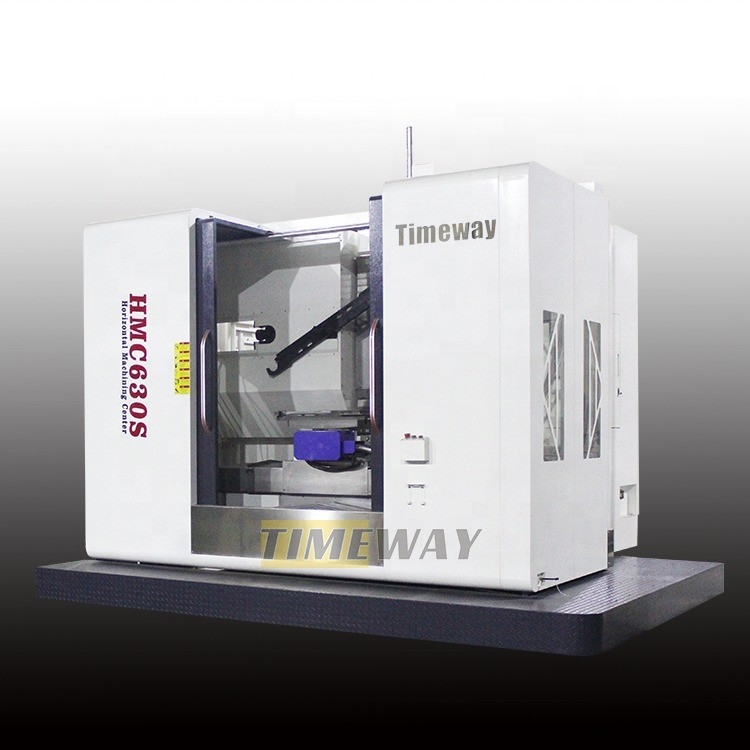

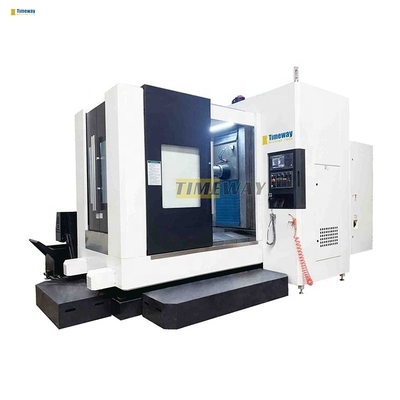

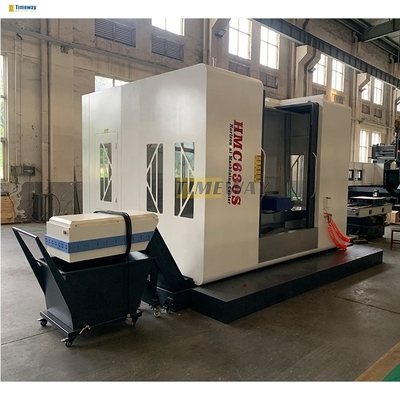

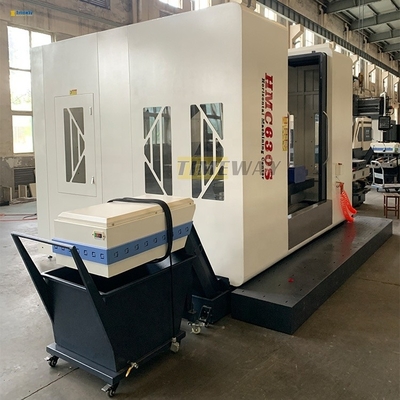

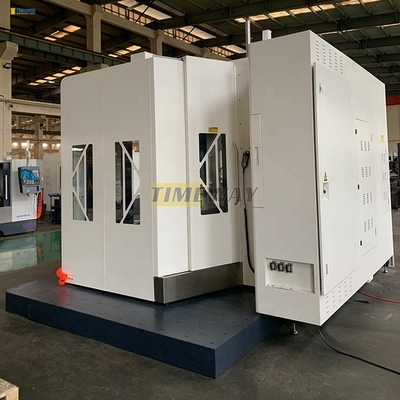

CNC Horizontal Machining Center
Specification | Unit | HMC500S | HMC630S | HMC800S |
Machine structure | - | Cross type | Cross type | Cross type |
X-axis travel | mm | 800 | 1000 | 1800 |
Y-axis travel | mm | 600 | 750 | 1400 |
Z-axis travel | mm | 500 | 600 | 900 |
B-axis servo motor torque(FANUC) | - | 8 | 15 | 20 |
Table size | mm | 500x500 | 630x630 | 800x800 |
Table indexing | ° | 1°x360 | 1°x360 | 1°x360 |
T-slots (No./width/pitch) | - | 5-14-80 | 5-18-122 | 5-22-165 |
Table rotation speed | rpm | 11.1 | 11.1 | 11.1 |
Loading capacity | kg | 600 | 1200 | 2000 |
Spindle taper | - | BT40 | BT50 | BT50 |
Spindle speed | rpm | 8000 | 6000 | 6000 |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 |
X/Y/Z-axis repositioning accuracy | mm | 0.005 | 0.005 | 0.005 |
ATC capacity (style) | tools | 24(Disc) | 24(Disc) | 40(Chain) |
Tool change time (tool to tool) | sec | 2.7 | 5 | 5 |
Machine weight | kg | 5500 | 8000 | 12000 |
Machine dimensions (LxWxH) | mm | 3500x2900x3280 | 4285×3120×3280 | 6200×4800×3800 |
· SIEMENS 808D control · Manual pulse generator (MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · NC rotary table · Heat exchanger · Tool & tool box · Operator manual(English) | · ZF or BF reducer · Circular coolant nozzle · Coolant through spindle (CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Chip conveyor (opt.: sprial type/chain type) |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
